The lock case and cylinder (not supplied) must first be fitted
to the door, ensuring that a 22-24 mm diameter hole is
drilled for the follower (As shown on the template provided).
Slide the spindle through the lock to allow the template to
locate over it. Ensure that the template is square to the door
edge by using the top and bottom ruler scales.
Mark the 2 x 10 mm, 1 x 16 mm holes. Remove the template
and repeat the procedure for the other side.
Installing the hardware

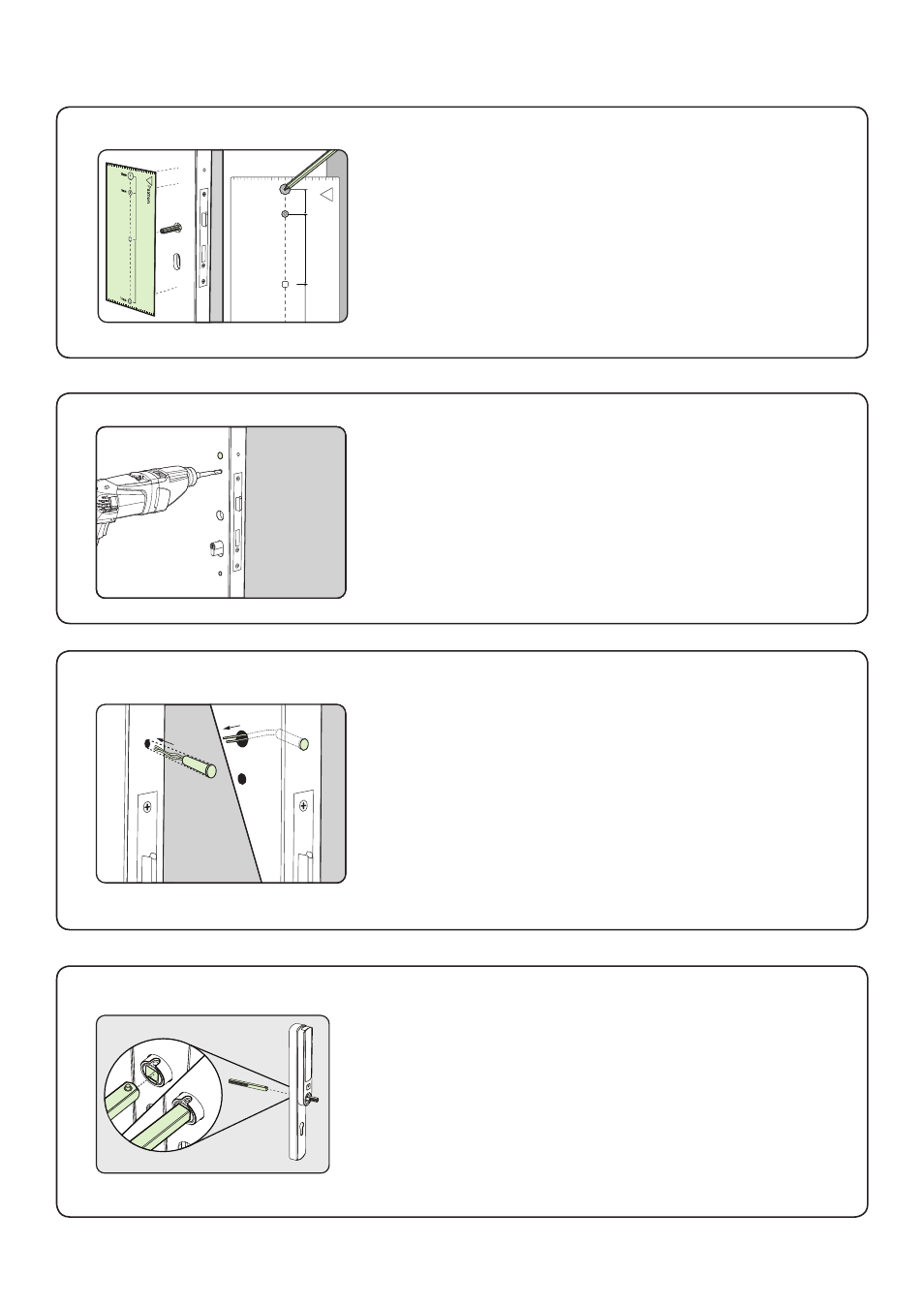

Step 1 - Marking out
Step 2 - Drilling
Remove the lock if required and drill the 2 x 10 mm holes
for the mounting screws and 1 x 16 mm hole for the wiring
harness.
To ensure accuracy you should drill these holes from both
sides of the door towards the centre. This also avoids the risk
of damaging the door face when the drill breaks through.
Step 3 - Contact switch (optional)
If a contact switch is to be fitted, an additional hole is
required in the edge of the door.
Drill a hole of the required size to receive the switch
assembly. This should intersect the 16 mm hole drilled
previously to take the wiring harness.
Feed the contact wires through the door to exit on the inside.
Ш 16
37
105
Ш 10
Pax
ton
70
60
50
40
30
10
5
5
15
15
0
20
25
25
35
35
45
55
65
75
45
55
65
75
10
20
30
40
60
70
50
The spindle is locked into the front lock assembly by means
of a spring loaded pin.
Ensure that the spindle pin and the hole in the square drive
are in alignment before depressing the pin and sliding the
bar into the assembly. The pin will then latch into the hole
securing the spindle in place.
Step 4 - Attach the Spindle
