Pavement Ends 51202 Replay - Manual (Page 8)

51202 pg 8 0612 Rev. B
Step Twenty-three
T
O
F
OLD THE
T
OP
D
OWN
R
EMOVE
Q
UARTER
P
ANELS AND
R
EAR
W
INDOW

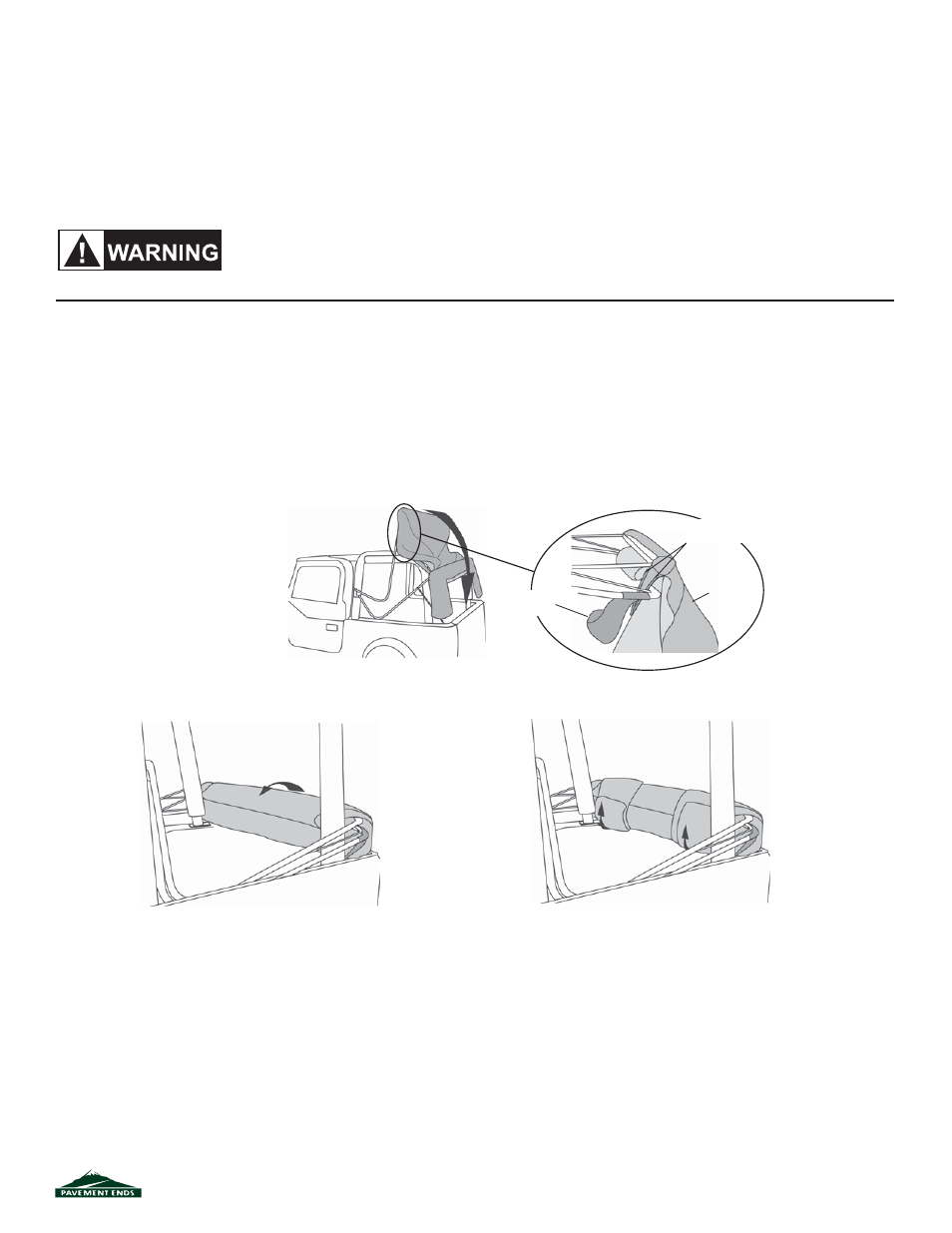

Remove the Quarter Panels and the Rear Window. To remove the Quarter Windows, unzip the rear and top zippers. Release the
plastic strip from the retainer. Release the Hook and Loop Fasteners from around the Vertical Retainer.
To roll up the Rear Window, remove the Tailgate Bar and open the zippers on each side of the window to the top. Start at the
bottom and roll the window to the inside. Avoid wrinkles in the fabric and window. Secure it in place with the elastic garters
inside of the top.
When operating the vehicle without the Quarter Windows, the Rear Window should be rolled up and
secured with the elastic garters for proper ventilation.
Step Twenty-four
T
O
F
OLD THE
T
OP
D
OWN
C
OLLAPSE
T
OP
Release the front of the top from the windshield. Raise the front of the
deck and collapse the rear bows, tucking the two plastic strips above the
door openings and the stay pad on the rear bow inside of the bows, Wrap
the fabric around the bows, then tuck the rear legs of the top under the
bows.
Wrap rear legs
under bows
Top Fabric
Tuck plastic strips
inside bows
Tuck stay pad
inside bows
Collapse bows and
fold toward rear
Wrap fabric
around bows
