Step Five
U
NFASTEN
C
ENTER
B
OW
Unfasten the hook and loop fl aps around the
Bows on each side of the sport bar.
Step Six
R
EMOVE
H
EADER
S
CREWS
Collapse the bow assembly down onto the tailgate
to access the header. Remove the two screws that
secure the fabric to the header.
Step Seven
R
EMOVE
T
OP
F
ABRIC
Raise the bow assembly and lock the header to the wind-
shield.
Drape the top fabric, backing side up, over the hood and
windshield. Remove the twenty-seven (27) screws that secure
the fabric to the upper and lower headers. Set the screws
aside for use in installing the new top. Slide the extrusion
along the front edge of the top out of the channel in the lower
header and remove the old top from the vehicle.

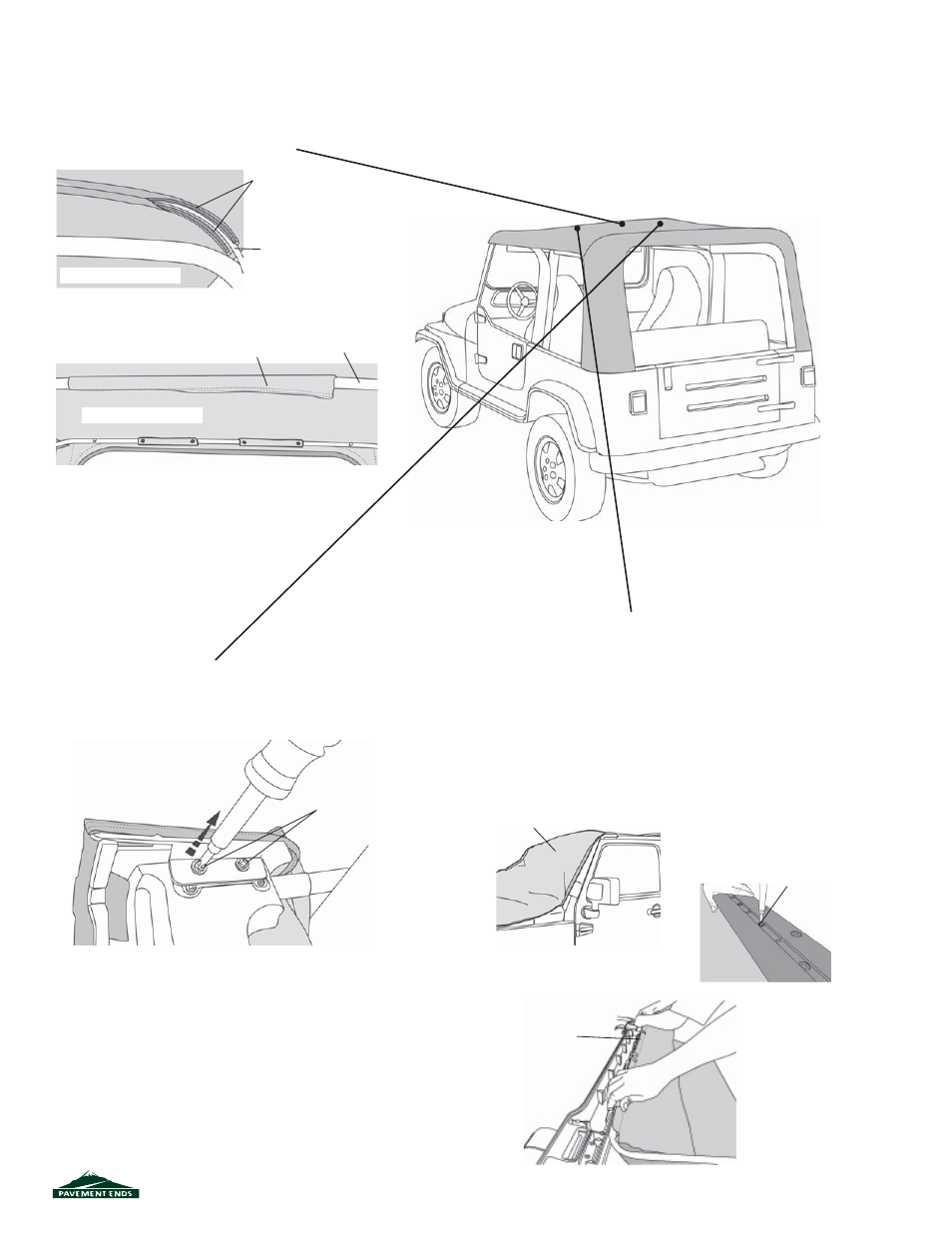

View from inside vehicle
Sport Bar
Unfasten hook and
loop to unwrap fl ap
Bow in front of
Sport Bar
Bow behind
Sport Bar
Unfasten hook and
loop to unwrap fl ap
View from inside vehicle
Rear Window Opening
Remove
Screws
Top Fabric - Backing Side Up
Remove Screws (27)
Across Header
Slide Extrusion along
the Front Edge of the
Channel to remove
Top
