Roll Plastic into
Channel
Start Zipper on
Quarter Window
Step Sixteen
S
ECURE
F
RONT OF
Q
UARTER
P
ANELS

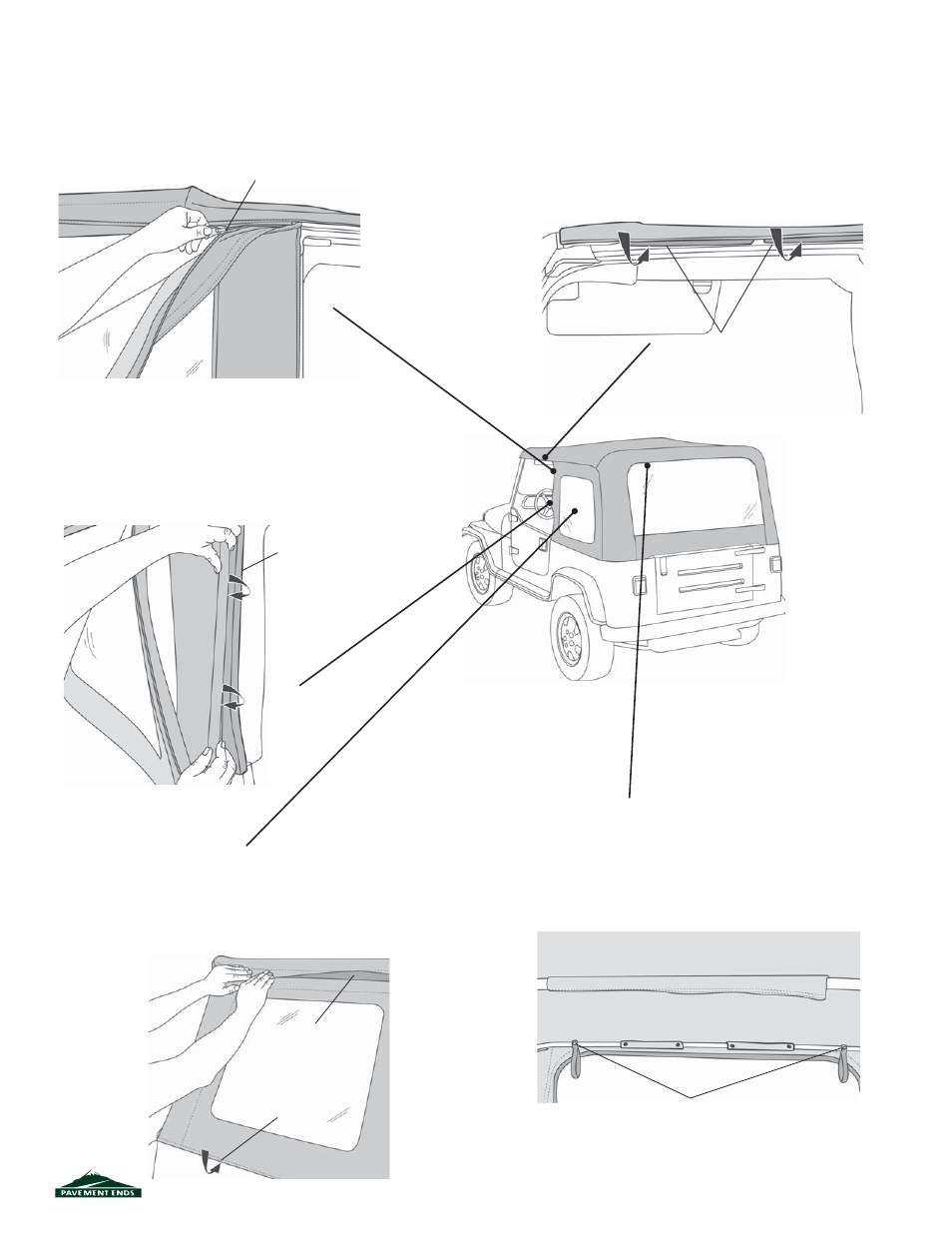

Roll the plastic strip along the front of the Quarter
Window into the channel in the Door Surround.
Step Eighteen
S
ECURE
T
OP ABOVE
D
OOR
O
PENINGS
Slip the plastic strips above the doors into
the channel on the vehicle.
Step Seventeen
S
ECURE
Q
UARTER
W
INDOWS
Close the zipper and slip the plastic along the
bottom of the Side Window into the channel on
the vehicle.
Fasten the hook and loop strip above the win-
dow to the top.
Step Fifteen
A
TTACH
Q
UARTER
W
INDOW
Z
IPPERS
Start the zipper on the Quarter Window and
close it 1-2 inches.
Step Nineteen
I
NSTALL
T
AILGATE
B
AR ON
R
EAR
W
INDOW
Snap the Elastic Garters to the snaps on the
Rear Bow above the rear window opening.
Roll Plastic Strip into
channel in retainer
Roll Plastic into
Channel
Fasten Hook
and Loop
Snap Elastic Garters
to Rear Bow
