Step Nine
I
NSTALL
T
OP
F
ABRIC
Close the upper header over the fabric, sandwiching
the fabric. Reinstall the four (4) corner screws. Then
install the twenty-three (23) screws across the header.
Lower the bow assembly to the rear of the vehicle.
Step Ten
I
NSTALL
C
ORNER
S
CREWS
Wrap the fabric around the header and raise
the header slightly to work the pockets in the
fabric over the corners of the header. Install
the screws removed in Step 6 in each corner to
secure the fabric to the header.
Step Eight
I
NSTALL
T
OP
F
ABRIC
Raise the bow assembly and lock the header to the
windshield.
Drape the top fabric, backing side up, over the hood
and windshield. Slide the extrusion along the front edge
of the top into the channel in the lower header. Line up
the center notch in the fabric with the center notch in
the header. Use masking tape to help hold the fabric in
place along the lower header.

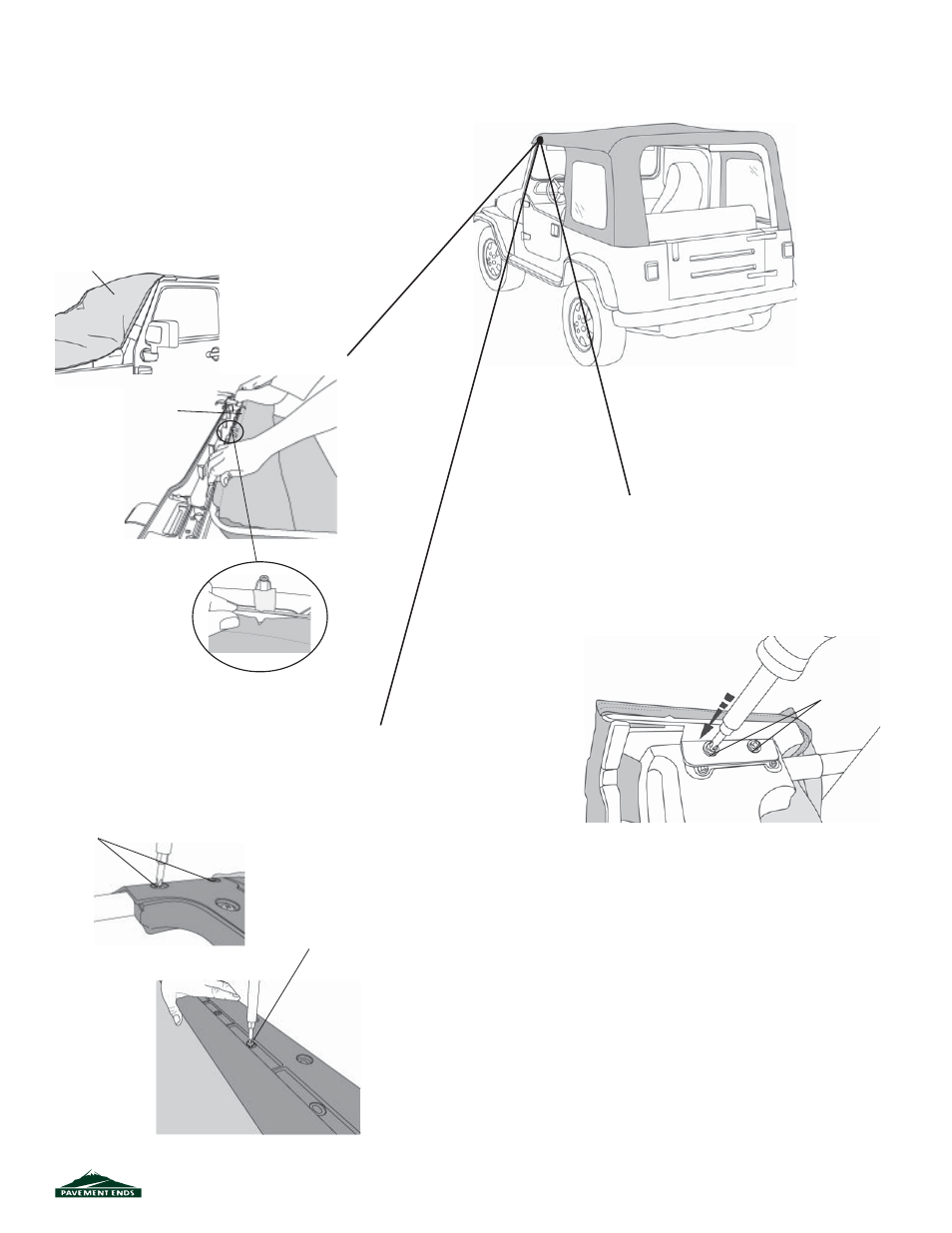

Top Fabric - Backing
Side Up
Slide Extrusion along
the Front Edge of the
Channel
Line up the Center
Notch in the Fabric with
the Center Notch in the
Header
Reinstall Corner
Screws
Install Screws
Across Header
Install
Screws
