Measurement Functions

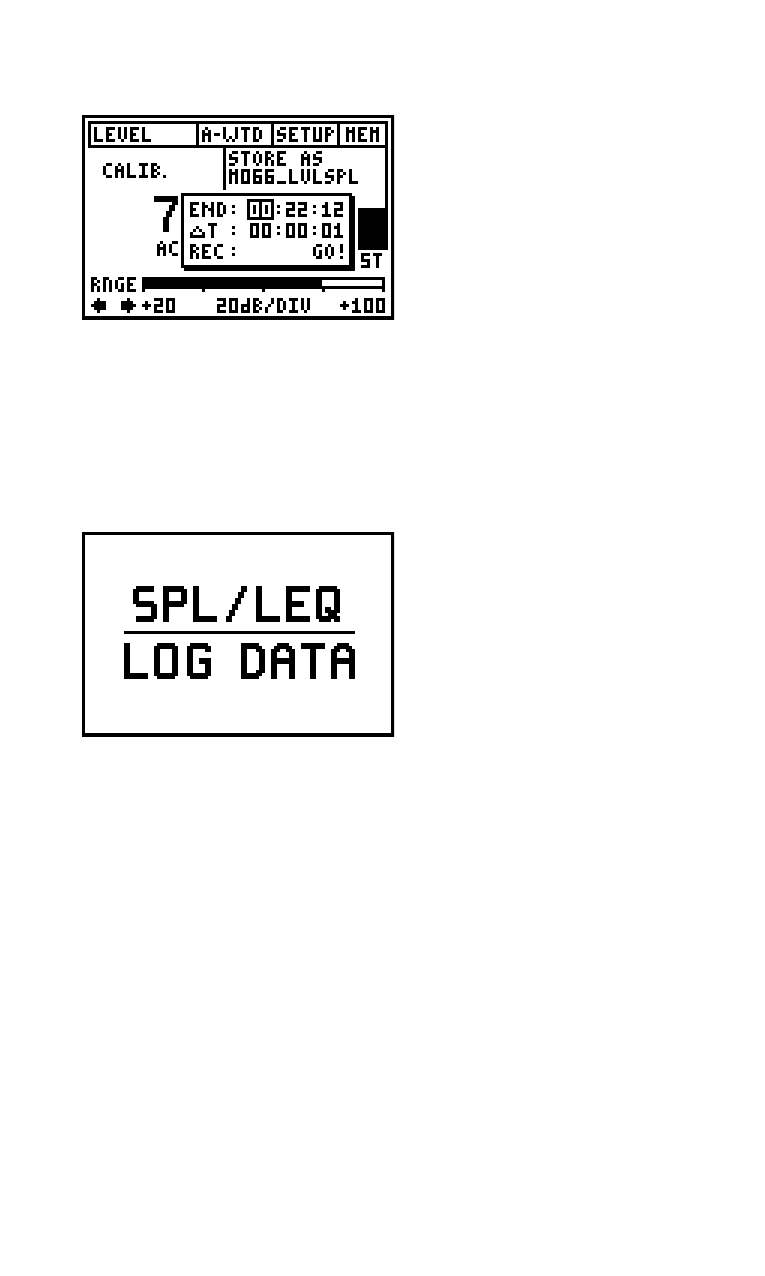

Fig 3.6 SPL Logging Setting
setting of recording time
The maximum recording time
(END) of the sound pressure
level logging depends on the
remaining memory and the
selected test interval period
(T). The logger may record a
maximum of 1500 points over
a custom defined time.
The test interval period (T) can
be defined by the user in the
format hh:mm:ss.
Fig 3.7 SPL/LEQ Memory
Review logging records
When checking the recorded
data in the memory overview,
the “SPL/LEQ LOG DATA“
screen is displayed. The
result table is stored together
with this screenshot and can
be read out by using the
MiniLINK PC software.
Note:
During the ML1 SPL/LEQ logging the change of
settings is not possible.
