10
2. bAsIC operATIoN
Despite the wide range of available measurement functions and
optional setups, the operation of the Minilyzer is almost self-
explanatory.

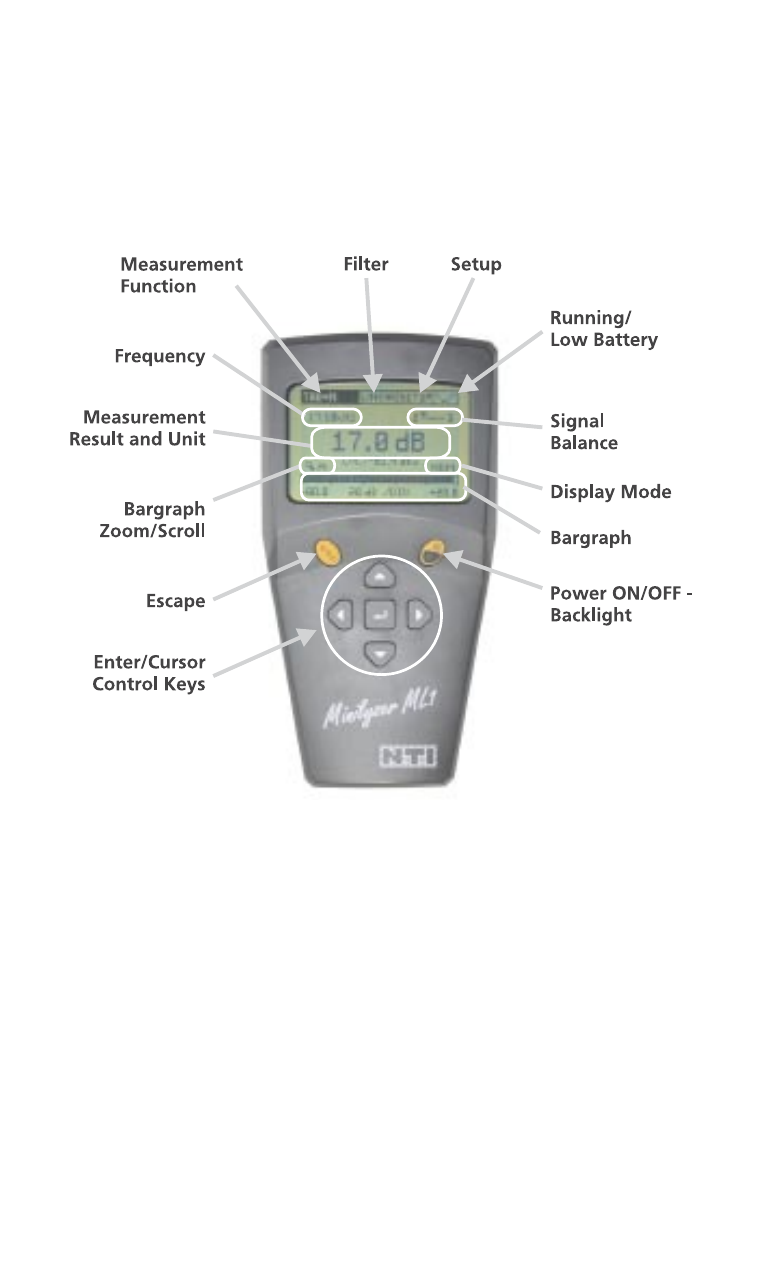

Fig 2.1 Display & Control Elements
The LCD is divided in the menu bar on top (measurement function,
filter, setup and running / low battery) and the results displayed below
are showing various information’s about the current status.
The cursor control keys and the escape button allow straightforward
navigation through the available features to quickly get the required
information’s like
• Actual setup (measurement function, filters)
• Status of the unit / batteries
• Measurement results (numerical values and bargraph).
Basic Operation
