Overview
8

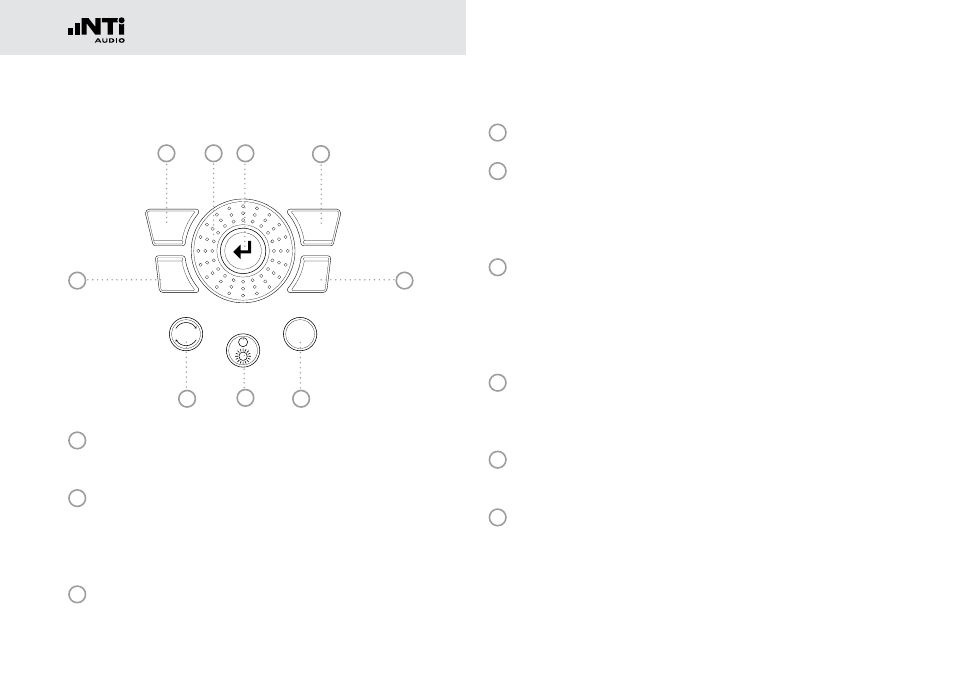

Buttons and operating elements
wave
sens mute
freq
esc
level
1 2 3 4
5
6 7 8
9
1 esc Terminates an entry and
jumps to the top menu level.
2 Rotary
wheel
Slow rotation:
Precise setting of the value.
Fast rotation:
Setting the value in larger steps.
3 Enter Confirming a selection.
4 wave Selection of the test signal.
5 freq Setting the output frequency. Also directly
jumps to the „PARAM“ menu with the
„SWEEP“ and „CHIRP“ test signals; and to file
selection with „FILE”, „DOLBY” and „DTS”.
6 mute When pressed, it illuminates to indicate you
have switched off (Muted) the output signal.
The button also lights up during the cycle
pauses of the „PNOISE” and „CHIRP” signal
waveforms.
7 On / Off Switches the instrument Power off if held down
for one second. Also switches the back-lighting
on and off with a shorter press.
8 sens Changes the sensitivity of the frequency and
level settings.
9 level Setting the output level. You can set the output
signal unit to dBF or %.
The following signals have a fixed output level:
DTS, DOLBY, TRANSPAR, I/O DELAY.
