Linear PCM Test Signals
30
Sweep Signal modes
Using the “MODE” symbol, you can run the test signal in the
following modes:
Once-only
: Plays the test signal once
Continuous
: Repeats the test signal
Parameter
You can define the following parameter for this test signal:
Output level
The frequency display is for information only. The
current frequencies will be displayed here once the
SWEEP test signal has been started.
You can configure the signal sequence here.
B
t
t
TRIG
t
STEP
f

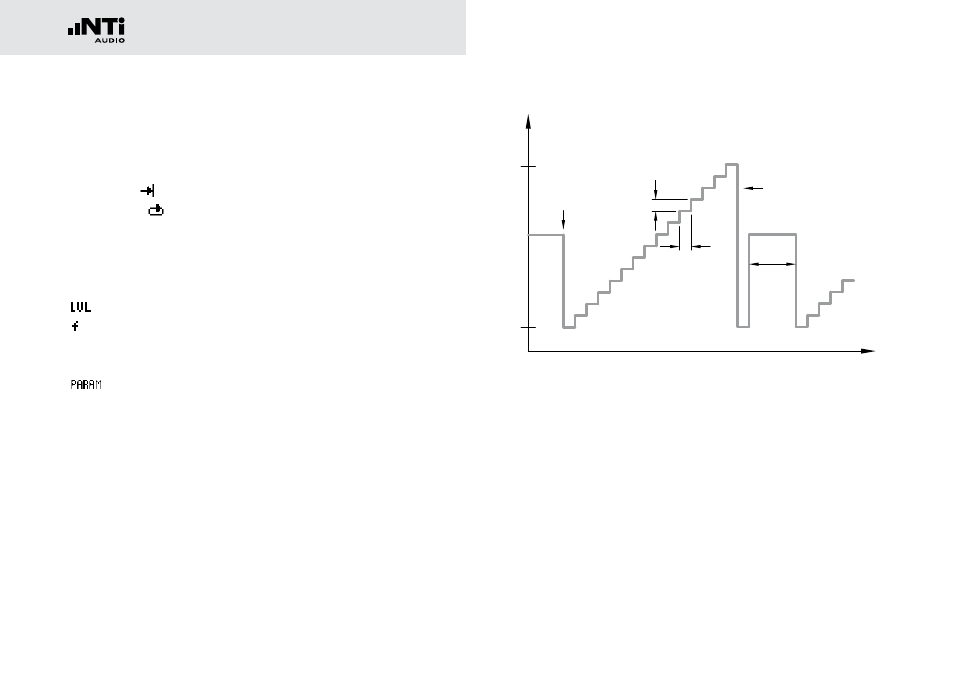

RES
A
ff
f
t
STEP
t
STEP
t
STEP
f
STOP
f
START
1 kHz
A The sweep recording starts as soon as the frequency
drops from 1 kHz to fSTART.
B The end of the sweep is signaled by a falling frequen-
cy.
