dca300sscu2/4i 60 hz generator• operation manual — rev. #1 (10/21/13) — page 43
traiLer MaiNteNaNCe
Periodically check the actuator mounting fasteners for
damage or loosening. Inspect the actuator for worn or
damaged parts. As you are towing your trailer, be aware
of any changes in braking quality. This could be an early
warning of brake or actuator malfunction and requires
immediate attention. Consult a certifi ed brake specialist to
make necessary adjustment or repairs.
adJustaBle channel
Your trailer may be equipped with an adjustable channel
(Figure 3) that allows the coupler to be raised or lowered
to a desired height. Periodically check the channel bolts
for damage or loosening.
Warning
Failure to maintain proper fl uid level in the actuator
may result in loss of braking action which could cause
severe property damage, injury or death.
table 1. hydraulic Brake troubleshooting
symptom possible cause solution
No Brakes Brake line broken or kinked? Repair or replace.
Weak Brakes or
Brakes Pull to
One Side
Brake lining glazed? Reburnish or replace.
Trailer overloaded? Correct weight.
Brake drums scored or
grooved?
Machine or replace.
Tire pressure correct? Infl ate all tires equally.
Tires unmatched on the
same axle?
Match tires.
Locking Brakes
Brake components loose,
bent or broken?
Replace components.
Brake drums out-of-round? Replace.
Noisy Brakes
System lubricated? Lubricate.
Brake components correct? Replace and correct.
Dragging
Brakes
Brake lining thickness
incorrect or not adjusted
correctly?
Install new shoes and
linings.
Enough brake fl uid or correct
fl uid?
Replace rubber parts
fi ll with dot 4 fl uid.
NOTICE
When replacing channel mounting hardware (nuts,
bolts and washers), never substitute substandard
hardware. Pay close attention to bolt length and grade.
alWaYs use manufacturer's recommended parts
when replacing channel mounting hardware.

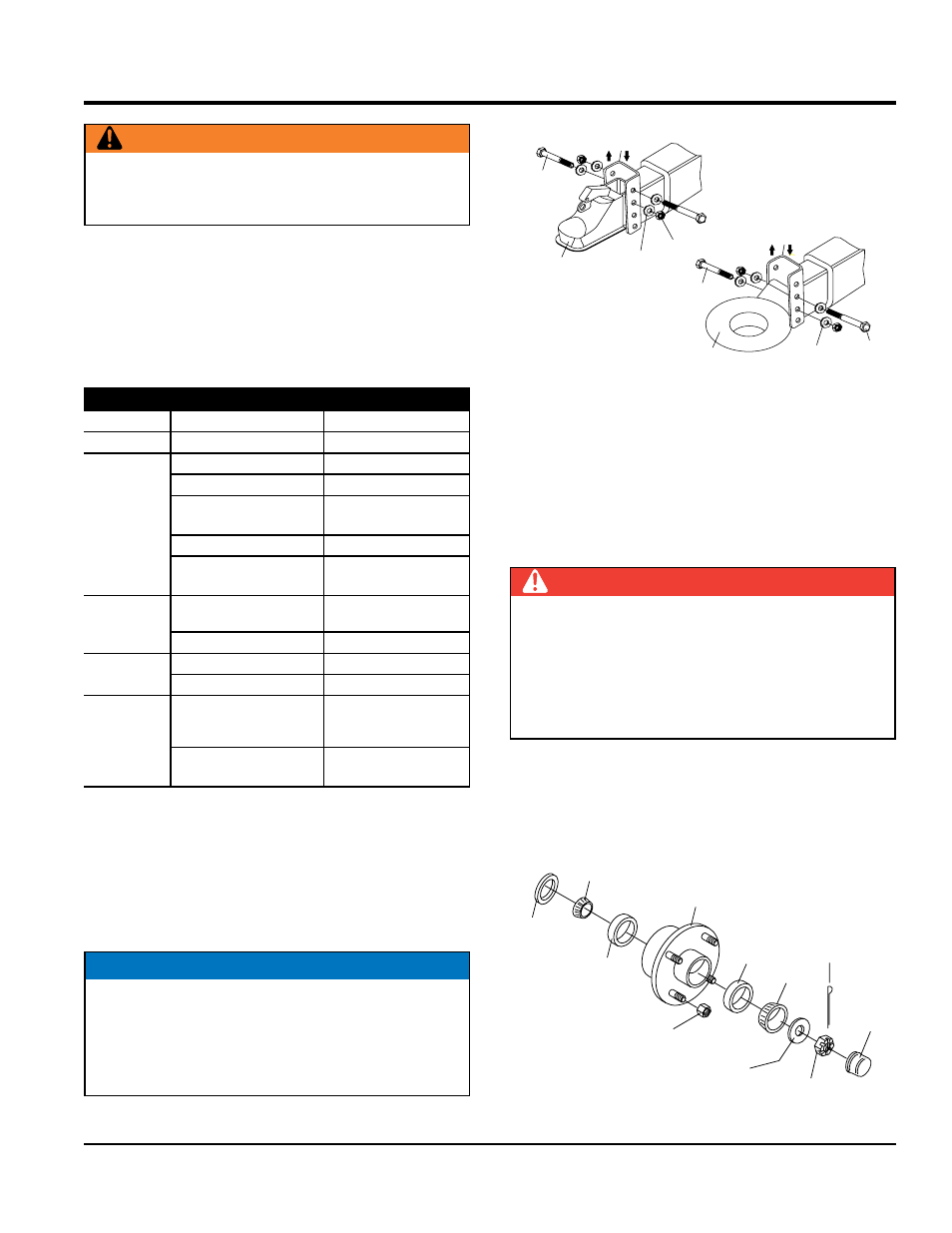

Figure 3. Adjustable Channel
Wheel Bearings
Wheel bearings (Figure 4) must be inspected and lubricated
once a year or 12,000 miles to insure safe operation of
your trailer.
If trailer wheel bearings are immersed in water, they must
be replaced.
If the trailer has not been used for an extended amount
of time, have the bearings inspected and packed more
frequently, at least every six months and prior to use.
Follow the steps below to disassemble the wheel hub and
service the wheel bearings. See Figure 4.
Figure 4. Wheel Hub Components
2" or 2-5/16" BALL
COUPLER
ADJUSTABLE
CHANNEL
5/8" FLAT
WASHER
5/8" X 11" X 5"
BOLT
5/8"
NYLOC
NUT
ADJUSTABLE
CHANNEL
5/8" FLAT
WASHER 5/8"
NYLOC
NUT
5/8" X 11" X 5"
BOLT
3" PINTLE EYE
RING
daNgeR
If trailer wheels are under water for a long period of
time, wheel bearings may fail. If this is the case, service
wheel bearings immediately.
The possibility exists of the wheels falling off causing
equipment damage and severe bodily harm even death!
WHEEL
HUB
BEARING
CUP
BEARING
CUP
BEARING
BEARING
OIL
SEAL
SPINDLE
NUT
SPINDLE
WASHER
COTTER
PIN
DUST
CAP LUG
NUT
