dca300sscu2/4i 60 hz generator• operation manual — rev. #1 (10/21/13) — page 13

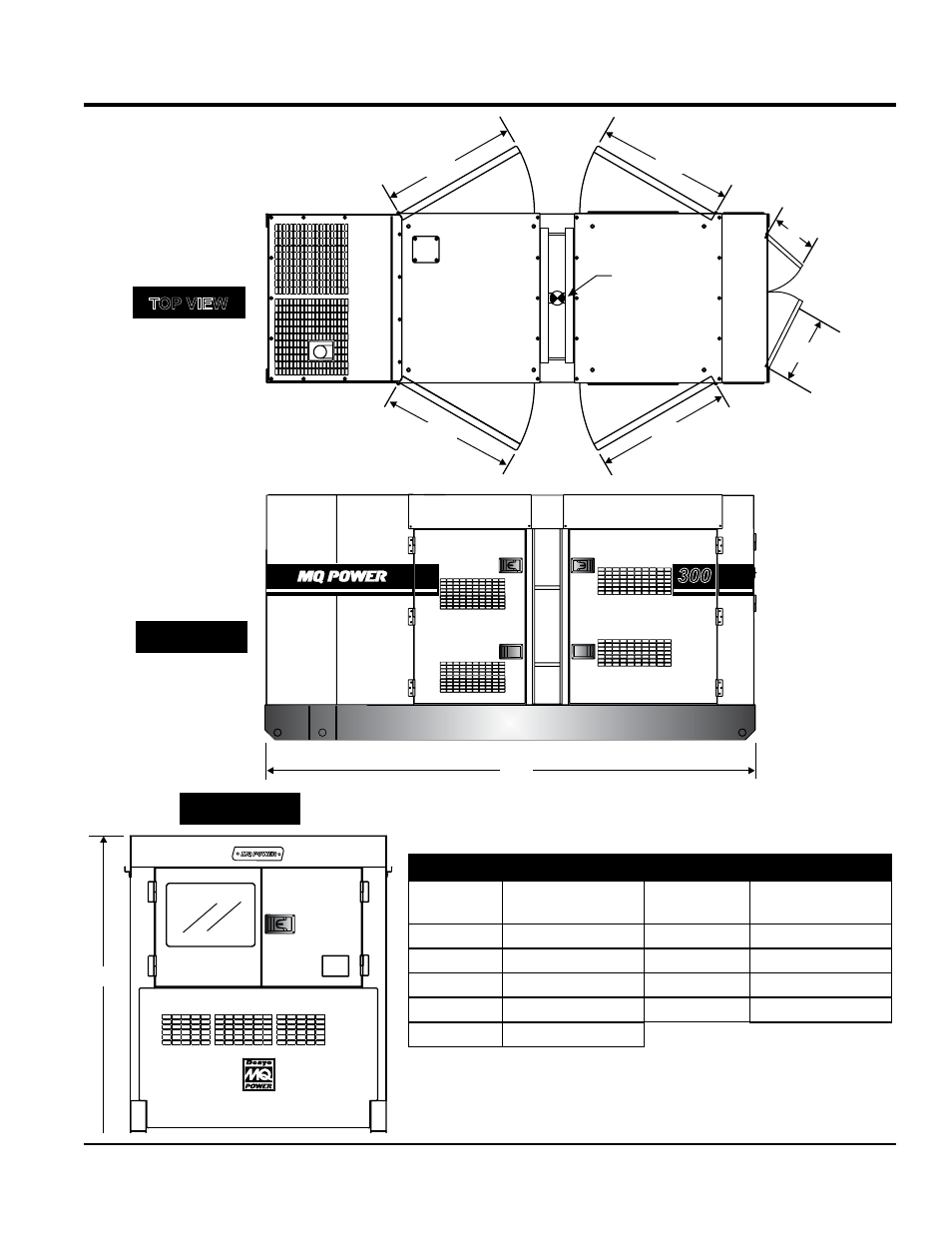

DiMeNsiONs
SIDE VIEW
TOP VIEW
FRONT VIEW
H
I
G
300
A F
B C
E
MAXIMUM
LIFTING
POINT
16,500 lbs.
(7,484 kg)
D
table 3. dimensions
Reference
letter
dimension in. (mm)
Reference
letter
dimension in. (mm)
A 39.76 (1,010) F 43.89. (1,115)
B 39.76 (1,010) G 149.60 (3,800)
C 43.89. (1,115) H 70.86 (1,800)
D 23.03 (585) I 59.05 (1,500)
E 25.19 (640)
Figure 1. Dimensions
