The drive wheels are aligned by adjusting the entire rear drive assembly:
1. Loosen the Transaxle Attachment Bolts just enough to move the Transaxle
— do not completely loosen the bolts.
2. Loosen and tighten the Alignment Jackscrew nuts to move the Transaxle
— and thus the wheels — in the appropriate direction to achieve the
desired alignment distance (
see Fig.44) .
3. Lock down the Transaxle Attachment Bolts when the appropriate
alignment distance is set.
Pivot Side | Adjustment Side

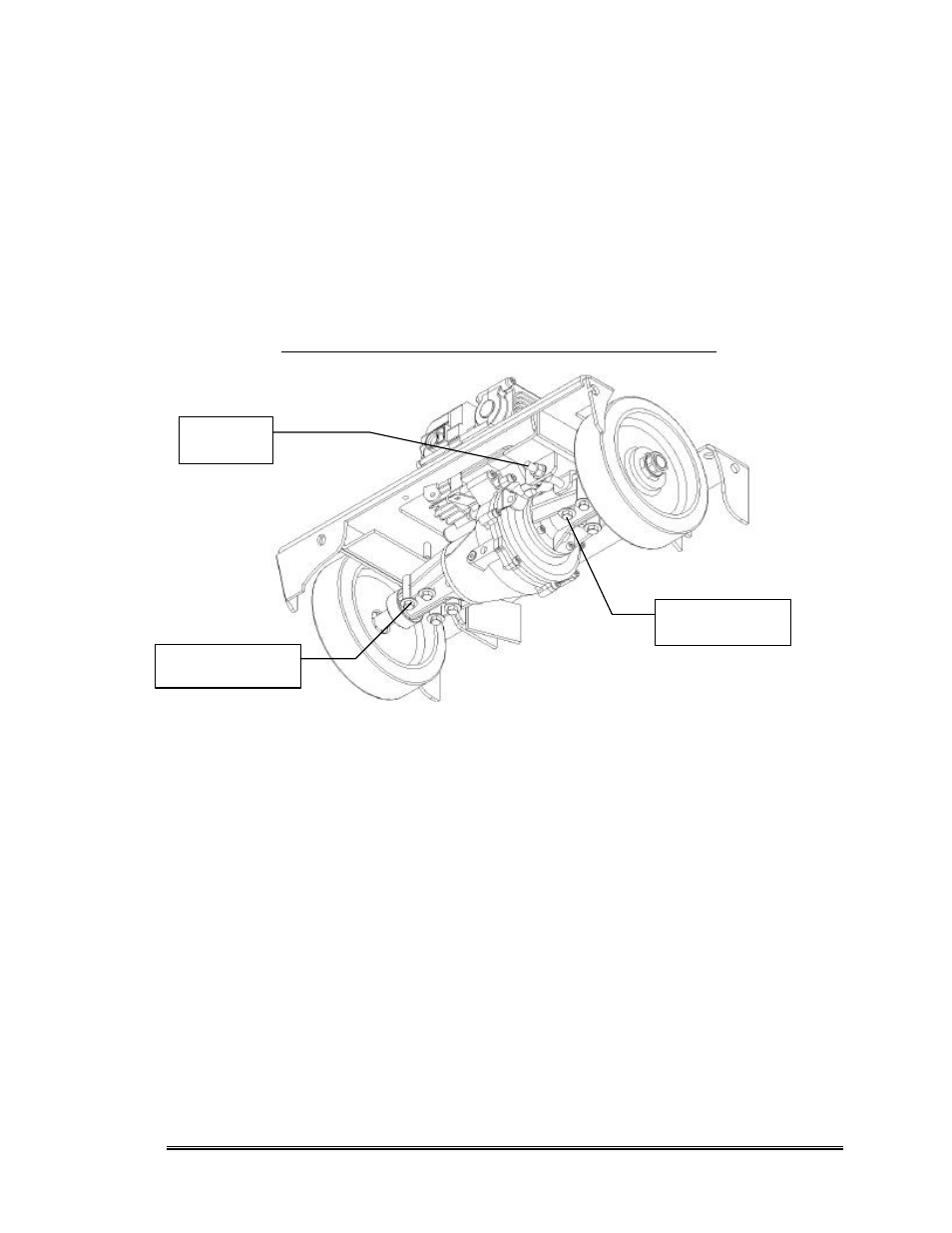

Fig. 46 — Drive Wheel Alignment Bolt Locations
Adjustment Side
Attachment Bolts
Pivot Side
Attachment Bolts
Alignment
Jackscrew
