Page 25
25
Installing and Removing the Blade Guard
Blade Guards are “ambidextrous” – that is, they can be installed on either side of
the saw.
Installing the Blade Guard
1. Slide the Blade Guard Mounting Clip onto the Guard Mounting Tab on the
frame.
2. Connect the water delivery hose to the Blade Guard.
♦
Ensure that the water pipes are pointed toward the water distribution
grooves in the Blade Collars.
3. Make sure the front-hinged section of the Blade Guard is fully closed before
use.

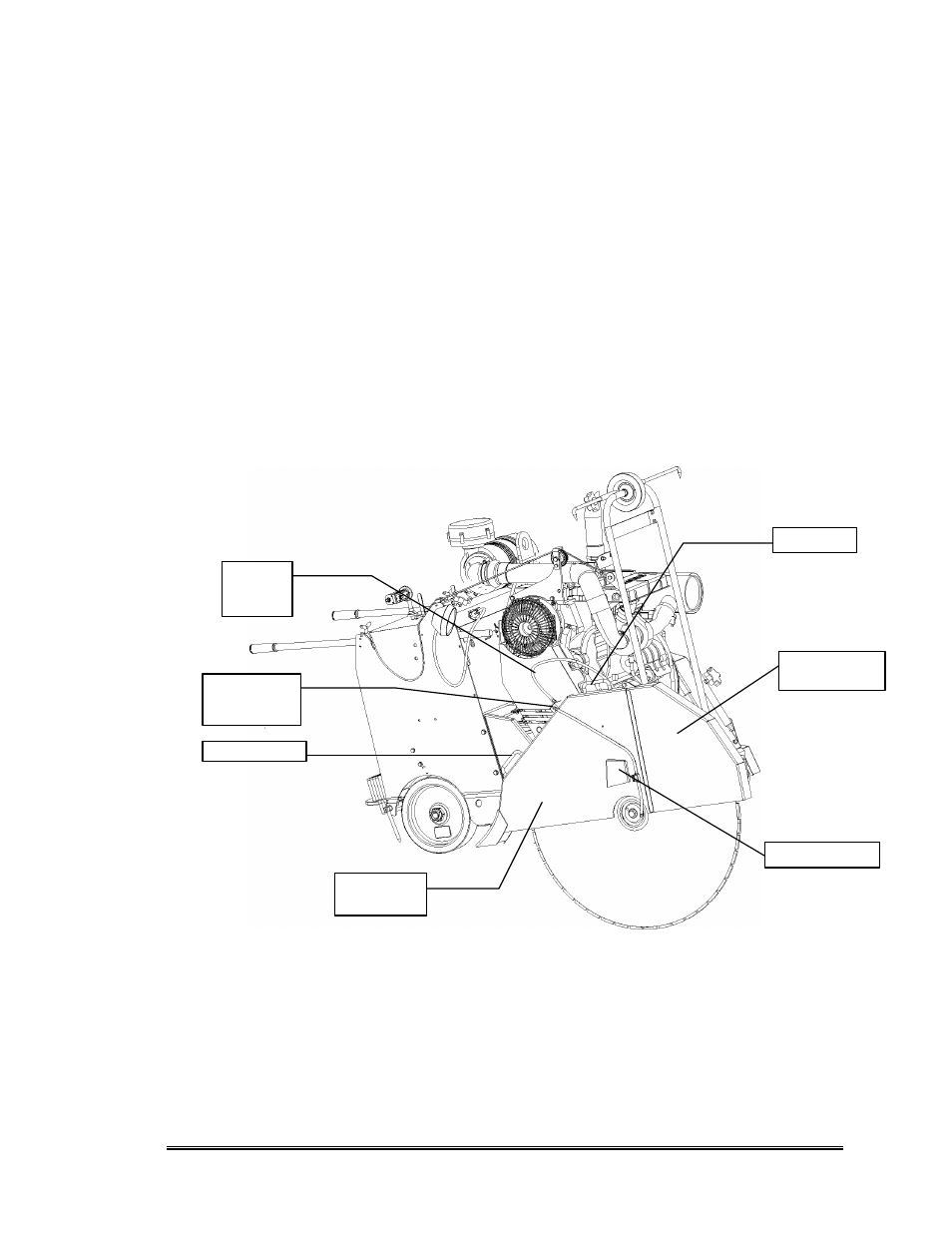

Fig. 7 — The Blade Guard installed (Similar to illustration)
Blade Guard
rear section
Mounting Clip
Blade Guard
hinged front
Water
Delivery
Hose
Top Handle
Rear Handle
Water
Distribution
Manifold
