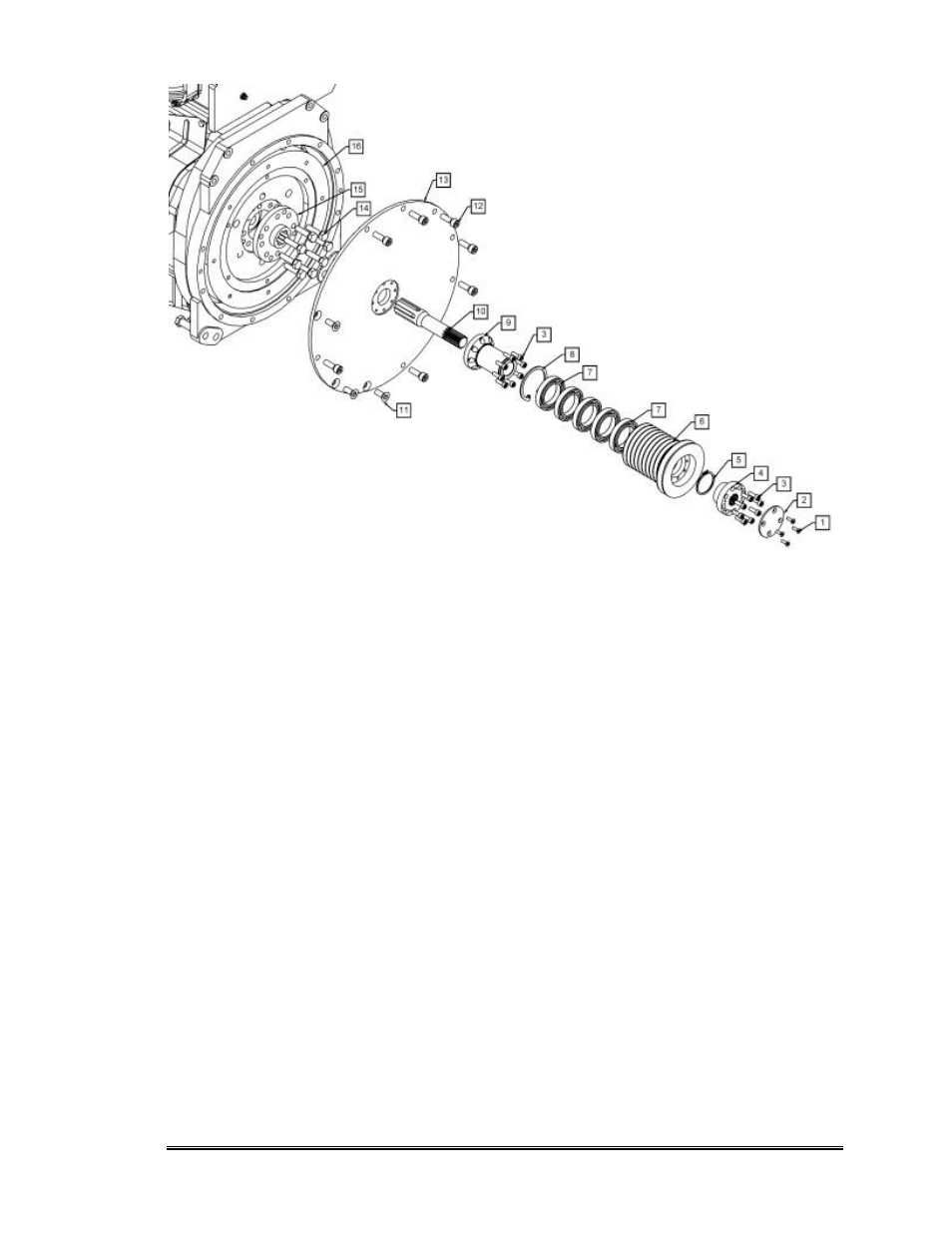

Fig. 36 — PTO Drive Sheave/Bearing Assembly
Re-Assembling the PTO Drive
1. Clean and inspect all parts.
2. Use a press to push the new Bearing/Sheave assembly onto the Bearing
Support (9) until the bearings contact the shoulder of the Support.
3. Use a sharp pointed awl or similar tool to install the flat-wound Spiral
Retaining Ring (5) into the top groove of the Bearing Support (9).
4. Install the Splined Drive Shaft (10) in the Splined Drive Shaft Flange (15).
5. Slide the PTO Drive Plate assembly over the Splined Drive Shaft.
6. Bolt the plate to the Engine, making sure to clock the plate to its original
position.
7. Re-install the Splined Drive Cap (4) and bolts (3), with a low-strength
thread-locker (LocTite™ 242 or equivalent).
8. Install the End Cap (2) and screws (1).
9. Replace the Drive Belt.
