Belts and Pulleys

Belt

Qty

Part Number

Blade Shaft Drive Belt

Part # 520009

Jackshaft Belt

Part # 521012

Transaxle Drive Belt

Part# 521004

Water Pump Option Belts

Part# 521006

Part# 521008

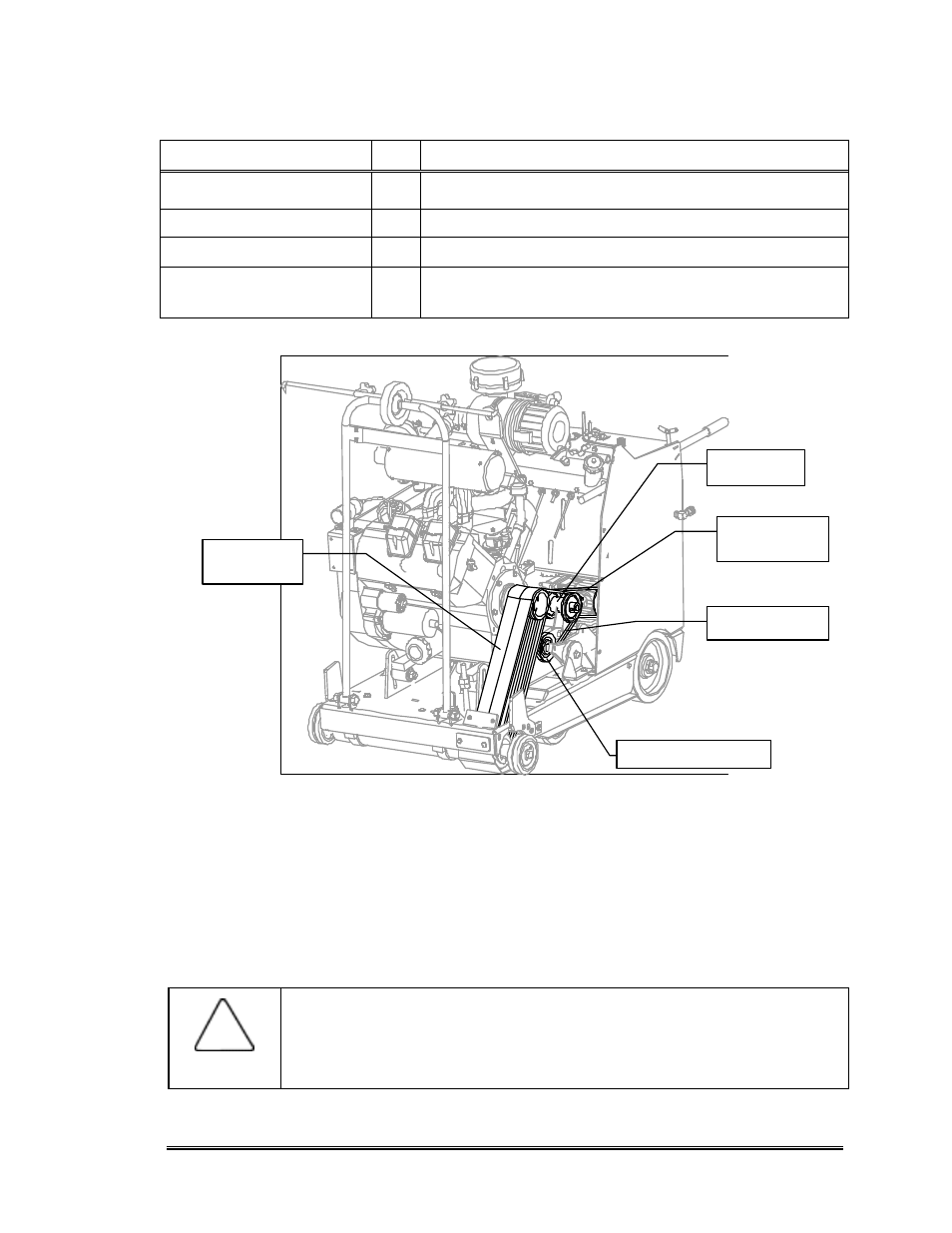

Fig. 24 — Belt Locations

V-Belt Tension

Ideal V-Belt tension is the lowest tension at which the belt will not slip under
peak load conditions. Check V-Belt tension frequently during the first 24-48
hours of run-in operation.

CAUTION

§ Over-tensioning shortens belt and bearing life.
§ Keep belts clean of foreign material that may cause slippage.
§ Make V-Belt inspection a periodic procedure.
§ Never dress belts, as this can cause premature failure.

Belt Tensioner Pulley

Jackshaft

Blade Shaft

Belt

Jackshaft Belt

Transaxle
Drive Belt
