27

Installing the Collar Guard

The Collar Guard protects unused Blade Collars.
1. Slide the Collar Guard (1) onto the Guard Mounting Tab on the frame.
2. Verify that the unused Blade Collar (2) is secured to the Blade Shaft, by

tightening the mounting bolt (3).

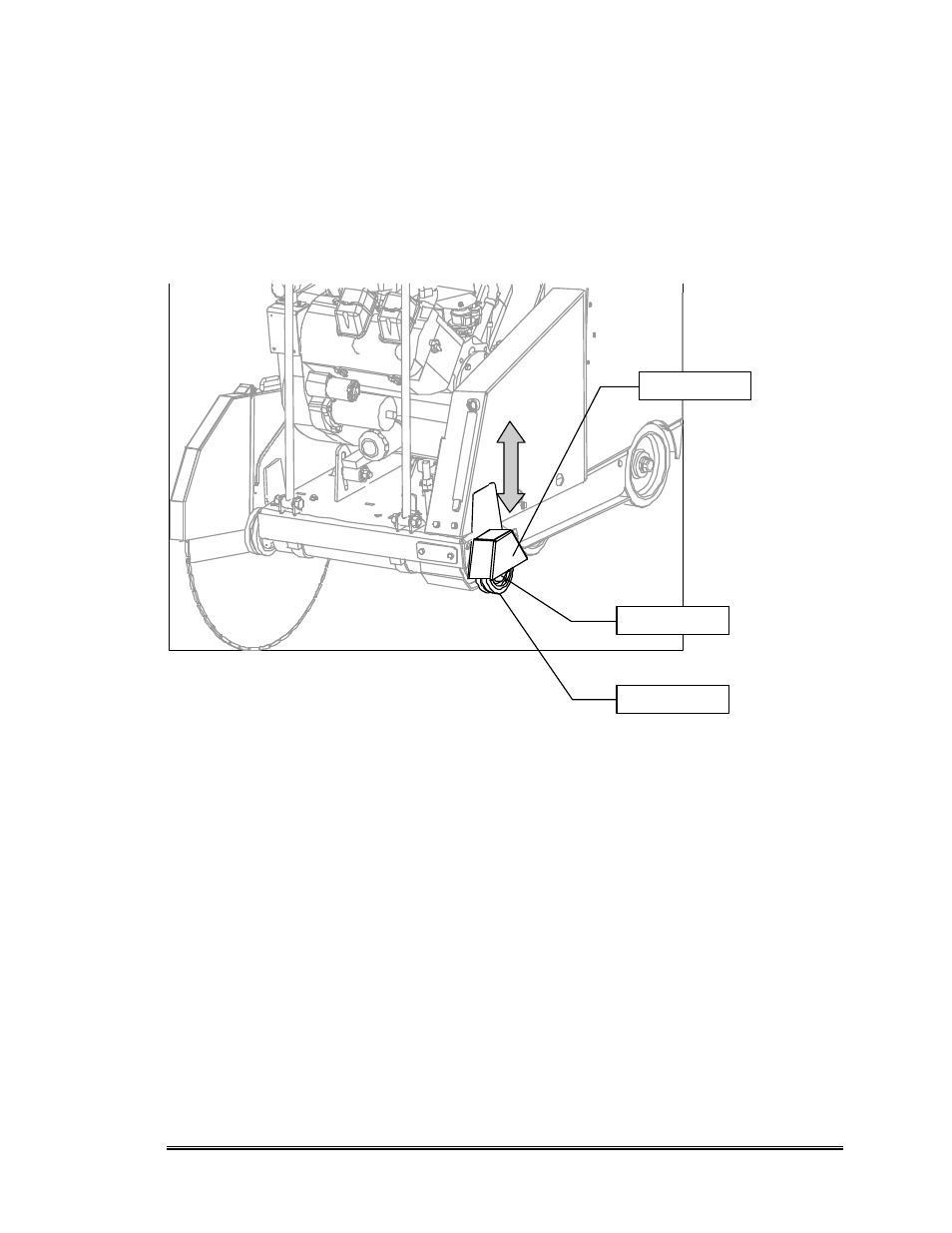

Fig. 9 — The Collar Guard, Installed

Collar Guard

Collar

Mounting Bolt
