Adjusting Blade Shaft Drive Belt Tension

NOTE

When tightening or loosening drive belts, raise the saw to reduce
stress on the tensioning system, and gravity will assist you by pulling
the engine backwards slightly.

1. Access the Panel on the side of the saw, loosen the Engine Mount Lock

Bolts to allow the engine to rotate forward.

♦

Requires 15/16” socket, 10”- 12” extension and ratchet or breaker bar.

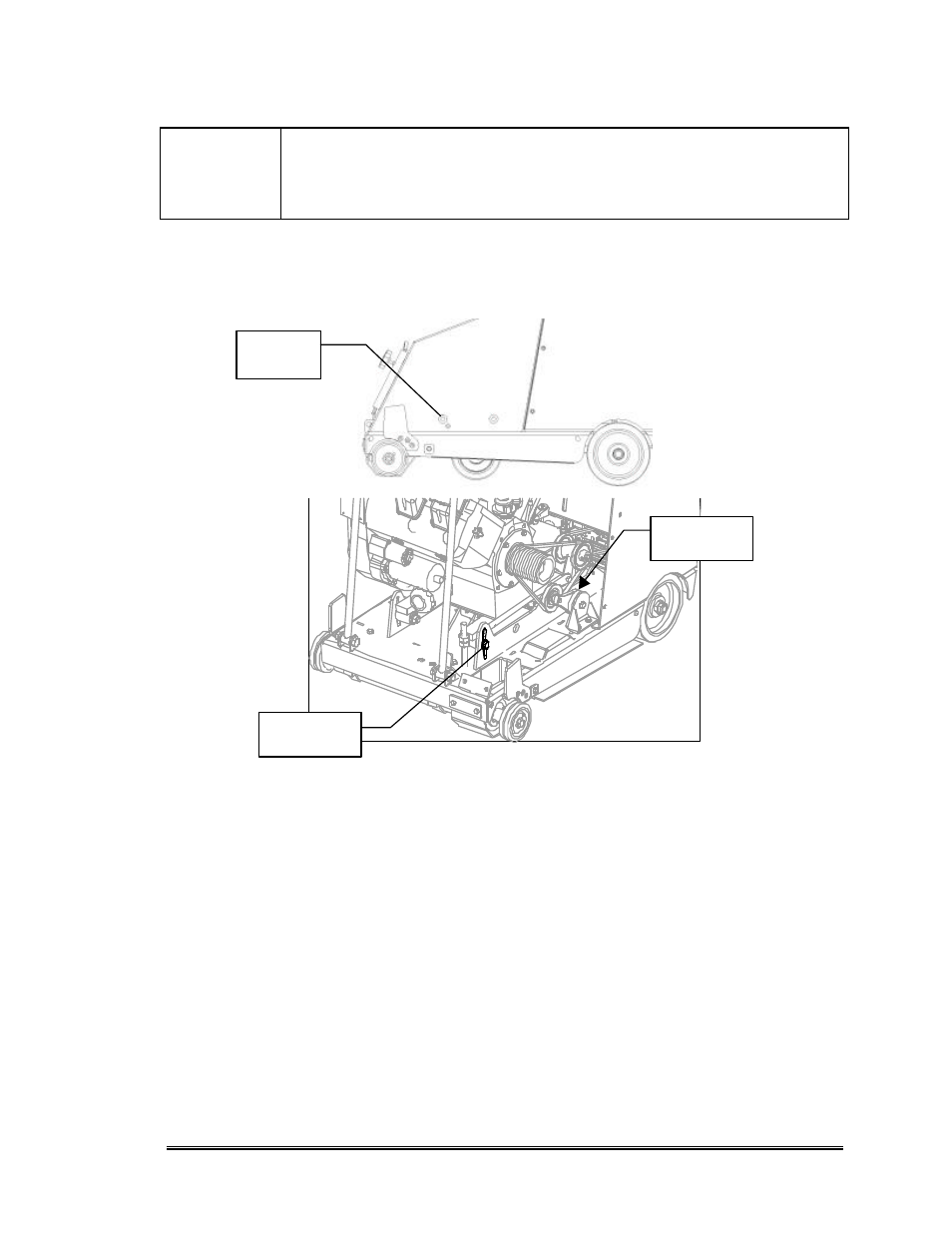

Fig. 25 — Engine Mount Lock Bolts

Engine Mount
Lock Bolt

Lock Bolt

Access Panel
