Drive Wheel Alignment
Below is the technique recommended for aligning the wheels. Distance X is the
same on both sides; the Front Wheel and Blade shaft axles must be at right angles
to the frame edge. Distance A is 3/16” (.187”) longer on the right side, so that the
saw steers slightly left. Users may wish to alter the alignment to fit a particular
application.

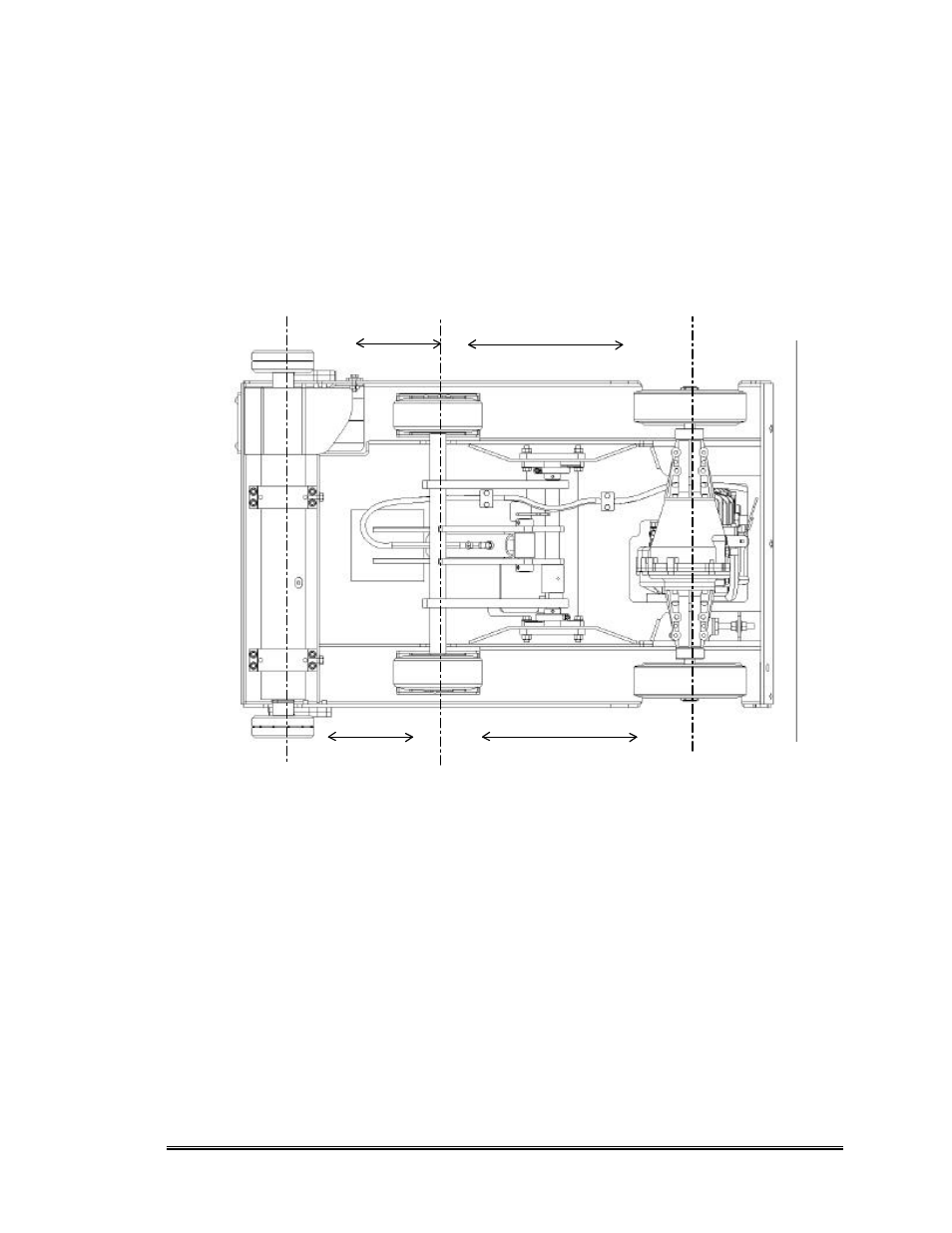

Fig. 45 — Drive Wheel Alignment
Distance X
Distance X
Distance A
Distance = A + .187”
