Installing the Inner Blade Collar

1. Ensure that the tapered portion of the Blade Shaft, and the Inner Blade Collar

are perfectly clean and free of burrs or indentations. Clean and repair as
necessary

2. Ensure that the Drive Key is in place.
3. Slide the Inner Collar onto the tapered portion of the Blade Shaft

♦

DO NOT use any lubricant! Lubricant prevents the tapered surfaces of the
Collar and Shaft from mating properly.

4. Install the Outer Blade Collar, Collar Bushing, and Mounting Bolt.

♦

Tighten with a ½” impact wrench to seat the tapered surfaces of the Inner

Collar and Blade Shaft.

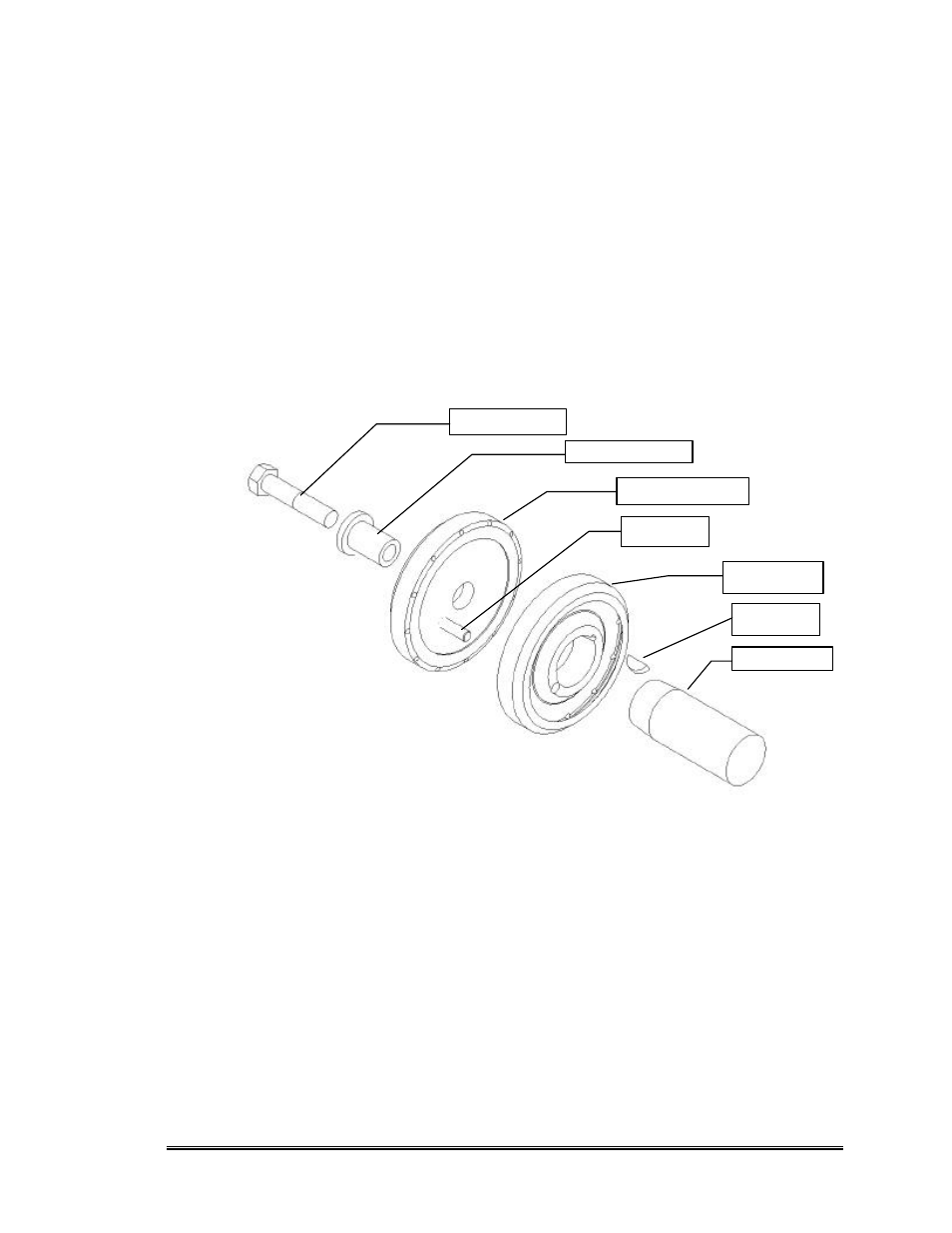

Fig. 30 — Installing the Inner Blade Collar

Drive Key

Blade Shaft

Inner Collar

Outer Collar

Collar Bushing

Mounting Bolt

Dowel pin
