53
PTO Drive Maintenance
Disassembly of the PTO Drive and replacement of the PTO Drive
Sheave/Bearing Assembly requires the PTO Bearing Puller
(P/N 18610). The Sheave/Bearing Assembly is not serviceable and must be
replaced as a complete unit.
1. Remove the Drive Belt (see Replacing the Blade Shaft Drive Belt).
2. Remove the Drive Plate Assembly from the engine.
♦ The Assembly is held on by 11 bolts.
♦ Note the clocking orientation of the plate.
3. On the workbench:
♦ Remove the Cap Screws and End Cap (Items 1 & 2, Fig. 35) .
♦ Remove the Splined Drive Cap Screws and the Drive Cap (Items 3 & 4,
Fig. 35) .
♦ With a sharp pointed awl or similar tool, remove the flat wound spiral
retaining ring (Item #5,
Fig. 35)
♦ Attach the PTO Bearing Puller in place of the Splined Drive Cap, as shown
in Fig. 35.
♦ Insert the Puller Alignment Bushing (1).
♦ Attach the Puller Cap (2) with the Drive Cap Screws (3).
♦ Thread in the PTO Bearing Puller Bolt (4).

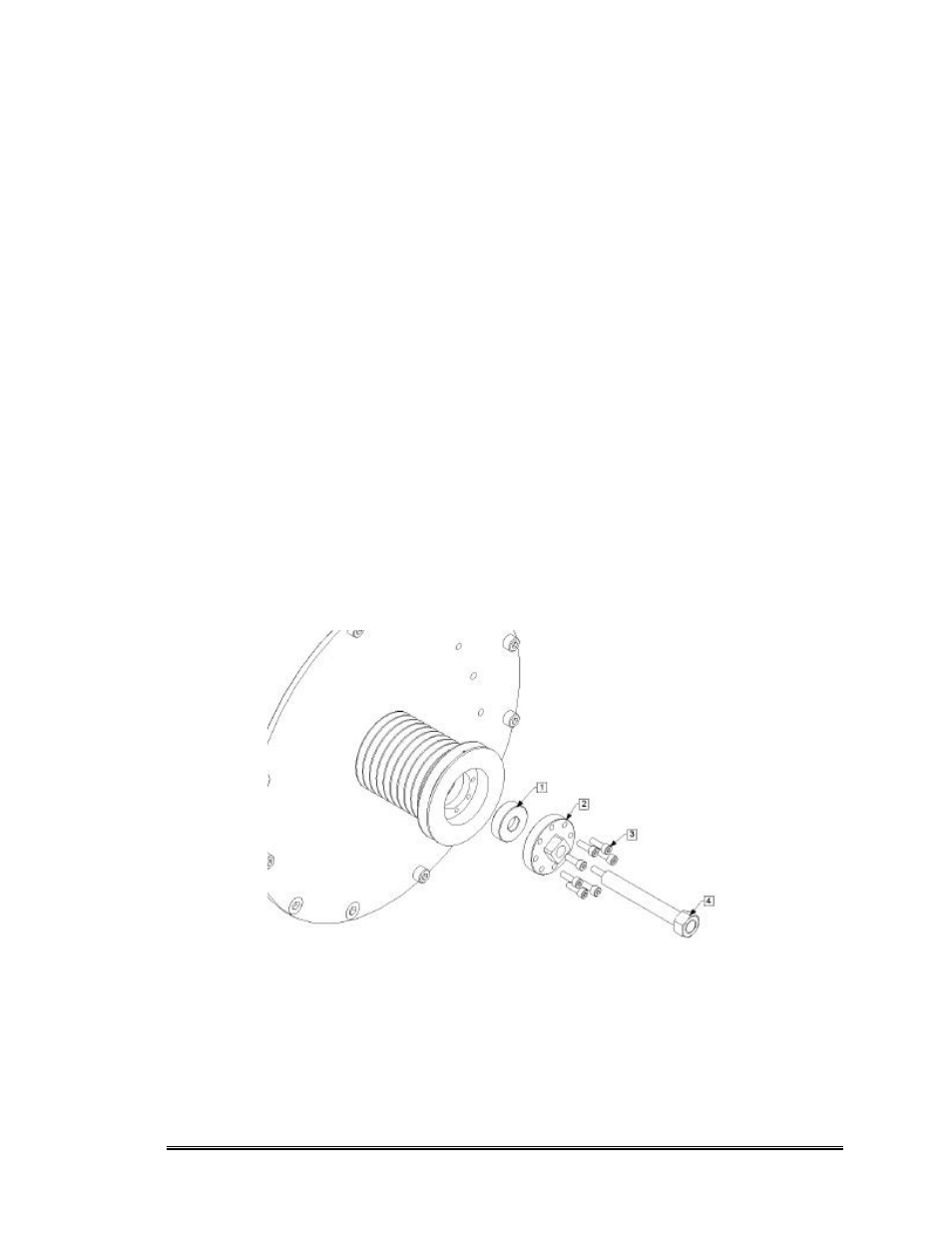

Fig. 35 — Attaching the PTO Bearing Puller to the Drive Plate Assembly
♦ Tighten the Puller Bolt (4), to pull the Sheave/Bearing Assembly off
of the Bearing Support (
Fig. 36, #9).
