JTNS20H/SW20H-SeRIeS RIDe-ON pOWeR TROWeL • OpeRaTION maNuaL — Rev. #4 (10/15/13) — page 21
FueL CHeCk

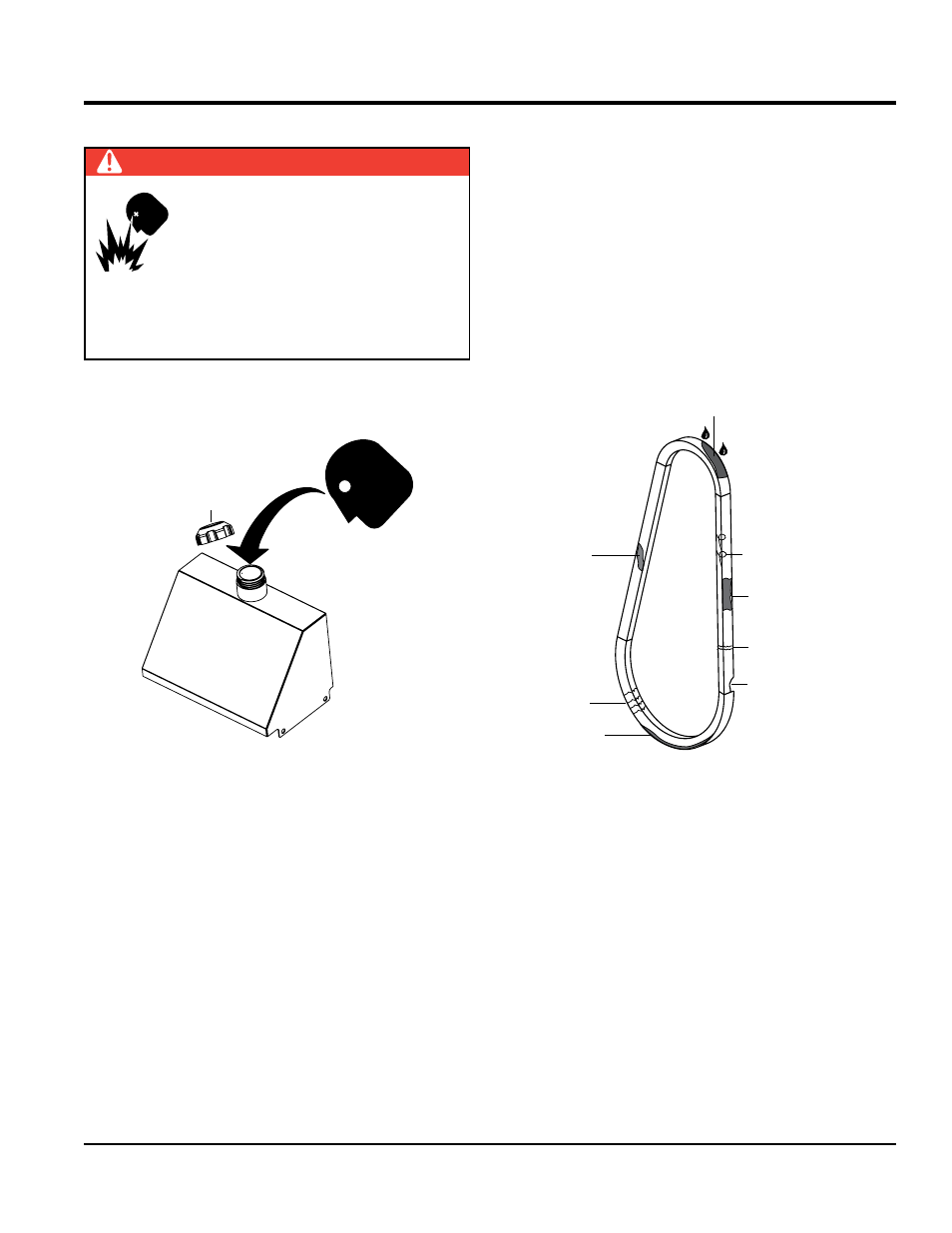

Remove fuel cap from fuel tank (Figure 8) and visually inspect
fuel level. Determine if the engine fuel is low. If fuel level is low,
fill with unleaded gasoline.
Figure 8. Fuel Gauge
DaNgEr
Handle fuel safely. Motor fuels are highly
flammable and can be dangerous if
mishandled.
DO NOT smoke while
refueling.
DO NOT attempt to refuel
the ride-on trowel if the engine is hot or
running.
DO NOT attempt to start the engine until the
fuel residue has been completely wiped up and the
area surrounding the engine is dry.
FUEL
TANK
FUEL
CAP
inspection
v-BeLT
Visually examine the V-belt (Figure 9) and determine if it
is full of tiny cracks, frayed, has pieces of rubber missing,
is peeling or otherwise damaged.
Also, examine the belt and determine if it is
oil soaked or
"
glazed " (hard shiny appearance on the sides of the belt).
Either of these two conditions can cause the belt to run hot,
which can weaken it and increase the danger of it breaking.
If the V-belt exhibits any of the above wear conditions
replace the V-belt immediately
Figure 9. Drive Belt Inspection
GLAZED
OIL SOAKED
BROKEN
CORD FAILURE
CRACKS
MISSING RUBBER
SIDEWALL
WEAR
WORN BACK
COVER
