JTNS20H/SW20H-SeRIeS RIDe-ON pOWeR TROWeL • OpeRaTION maNuaL — Rev. #4 (10/15/13) — page 13
specifications/dimensions

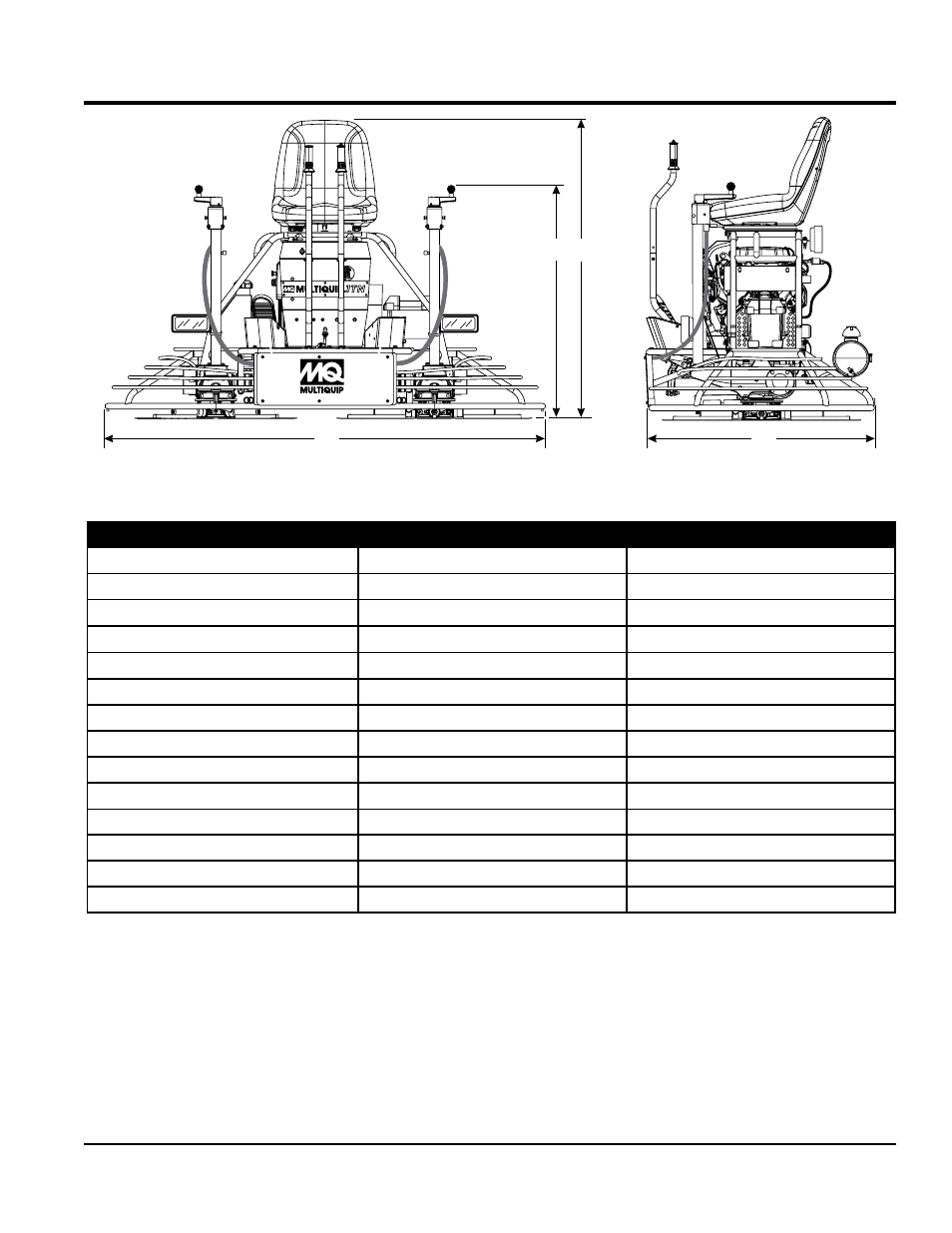

Figure 1. Dimensions
Table 1. Trowel Specifications
Model JTNS20HTCSL JTNSW20HTCSL
A–Length – in. (cm) 77.0 (195.6) 77.0 (195.6)
B– Height (Handle) in. (cm) 39 (99) 41 (104)
C–Height (Seat) – in. (cm) 49 (125) 51(131)
D–Width – in. (cm) 39.5 (101) 39.5 (101)
Weight – lbs. (kgs.) Operating 616 (280) 616 (280)
Weight – lbs. (kgs.) Shipping 836 (380) 836 (380)
Engine – kW (HP) 15.5 kW (20.8 HP/3600 rpm) 15.5 kW (20.8 HP/3600 rpm)
Fuel Tank – gallons (liters) 2.3 (9.1) 2.3 (9.1)
Blades Per Rotor 4 4
Rotor – RPM (Dry Concrete) 138 138
Path Width – in. (cm) 75 (191) 75 (191)
Engine Oil Capacity (w/ new filter) 2 Quarts (1.9 Liters) 2 Quarts (1.9 Liters)
Gear Box Oil Capacity 27 oz. (798 ml) ISO-VG640 25 oz. (750 ml) ISO-VG640
C
A
B
