JTNS20H/SW20H-SeRIeS RIDe-ON pOWeR TROWeL • OpeRaTION maNuaL — Rev. #4 (10/15/13) — page 17
13.
Lift Loops — Located on both sides of the main frame.
Used to lift the trowel.
14.
Engine Stop Switch — Located within the seat is the
an engine start/stop switch. Operator must be sitting in
the seat for the to start engine. Conversely if operator
exits seat, engine will stop.
15.
rear Light — 12 volt halogen lights, used for night
operations.
16.
Battery — Provides +12V DC power to the electrical
system.
17.
retardant Spray Pump — Delivers retardant to the
spray nozzle.
18.
Engine — Air cooled 4-stroke overhead valve 2
cylinder Honda GX630, 20 HP gasoline engine.
19.
right-Side Spider — Consists of trowel arms, blades,
wear plate, and thrust collar.
20.
eZ-mover Boss — Rear attachment point for EZ
Mover. Used to transport the trowel.
21.
retardant Spray Tank — Holds 5 gallons of retardant.
22.
Left-Side Spider — Consists of trowel arms, blades,
wear plate, and thrust collar.
23.
Fuel Tank — Holds 5 gallons of unleaded gasoline.
24.
Fuel Filler Cap — Remove this cap to add unleaded
gasoline to the fuel tank. Make sure cap is tightened
securely.
DO NOT overfill.
25.
Belt guard — Encloses drive belt used in conjunction
with clutch.
components

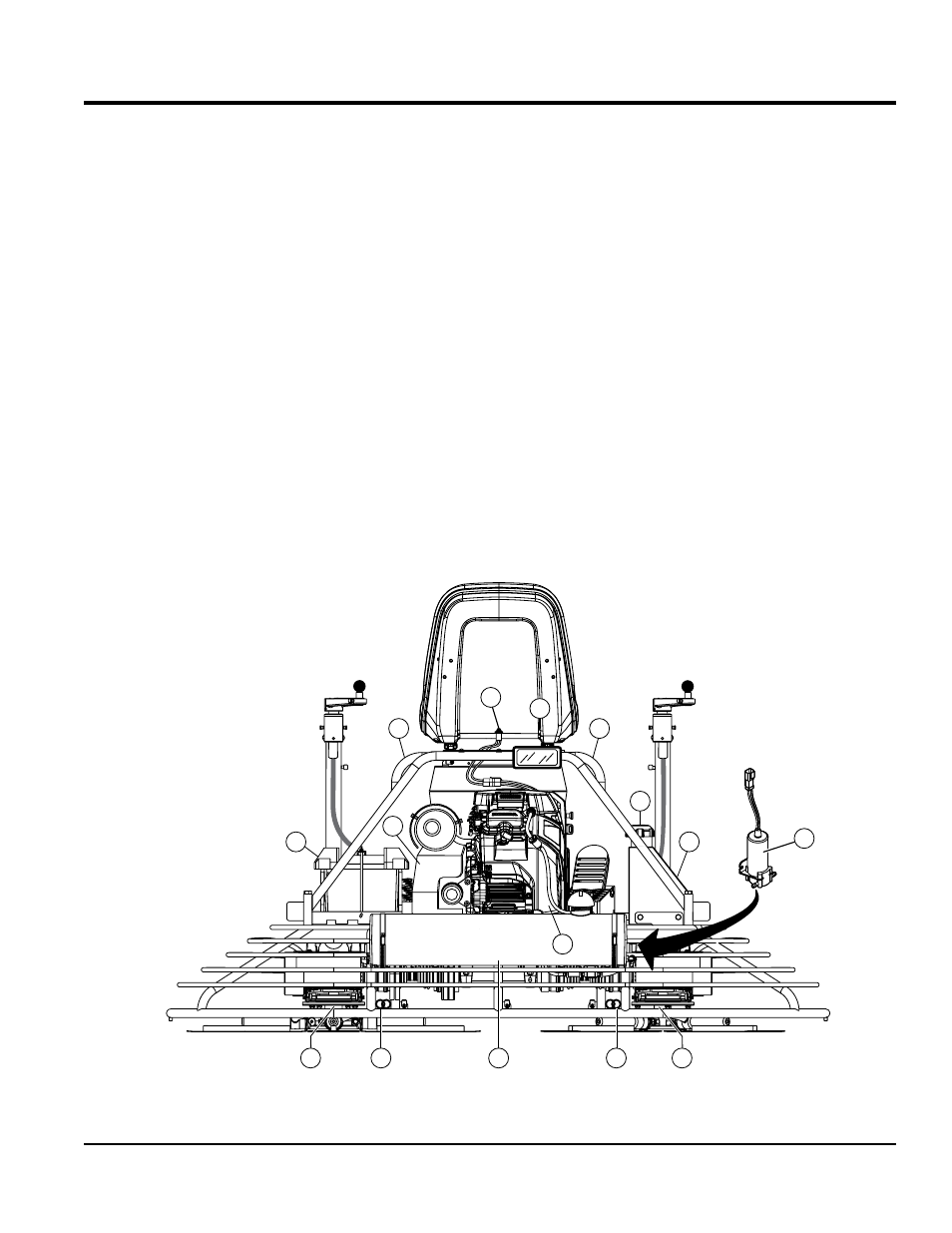

Figure 3. Components – Rear
13
13
15
23
21
22
19
16
20
20
14
17
24
18
25
RETARDANT ONLY
