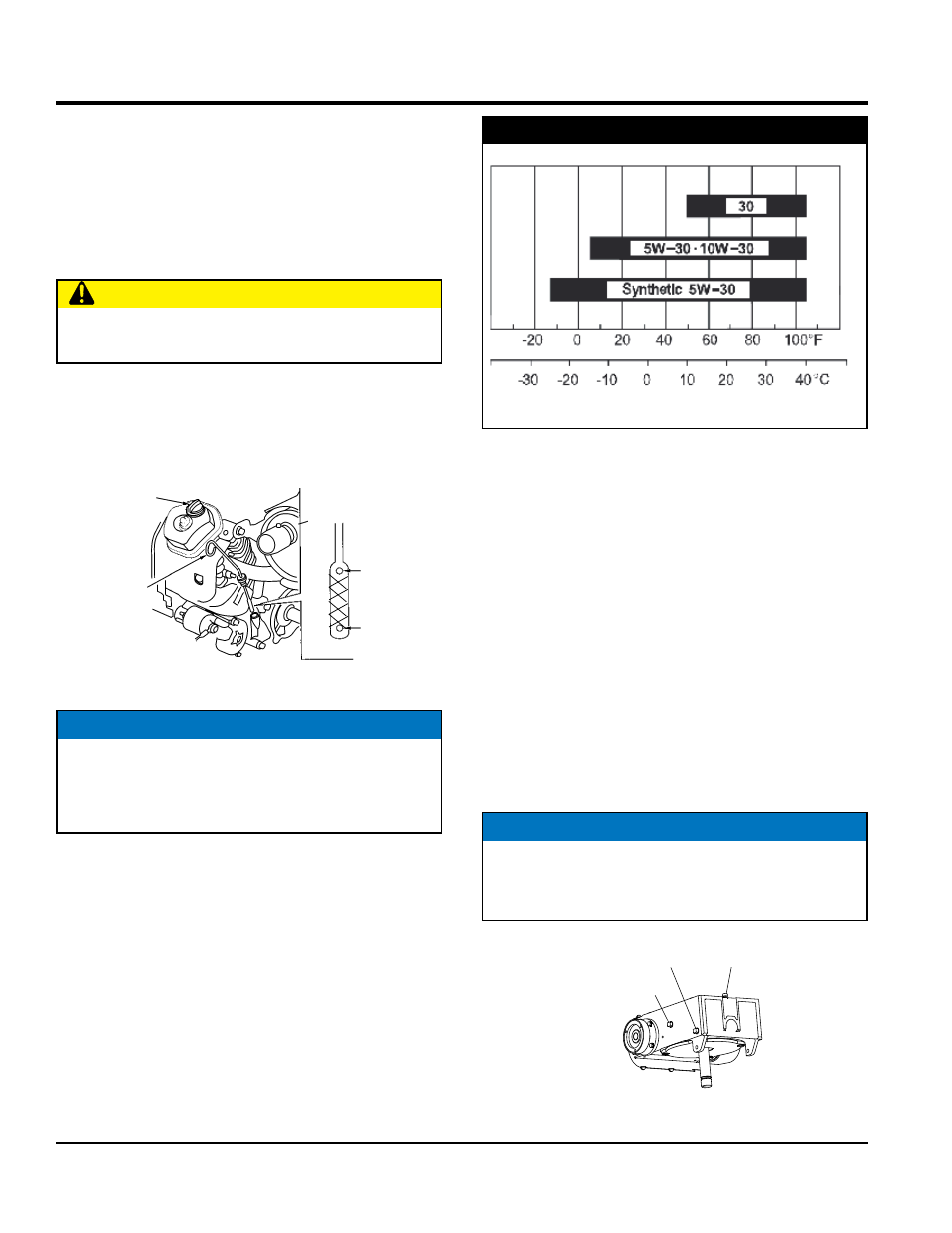

page 20 — JTNS20H/SW20H-SeRIeS RIDe-ON pOWeR TROWeL • OpeRaTION maNuaL — Rev. #4 (10/15/13)
inspection
The following section is intended as a basic guide to the ride-on
trowel operation, and is not to be considered a complete guide
to concrete finishing. It is strongly suggested that all operators
(experienced and novice) read “Slabs on Grade ” published by
the American Concrete Institute, Detroit Michigan.
DO NOT use your ride-on power trowel until this section is
thoroughly understood.
eNgINe OIL LeveL
aLWaYS check engine oil before each use.
1. Pull the engine oil dipstick (Figure 6) from its holder.
2. Determine if engine oil is low.
Figure 6. Engine Oil Dipstick
3. If engine oil is low, remove oil filler cap, and add correct
amount of engine oil to bring oil level to a normal safe
level. Use oil as recommended in Table 4.
CauTION
Failure to understand the operation of the trowel could
result in severe damage to the machine or personal injury.
UPPER
LIMIT
LOWER
LIMIT
DIPSTICK
OIL FILLER
CAP
NOTICE
To prevent extensive engine wear or damage, aLWaYS
maintain the proper oil level in the crankcase. NEVER
operate the engine with the oil level beyond the upper
or lower limits on the dipstick.
geaRBOX OIL LeveL
JTNS20TCSL
1. Check the gearbox oil level in both gearboxes by
removing the level plug and ensuring that the oil is at
the correct level. See Figure 7.
2. Fill the gearbox just to the level of the fill plug. The
gearbox oil level capacity is 28 oz. (828 ml). Fill gearbox
with ISO-VG640 oil if necessary.
JTNSW20TCSL
1. Check the gearbox oil in both gearboxes by looking at
the sight glass on the side of gearbox. Proper oil level
is at center of sight glass. See Figure 7.
2. Fill the gearbox just to the center of sight glass if
necessary. Oil capacity is approximately 25 oz. (750 ml).
.
Figure 7. Gearbox Oil Plugs/Sight Glass
Table 4. Recommended viscosity grades
AMBIENT TEMPERATURE
NOTICE
Gearbox oil capacity is approximately 28 oz. (828 ml) for
JTNS20TCSL and 25 oz. (750 ml) for JTNSW20TCSL
when empty.
FILL PLUG (JTNS)
SIGHT GLASS (JTNSW)
DRAIN
PLUG
GEARBOX
VENT
