page 16 — JTNS20H/SW20H-SeRIeS RIDe-ON pOWeR TROWeL • OpeRaTION maNuaL — Rev. #4 (10/15/13)
components
1. Seat — Engine will not start unless operator is seated.
2. Retardant Spray Control Button — Sprays retardant
through the nozzle at the front of the machine.
3. Steering Control Levers — Directs the unit forward,
reverse, left, or right.
4. Twin Pitch Control — Both pitch towers are linked
together. One crank may be turned to adjust the blade
pitch simultaneously or individually controlled for each
set of blades. Turn the crank as marked on its top
surface to increase or decrease blade pitch.
5. Left Front Light — 12 volt halogen lights, used for
night operations.
6. Left Foot riser — Operator foot rest pedal.
7. Spray Nozzle — Spray nozzle for retardant.
8. right Foot Pedal — Controls blade speed. Slow blade
speed is accomplished by slightly depressing the foot
pedal. Maximum blade speed is accomplished by fully
depressing the foot pedal.
9. eZ- mover Boss — Front attachment point for EZ
Mover. Used to move the trowel.
10. right Front Light — 12 volt halogen lights, used for
night operations.
11. ignition Switch Control Panel— With key inserted,
turn clockwise to start engine.
„ Hour meter — Indicates number of hours the engine
has run.
„ Choke Control Lever — In cold weather pull this
lever to start engine. After engine warms push knob
all the way in.
12. Light Switch — Turns on three halogen lights. Two
in front, one in rear.

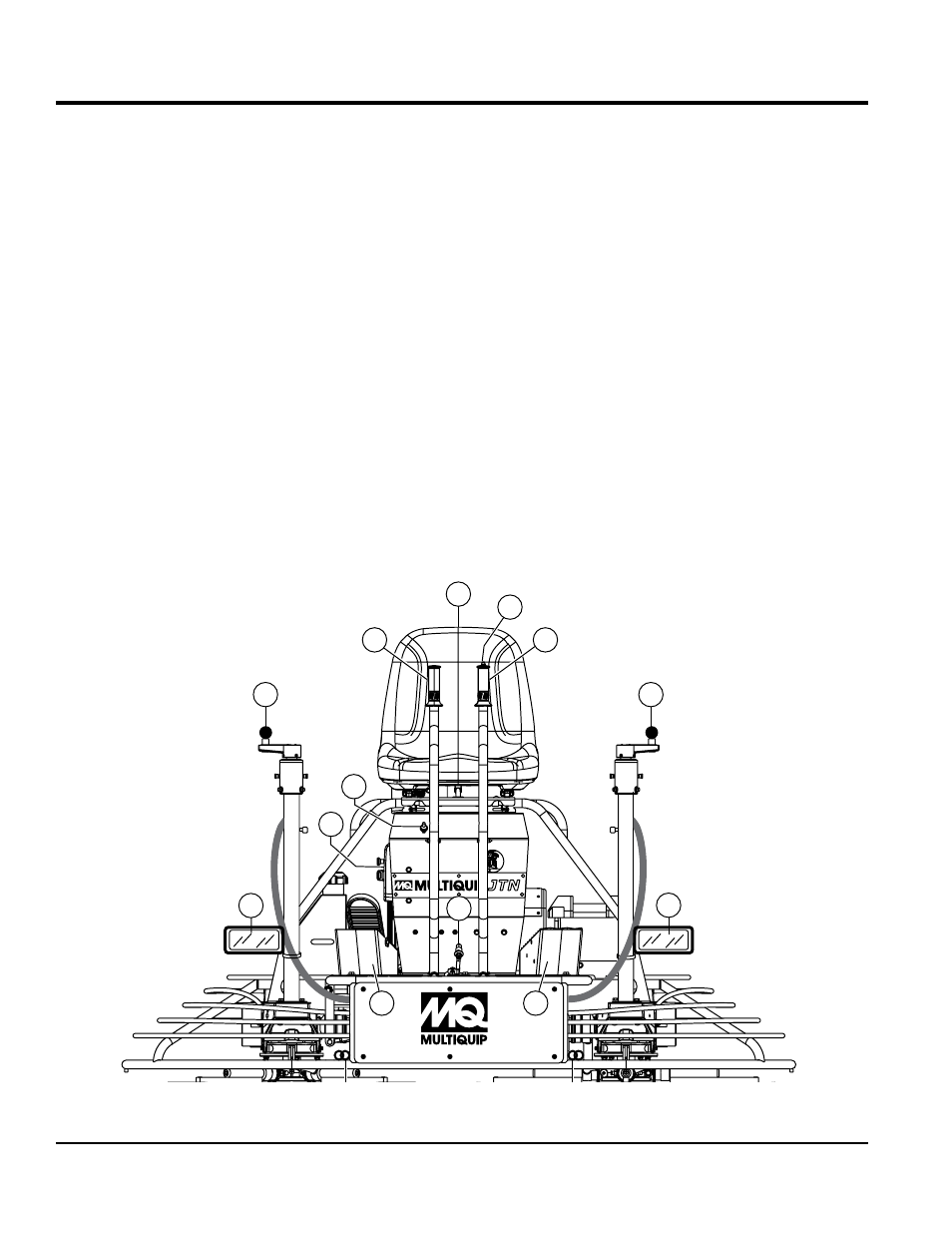

Figure 2. Components – Front
1
2
3
4
5
6
7
8
10
11
4
12
9 9
3
