Handling the Steps
3. Attach the chains to the customer-supplied hoist rings (M16) on the
Integrated Operations Platform and hang the other end on the hook.
4. Raise the hook slowly and move the platform to its final location.
5. Put the platform down and take off the chains. Adjust the levelness with the
feet under the platform.
6. Contact MTS Systems Corporation to arrange for installation services.
Note
If you can guarantee the safety, other tools such as a platform vehicle
and pallet jack can also be used to move the Integrated Operations
Platform to its final location.
Handling the Steps
If you purchased the steps, unload them using the proper method (see the
Integrated Operations Platform unloading for reference). Put the steps in a
suitable place and wait for an MTS field service engineer to install them.

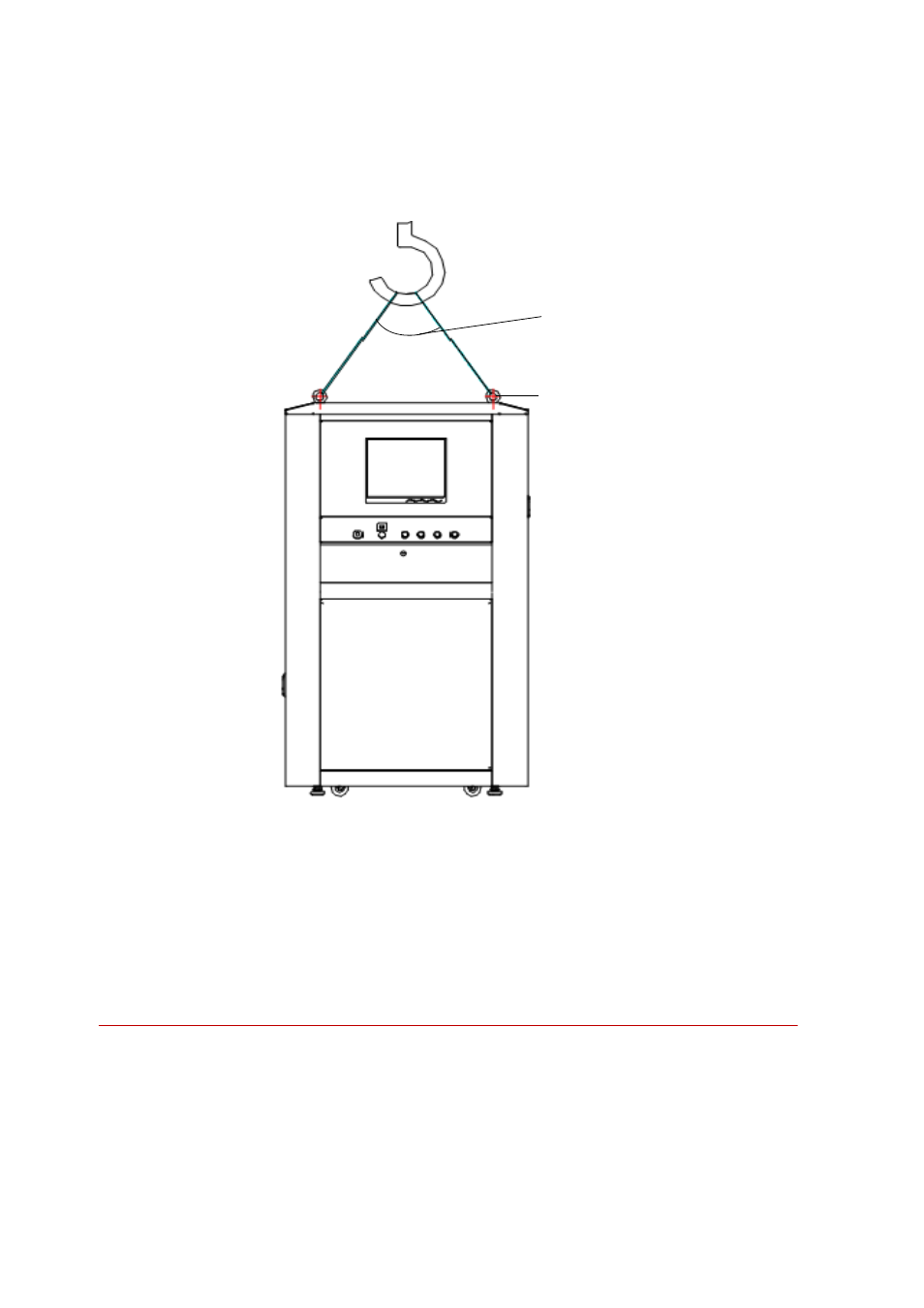

Hoist Ring of
M16
Do not exceed 30
o
