Handling the Load Fame
Moving the Load Unit
To move the load unit to its final location:
1. Unpack the load frame.
Remove the cover boards.
If you ordered the safety enclosure, remove the mounting bolts and take the
enclosure out. Put the safety enclosure in a suitable place; an MTS field
service engineer will install it for you.
2. Remove the mounting bolts for the frame. Attach the customer-supplied
hoist rings (M30 for C64.305/C64.305EL, M36 for C64.605/C64.605EL

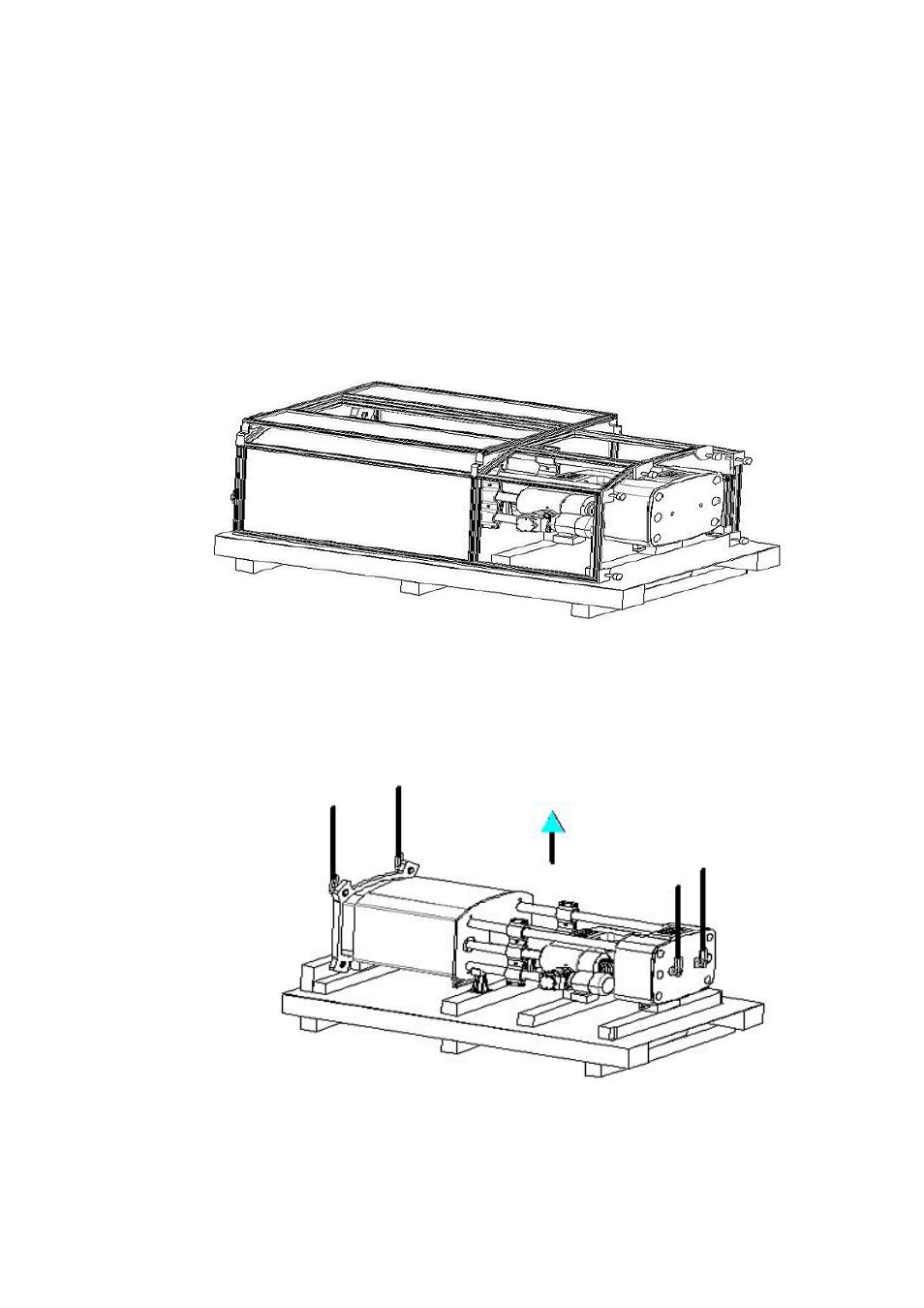

and C64.106/C64.106EL) to the load frame as shown in the following
figure. Tie suitable slings to the hoist rings and lift the frame. Remove the
pallet under the frame.
Note
The customer should not remove these clamps.
