MTS SWIFT 50 GLP Sensor Heavy Trucks User Manual
Page 45
Road and Track Vehicles
SWIFT 50 GLP Sensors
Installation
45
C.
Place the top plate, with extensions attached, over the standoffs.
Orient the top plate such that the Board A extension (see the labeling
on the top plate) is aligned with the Board A connector on the
transducer.
Note
Use care when installing the top plate and extensions. The 9-pin
connectors are keyed. The top plate and extensions should be fitted on
straight (without bending or angling it) to make sure they engage the four
connectors simultaneously and evenly.
D.
Secure the top plate to the standoffs using the four M12 bolts and
washers.
Lubricate the threads with Molykote g-n paste and torque to 93 N•m
(69 lbf•ft).

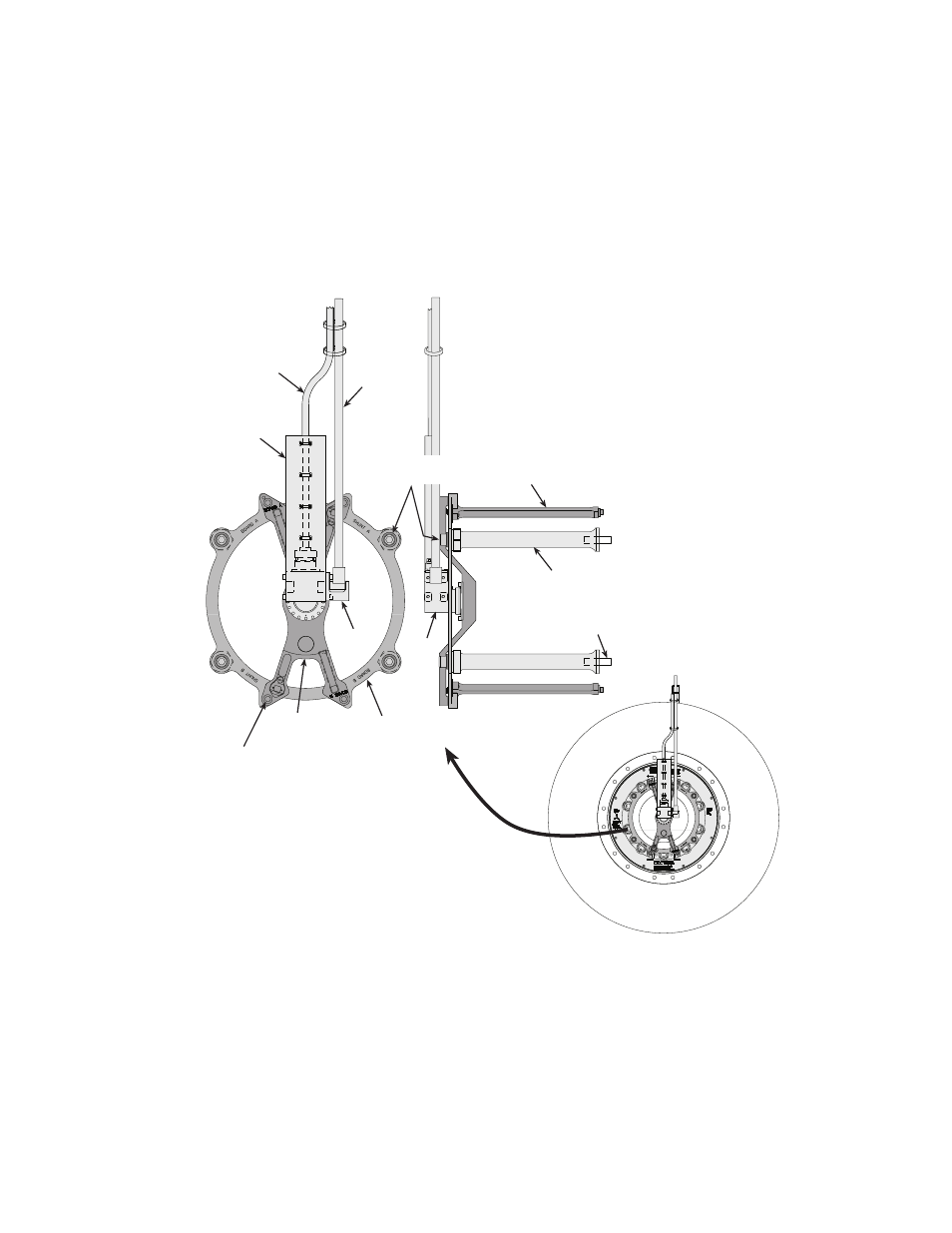

Standoffs (4)
Top Plate
Slip-Ring
Bracket
M12 Threaded
Studs (4)
Extension
Brackets (4)
S50-40
M12 Bolts (4)
and Washers
Anti-rotate
Hinge
Assembly
Tube
Cable
Cable
Conduit
Bracket
Slip
Ring
Hinge
M8 Bolts (4)
