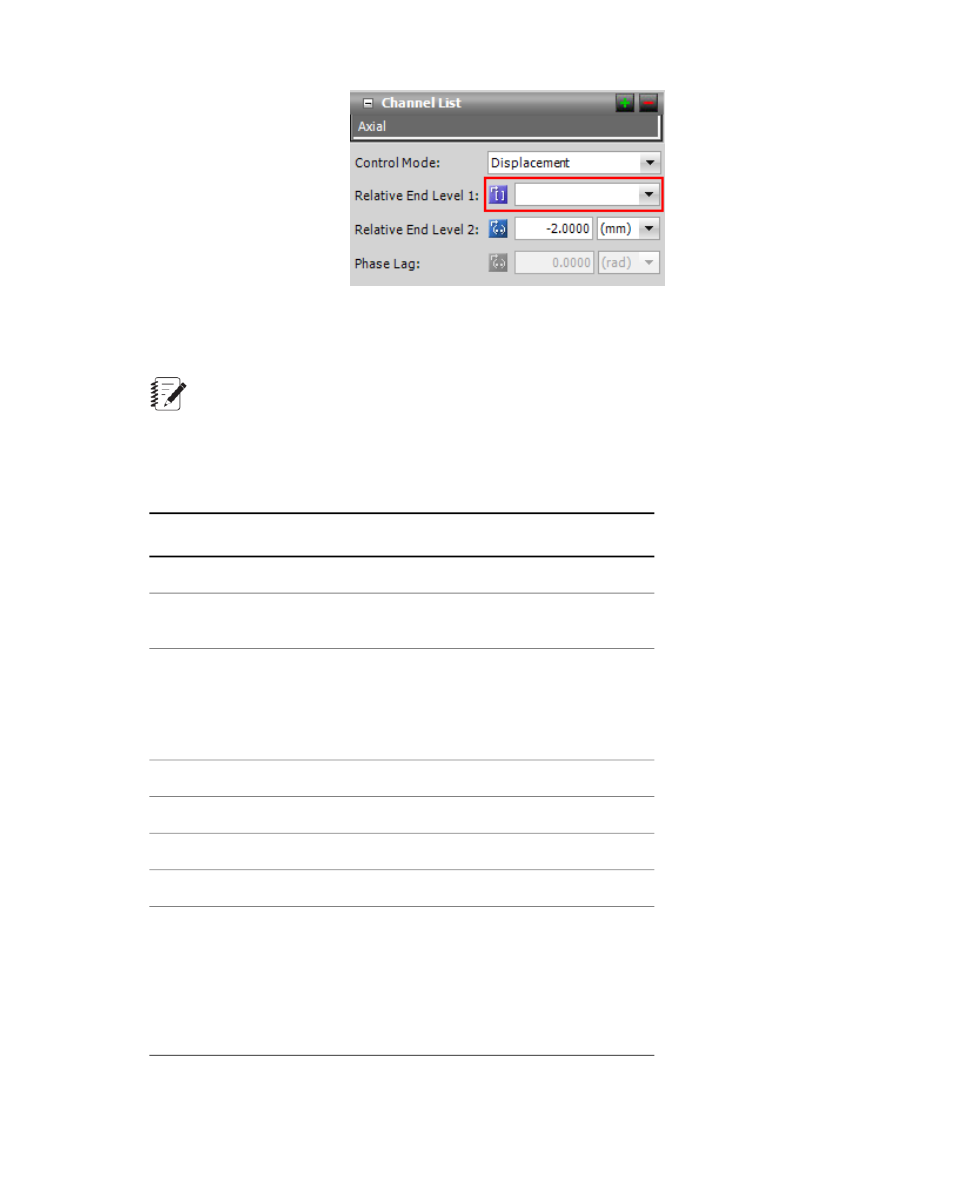

Relative End Level 1 Ready for Variable
5. Click the Relative End Level 1 entry box and select .
Note:
If a preexisting variable was available for this property, it would appear in the list with .
6. Observe the New Numeric Variable window, and enter the following as necessary:
New Numeric Variable Window Properties
Notes Value Property
Variables Category
This is the internal name of the variable.
It cannot contain spaces. EndLevel1 Identifier
This is the name as it appears in variable
lists. The application creates it from the End Level 1 Display Name
label name and adds spaces where
appropriate.You can rename the Display
Name as desired.
None Description
Number Type
Length Dimension
mm Unit
This sets the initial value of End Level 1
to 2 mm, which is the same value you 2.00 Default Value
entered on the Properties tab when you
originally defined the Cycle activity.
However, now the End Level 1 value
changes whenever the operator changes
the variable value.
Multipurpose Elite Test Design Guide 51
5.0 Creating Tests
