MK Diamond ATS Stand User Manual
Page 8
ATS Stand (ATS Stand Part No. – 156426)
Revision 04/01, Effective Date: April 11, 2001
Page 8
ATS STAND
(Document Part Number 158474)

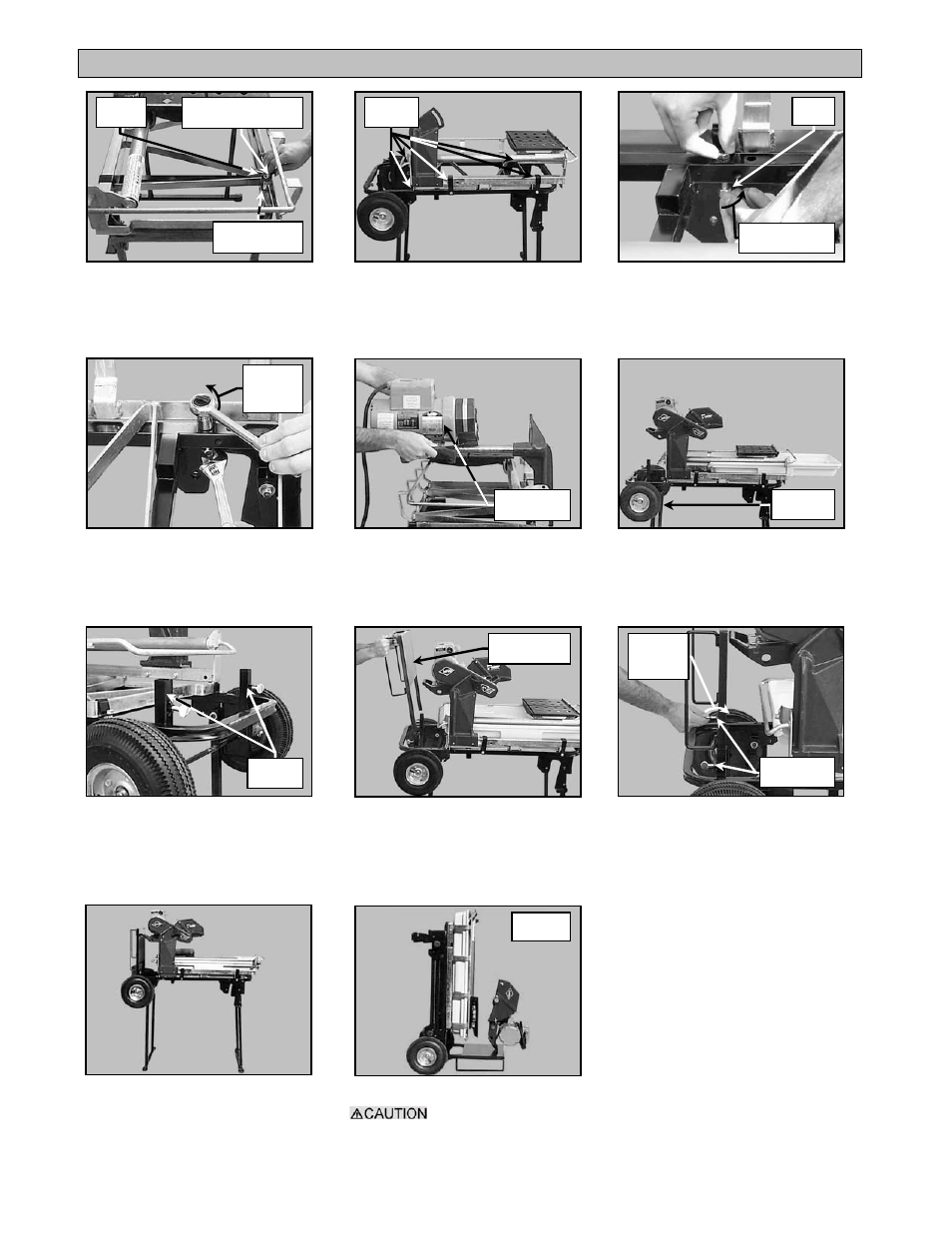

(T)
Ensure all bolts are
tight before placing the ATS Stand
in the transport position
(K)
Verify all brackets are installed
(J)
Install one C Bracket and a Bolt
into the top, front, of the ATS
Stand as shown
(L)
Install one Nylock nut on the
Bolt of each bracket
(Do not cross-thread the nut)
(N)
Install the Cutting Head
(See the saw Owners Manual)
(M)
Using a 9/16-wrench and socket,
tighten all Bolts
(O)
Install the Water Pan
(Q)
Orient and install the ATS
Stand Support Plate as shown
(P)
Locate the ATS Stand Support
Plate retaining tubes on the back
of the ATS Stand
(R)
Tighten the ATS Stand Support
Plate retaining thumbscrews
as shown
(S)
Setup Complete
Fit bracket
over saw frame
Bracket
C
Bracket
locations
Rotate clockwise
to install
Nylock
nuts
Rotate
clockwise
to tighten
Install
Cutting Head
Installation
Direction
Retaining
Tubes
ATS Stand
Support Plate
Retaining
Thumbscrew
Rotate
clockwise
to tighten
Install into front hole
on right side of stand
Transport
Position
