ATS Stand (ATS Stand Part No. – 156426) Revision 04/01, Effective Date: April 11, 2001 Page 11
ATS STAND (Document Part Number 158474)

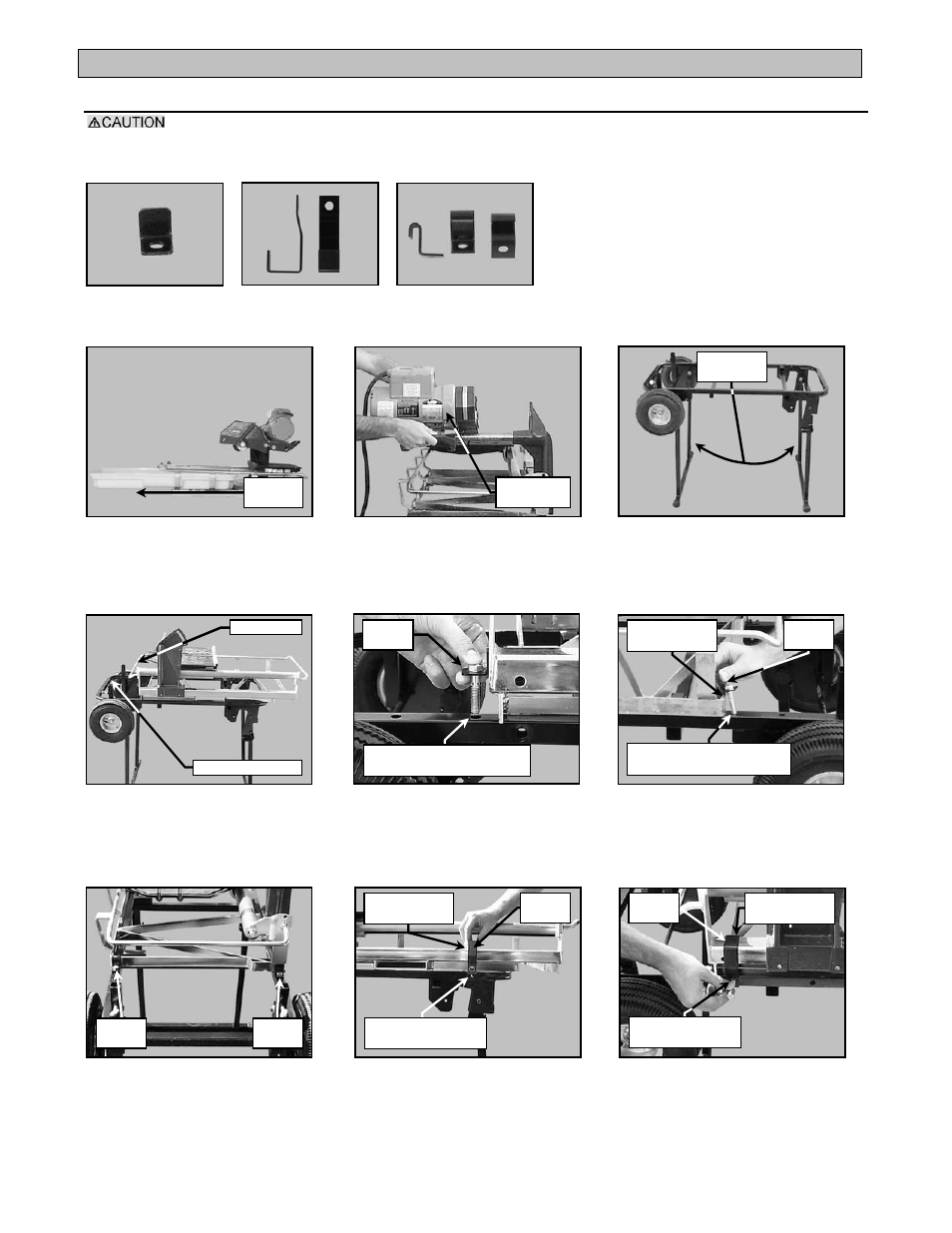

MK-101 Pro and MK-115 Pro:
To ensure stability, verify front and rear legs of the ATS Stand are fully extended outward before
installing the saw.
NOTE: The following Brackets are required for fastening the saw to the ATS Stand -
(B)
Remove the Cutting Head
(See the saw Owners Manual)
(C)
Verify ATS Stand legs are
fully extended for stability
(A)
Remove Water Pan
(E)
Install the Bracket A and a Bolt
into the top, rear, of the ATS
Stand as shown
(F)
Install one C Bracket and a Bolt
into the top, rear, of the ATS
Stand as shown
(D)
Seat saw on the ATS
Stand as shown
(H)
Install one B Bracket and a Bolt
into the front, side, of the ATS
Stand as shown
(G)
Verify the rear brackets are
installed correctly
Removal
Direction
(I)
Install one B Bracket and a Bolt
into the rear, side, of the ATS
Stand as shown
Remove
Cutting Head
Extend legs
outward
Back of saw
Back of ATS Stand
Bracket
A
Bracket
C
Fit bracket
over saw frame
Bracket
C
Bracket
A
Fit bracket
over saw frame
Bracket
B
Install over front hole
on left side of stand
Bracket
B
Fit bracket
over saw frame
Install into second hole from
the end on right side of stand
Install into second hole from
the end on left side of stand
2
C Brackets
2
B Brackets
1
A Bracket
Install into rear hole
on left side of stand
