MK Diamond ATS Stand User Manual
Page 4
ATS Stand (ATS Stand Part No. – 156426)
Revision 04/01, Effective Date: April 11, 2001
Page 4
ATS STAND
(Document Part Number 158474)

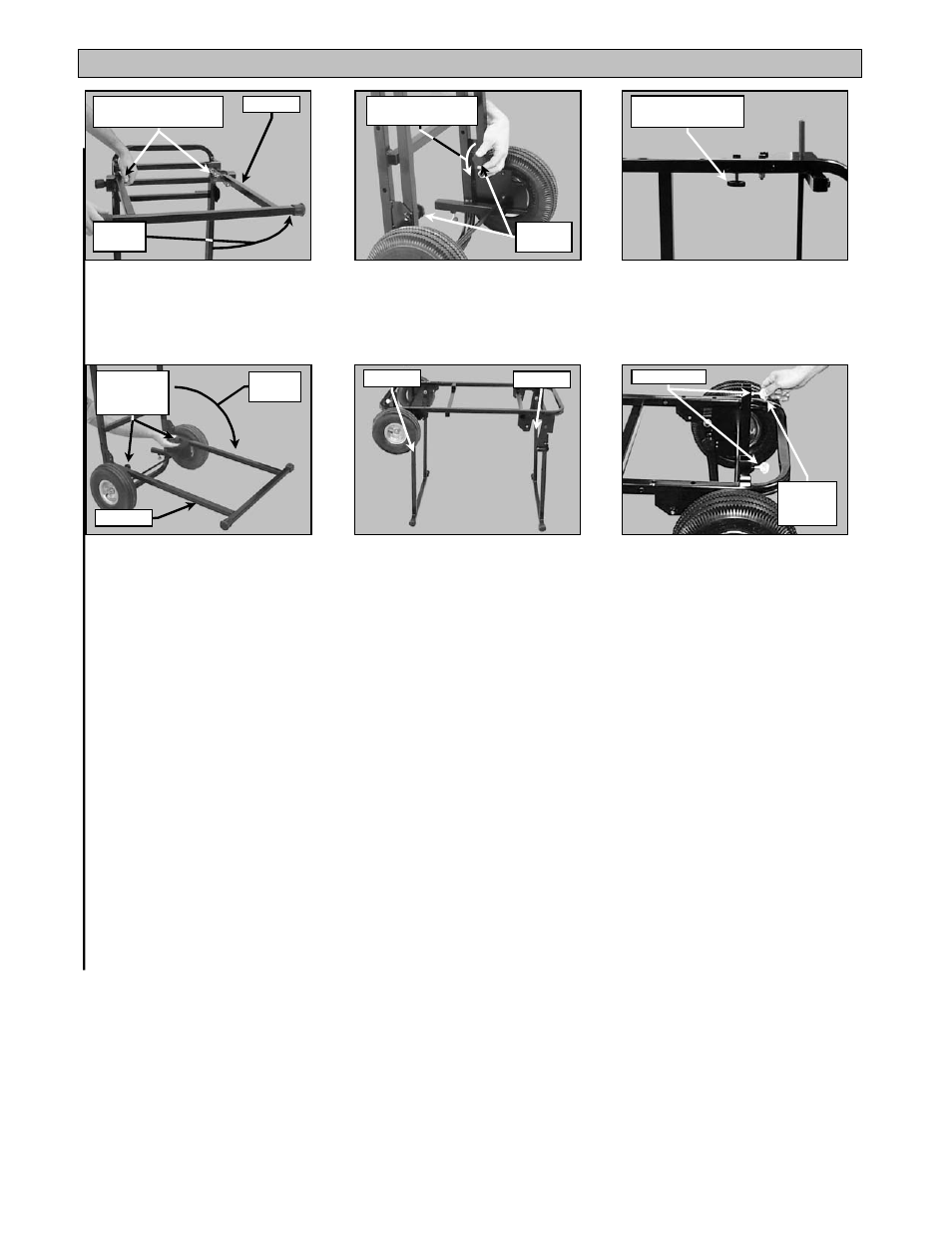

(G)
Rotate the Rear Leg down and
Tighten the Retaining Knobs
(E)
Loosen the two Rear Leg
Retaining Knobs
(H)
Place ATS Stand on legs
Retaining
Knob
Rotation
Direction
Rotate Knob
clockwise
to tighten
Rear Leg
Rear Leg
Front Leg
Rotate counter-
clockwise to loosen
(I)
Install the ATS Stand Support
Plate Thumbscrews
Thumbscrew
(D)
Rotate Front Leg up and
tighten the Retaining Knobs
Rotation
Direction
Rotate Knob clockwise
to tighten
Front Leg
(F)
Verify the Retaining Knob is
Loose (Do not remove the
Retaining Knob)
Verify the Retaining
Knob is loose
Rotate
clockwise
to install
