MK Diamond ATS Stand - Manual (Page 2)

ATS Stand (ATS Stand Part No. – 156426) Revision 04/01, Effective Date: April 11, 2001 Page 2
ATS STAND (Document Part Number 158474)
The MK Diamond ATS Stand is designed for use with the following MK Diamond products – MK-100, (Part No.
158189), MK-101 (Part No. 151991), MK-101Pro (Part No. 155747), MK-101 Pro24 (Part No. 153243), MK-115
Pro24 (Part No. 150341), MK-880 (Part No. 153261), MK-1080 (Part No. 153203), MK-2001 (Part No. 150597),
and MK-2002 (Part No. 150598),
NOTE: If problems arise during the assembly of the ATS Stand, contact the MK Diamond Service Center –
(800) 474-5594

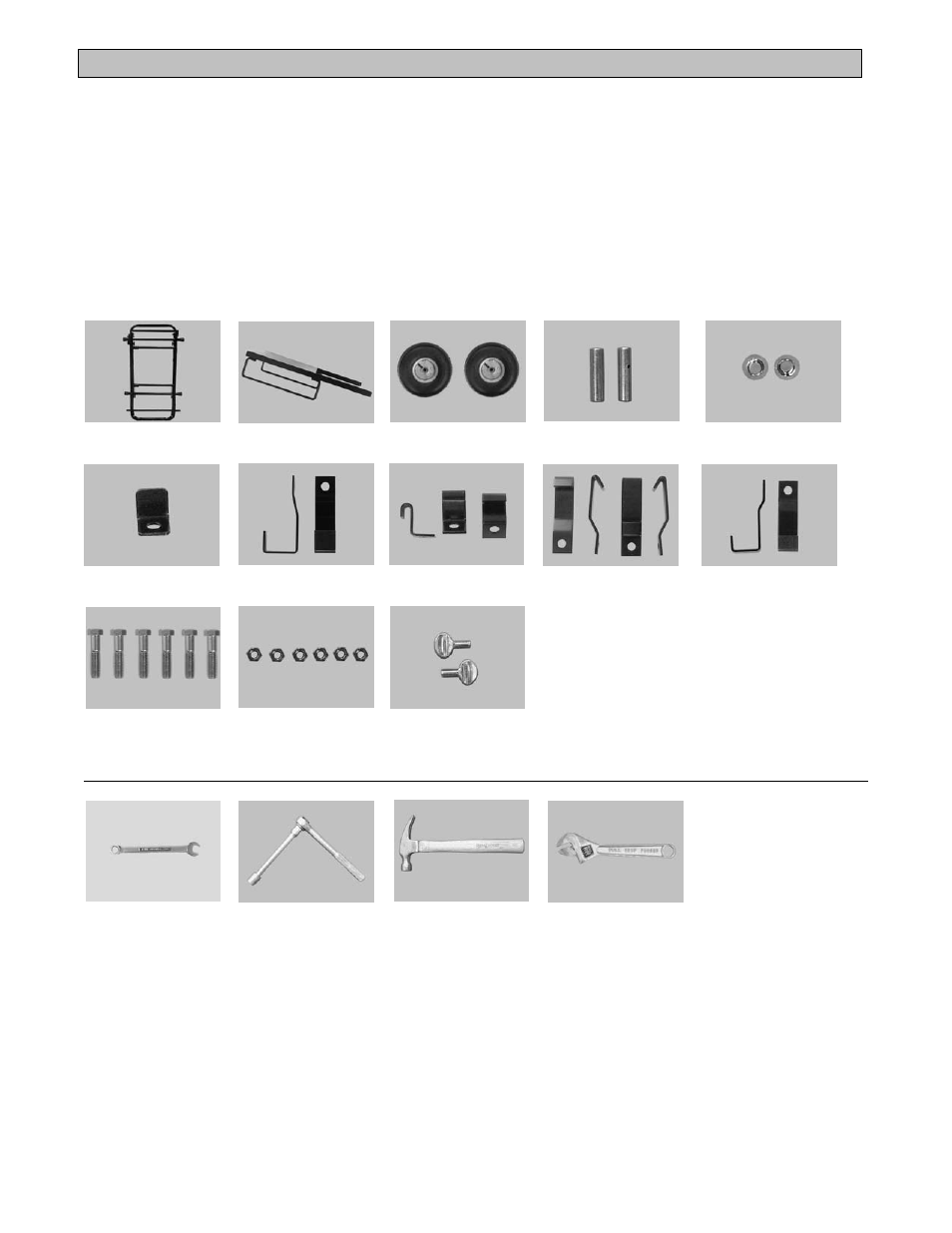

CONTENTS:
one (1) ATS stand frame, one (1) ATS stand support plate, two (2) inflatable tires, two (2) tire retaining caps, one
(1) rear stop/register – A bracket, two (2) B brackets, three (3) C brackets, four (4) D brackets, two (2) F
brackets, six (6) hex-head bolts, six (6) nylock nuts.
ATS Stand
Frame
ATS Stand
Support Plate
Inflatable
Tires (2ea)
Shaft Sleeves
(2ea)
Tire Retaining
Caps (2ea)
Rear Stop/Register,
Bracket A (1 ea)
Bracket B
(101 series 2ea)
Bracket C (101 &
1080 series 3ea)
Bracket D (2000
series -4ea)
Bracket F (1080
series – 2ea)
Hex-head Bolts
(6ea)
Nylock Nuts
(6ea)
Thumbscrews
(2ea)
Tools Needed:
9/16-inch
Wrench
9/16-inch Ratchet
with Extension
Hammer Adjustable Wrench
(optional)
