ATS Stand (ATS Stand Part No. – 156426) Revision 04/01, Effective Date: April 11, 2001 Page 10
ATS STAND (Document Part Number 158474)

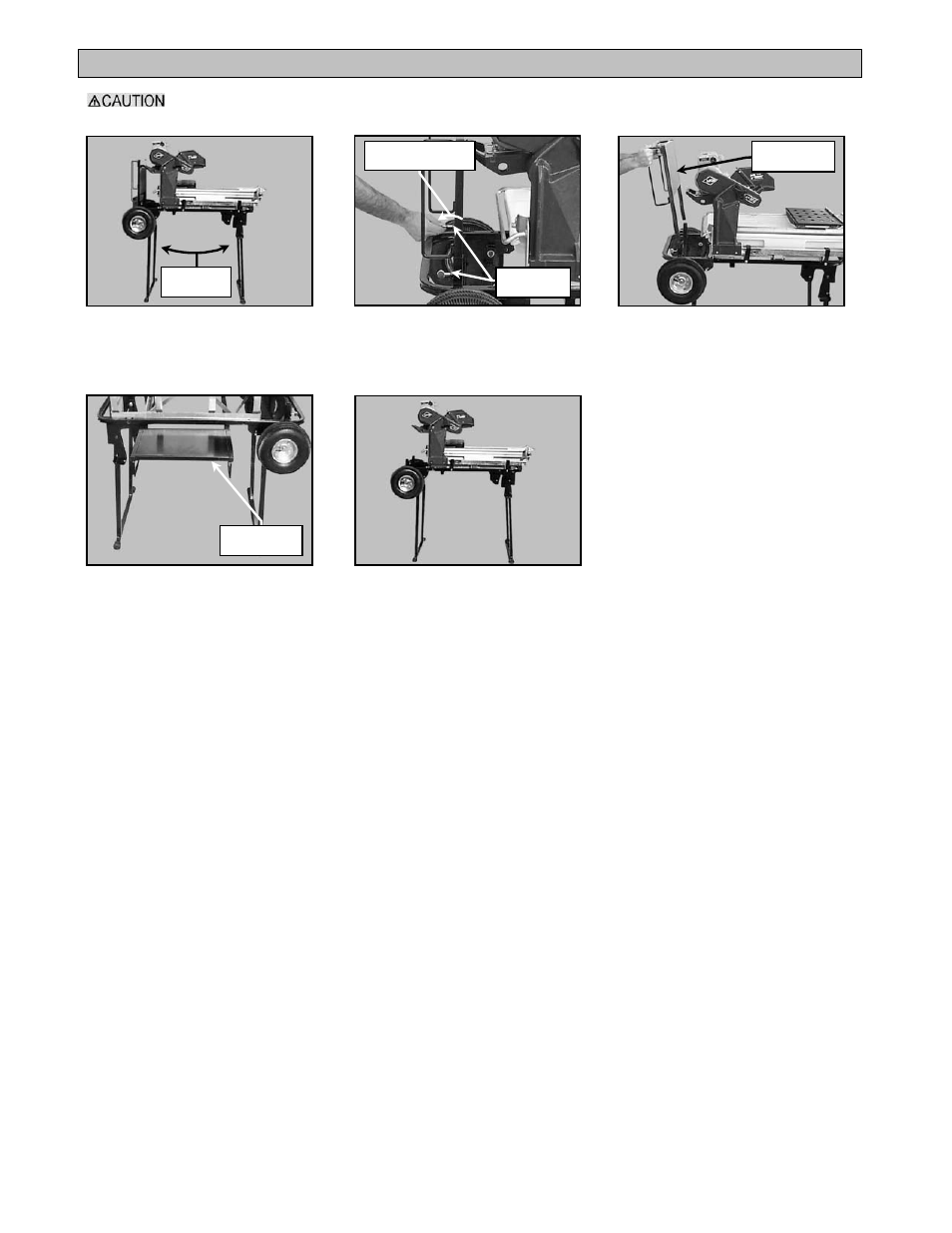

To ensure stability, verify front and rear legs of the ATS Stand are fully extended outward before
installing the saw.
NOTE: When work is complete, place the ATS Stand in the transport position by following steps A through J in
reverse order.
Retaining
Thumbscrew
(G)
Verify ATS Stand legs are
fully extended for stability
Extend legs
outward
(H)
Loosen the ATS Stand Support
Plate retaining thumbscrews
as shown
Rotate counter-
clockwise to loosen
(I)
Remove the ATS Stand
Support Plate as shown
ATS Stand
Support Plate
(J)
Install the ATS Stand Support
Plate into the right side of the
ATS Stand as shown
ATS Stand
Support Plate
(K)
Setup the saw for normal
operation in accordance with
the saw Owners Manual
