MK Diamond ATS Stand - Manual (Page 21)

ATS Stand (ATS Stand Part No. – 156426) Revision 04/01, Effective Date: April 11, 2001 Page 21
ATS STAND (Document Part Number 158474)

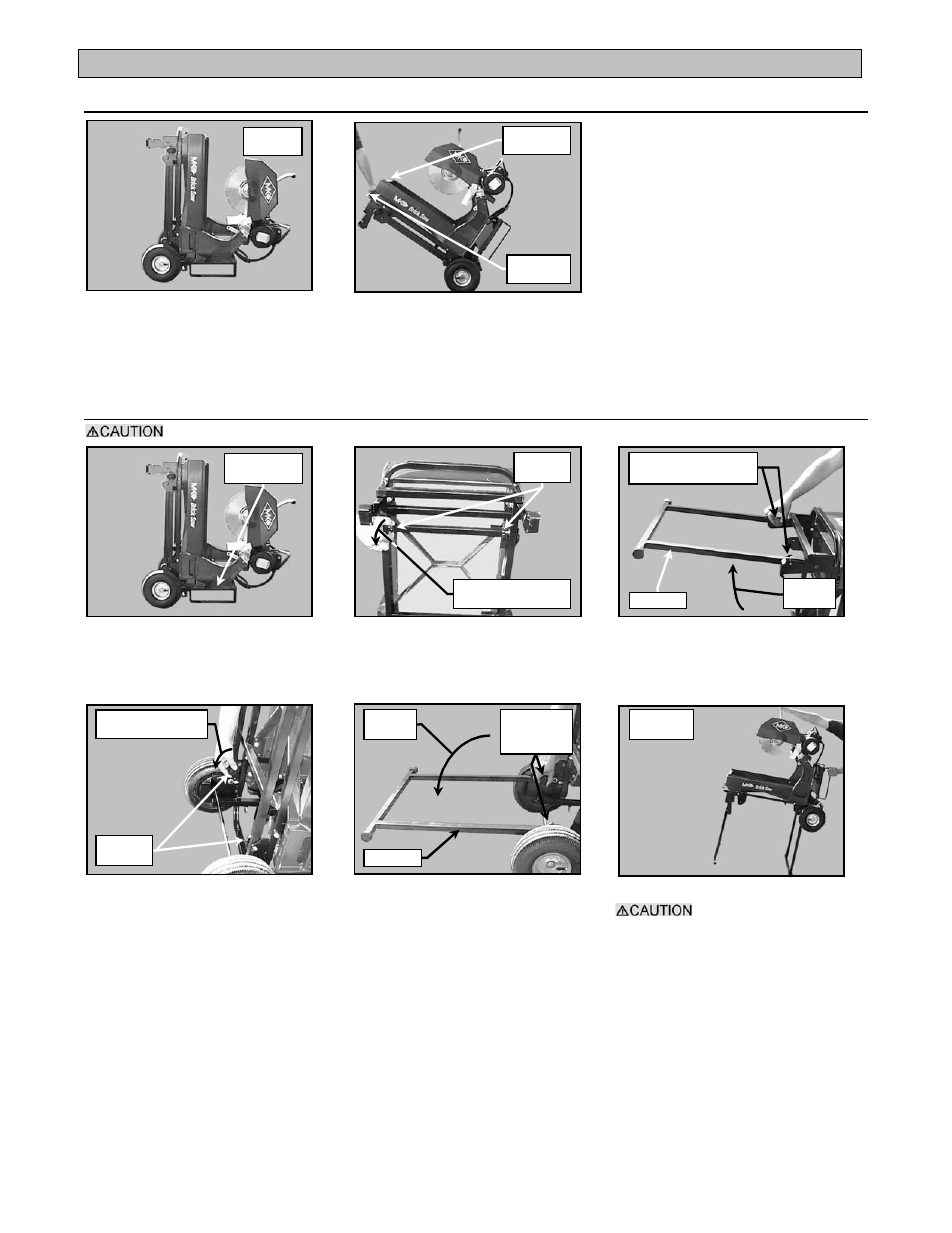

Transport the MK-2000 using the ATS Stand:
Setup/Takedown of the MK-2000 and ATS Stand:
Ensure all bolts are tight before repositioning the ATS Stand.
Transport
Position
(A)
ATS Stand in Transport Position
(B)
Transport the ATS Stand by the
front of the saw frame or by the
ATS Stand handle
(A)
Rest ATS Stand on the
Support Plate
ATS Stand
Support Plate
(B)
Loosen the two Front Leg
Retaining Knobs
(C)
Rotate Front Leg up and
tighten the Retaining Knobs
Retaining
Knob
Rotate counter-
clockwise to loosen
(E)
Rotate the Rear Leg down and
Tighten the Retaining Knobs
(D)
Loosen the two Rear Leg
Retaining Knobs
Rotate Knob
clockwise
to tighten
(F)
Use proper lifting
techniques when repositioning
the ATS Stand
Reposition
ATS Stand
Front of
Saw Frame
ATS Stand
Handle
Rotation
Direction Front Leg
Rotate Knob clockwise
to tighten
Rotation
Direction
Rear Leg
Retaining
Knob
Rotate counter-
clockwise to loosen
