33
MK-101 MaiNTeNaNCe
MK-101 is designed with a power transmission V-belt. In order to ensure the MK-101 operates at
peak efficiency, the V-belt should be inspected monthly, and change if the V-belt shows damage
and/or excessive wear.
NOTe: 1. When a new belt is installed, it should be inspected and re-tensioned after the first
forty-eight (48) hours of operation.

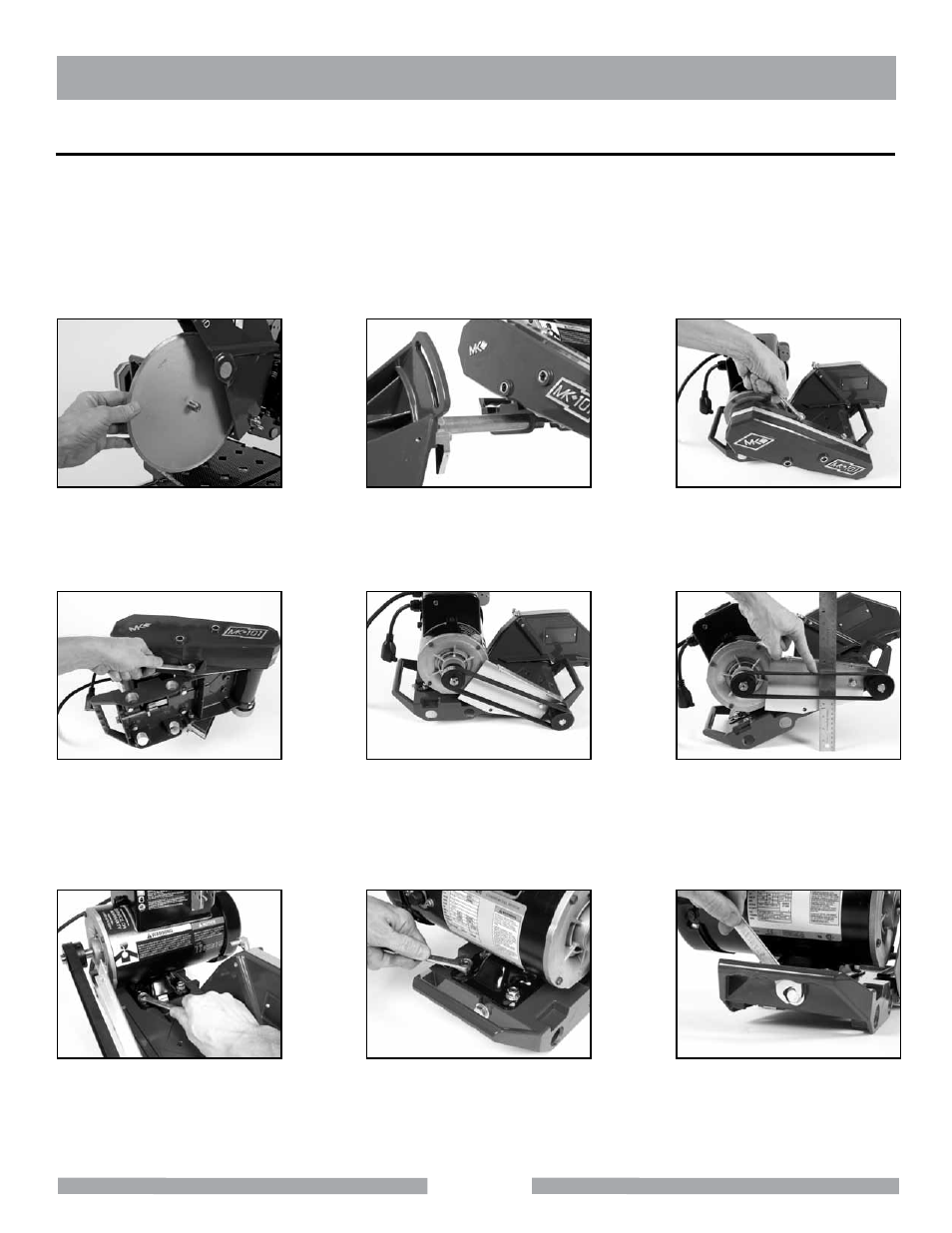

BelT iNSPeCTiOiN, aDJSTMeNT aND RePlaCeMeNT
(A)
Remove the Diamond Blade
(B)
Remove the Cutting Head (See
Adjusting the Cutting Head)
(C)
Remove the two top Belt Guard
Bolts
(D)
Remove Belt Guard bottom bolt
(E)
Inspect the Micro-V Belt for
cracks, fraying, separation and
wear. Go to step H if replacement
is required
(F)
Check belt for proper tension. If tension
correct, go to step Q (proper tension
should be 1/8-inch
deflection)
(G)
Loosen the two front motor
mounting bolts. If re-tensioning
only, go to step N
(H)
Loosen the two back motor
mounting bolts
(I)
Loosen the Motor Adjustment Strap
