16

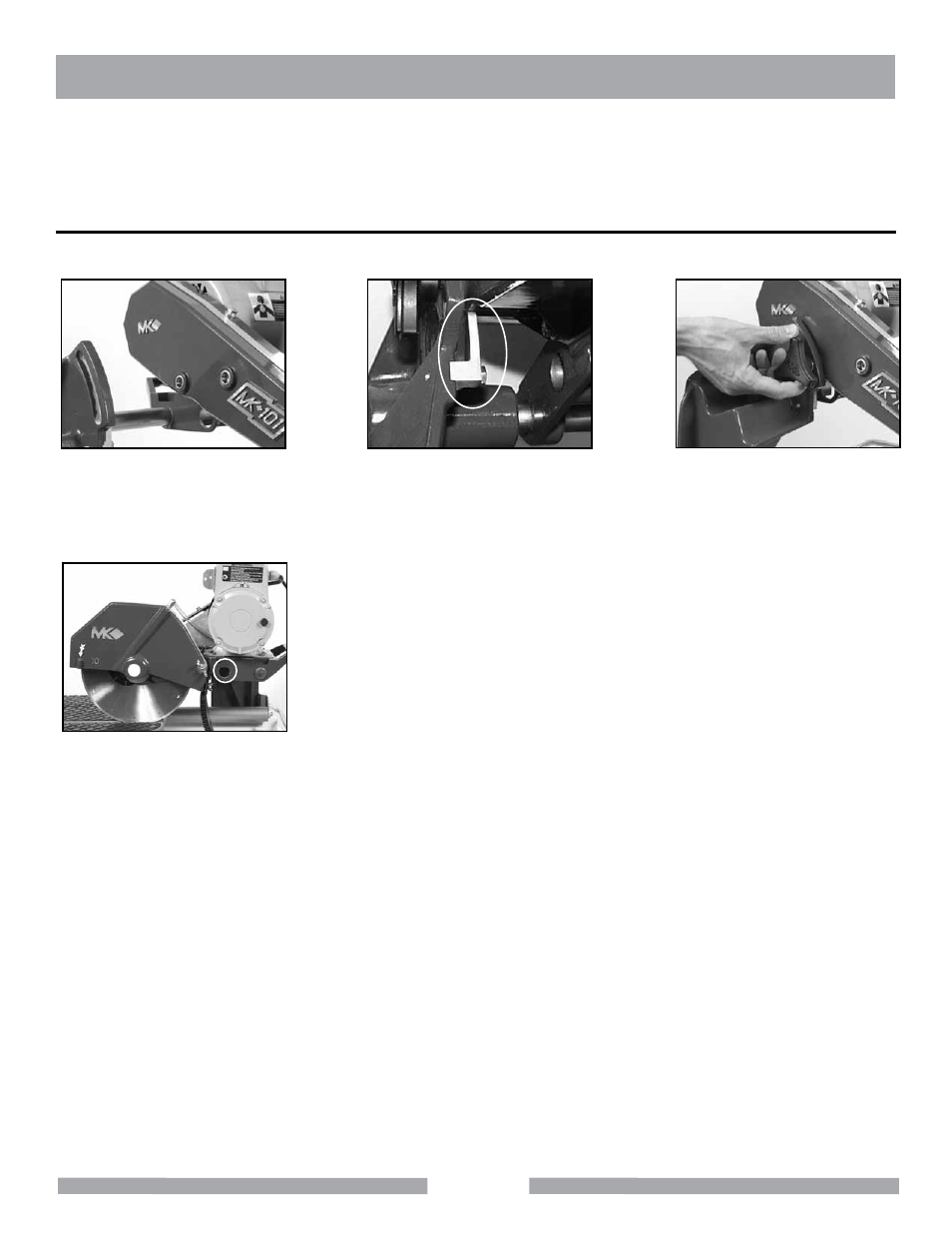

CUTTiNG HeaD iNSTallaTiON
(A)
Align Cutting Head rear Pivot
Hole to the Post Pivot Shaft
and slide onto shaft
(B)
Ensure Cutting Head Stop is
in upward position
(C)
Install the Cutting Head onto
the Post Pivot Shaft and install
the Adjusting Knob
(D)
For maximum cutting length,
the Cutting Head should be
in the front pivot hole and the
Post should be in the rear post
retaining hole.
NOTe: For small tiles (6" tile or smaller) the Cutting Head
should be in the rear pivot hole and the Post
should be in the forward post retaining hole. For
large tiles and maximum cutting length, the Cutting
Head should be in the front pivot hole and the Post
should be in the rear post retaining hole.
NOTe: Move Cutting Head Stop in upward position when
using rear pivot hole and in the down position
when using front pivot hole, refer to page 24.
MK-101 aSSeMBlY
NOTe: If the cutting head is installed, go to the next step.
Follow the assembly instructions to prepare your MK-101 for operation.
