Page 18
18
MK-101
aSSeMBlY

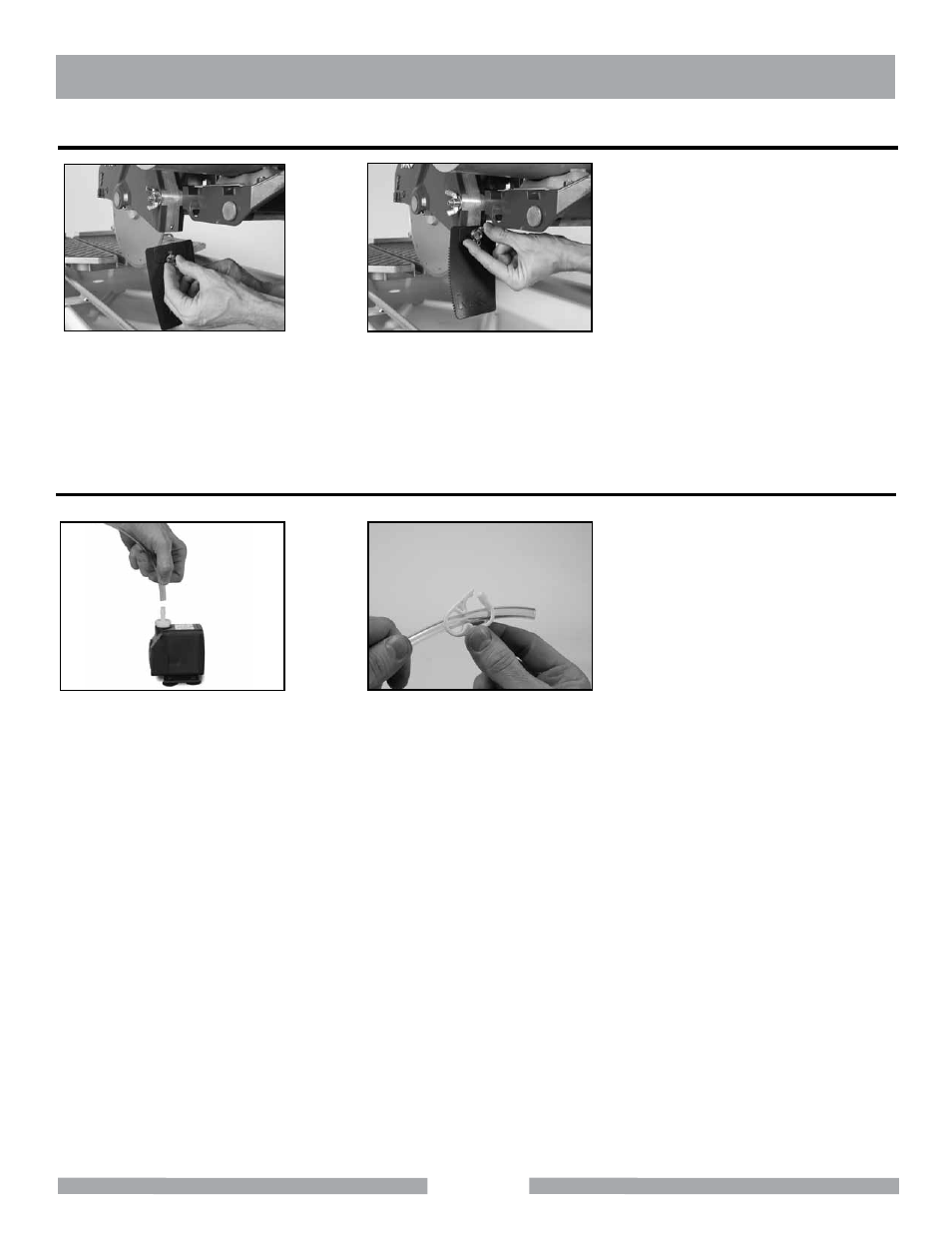

(A)
Install the retaining thumbscrew
through the washer and Splash
Guard then align to the
hole found on back of the
Blade Guard
(B)
Install the Splash Guard onto
the Blade Guard
waTeR PUMP PRePaRaTiON
SPlaSH GUaRD iNSTallaTiON
(A)
Press one end of the Cooling
Transfer Tube into the Water
Pump Discharge Fitting
(B)
Slide Cooling Flow Adjusting
clamp on to the Cooling Trans-
fer Tube
