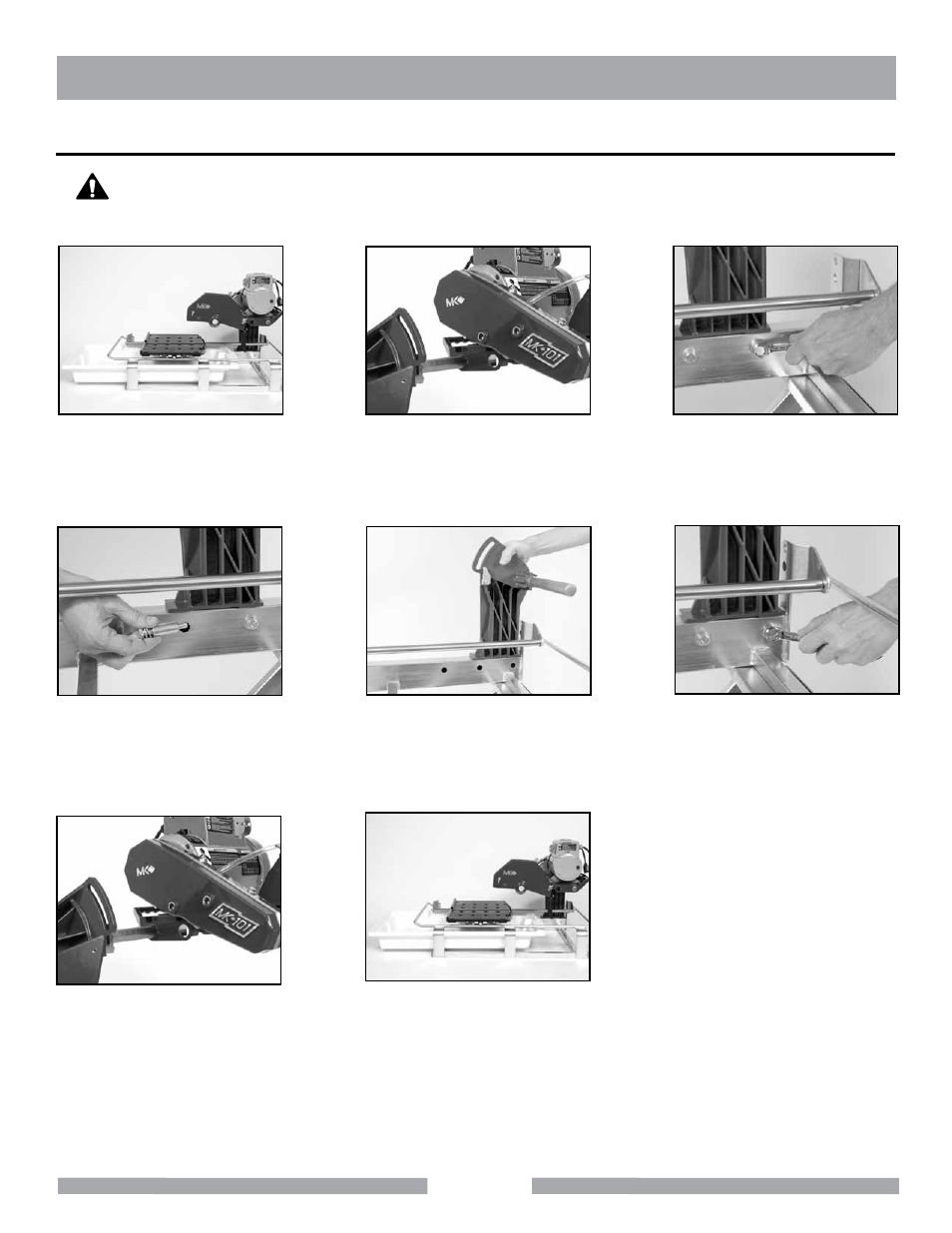

MK-101 aDJUSTMeNT
The Cutting Head and Post are heavy. Care must be used when changing the
position of the Cutting Head.
CaUTiON
(A)
Remove Water Basin
(B)
Remove the Cutting Head (See
Adjusting the Cutting Head)
(G)
Install the Cutting Head in rear
Pivot Hole (See Adjusting the
Cutting Head)
(H)
Install the Water Basin and
blade
aDJUSTiNG THe POST FOR MaXiMUM CUTTiNG leNGTH
(C)
Loosen the Retaining Bolts.
(D)
Remove both the Standoffs and
Retaining Bolts.
(E)
Relocate the Post to the rear
Post retaining holes. Insert
Standoffs and Retaining Bolts
(F)
Secure the Post Support by
tightening Retaining Bolts.
