22
MK-101 OPeRaTiON
DO NOT FORCE THE TOOL. It will do the job better and safer at the rate for
which it was designed.

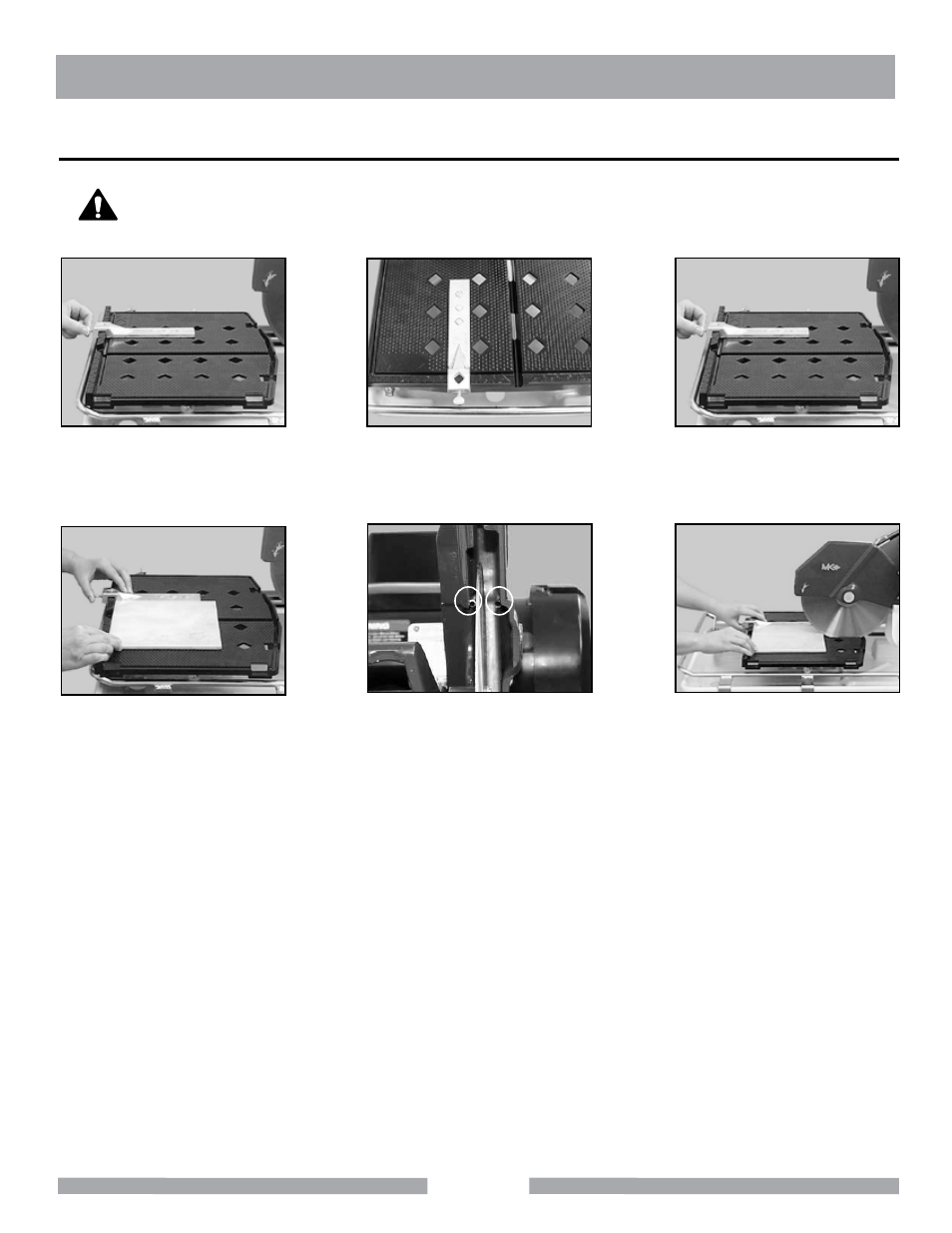

(A)
Loosen the Adjustable Cutting
Guide retaining thumbscrew
(B)
Position the Adjustable Cutting
Guide to desired cut length
(C)
Tighten the retaining
thumbscrew
(D)
Place the tile against the
Ruler/Stop and Cutting Guide.
Turn the motor ON
(E)
Verify proper cooling flow on
both sides of the blade (See
Maintenance Section to in-
crease/decrease flow)
(F)
Perform the cut. Turn the motor
OFF when work is complete
CAUTION
CUTTiNG STRaiGHT eDGeS
