Page 25

MK-101

OPeRaTiON

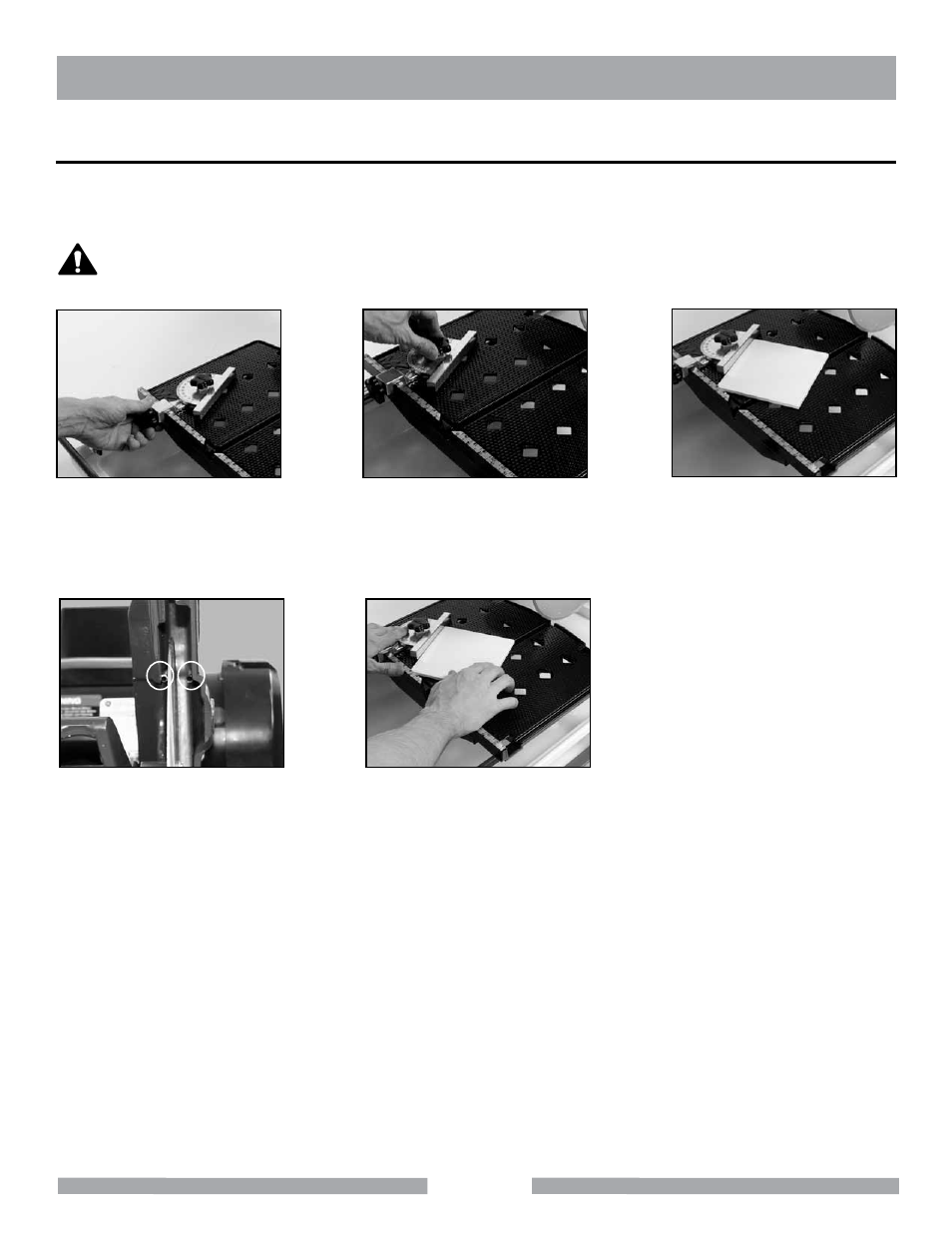

NOTe: To cut angles other than 45º angles or Miters, a 90º Protractor (MK Diamond Part No.

134569-MK) should be used.

(C)

Position the tile against the 90º

Protractor and the Ruler/Stop

(D)

Turn the motor ON. Verify

proper cooling flow on both

sides of the blade

(A)

Place the 90º Protractor on

the Ruler/Stop

(B)

Set the desired angle and

tighten the thumbscrew and

tighten retaining thumbscrews

(E)

Perform the cut. Turn the motor

OFF when work is complete

DO NOT FORCE THE TOOL. It will do the job better and safer at the rate for
which it was designed.

CAUTION

OFF-aNGle CUTTiNG
