24

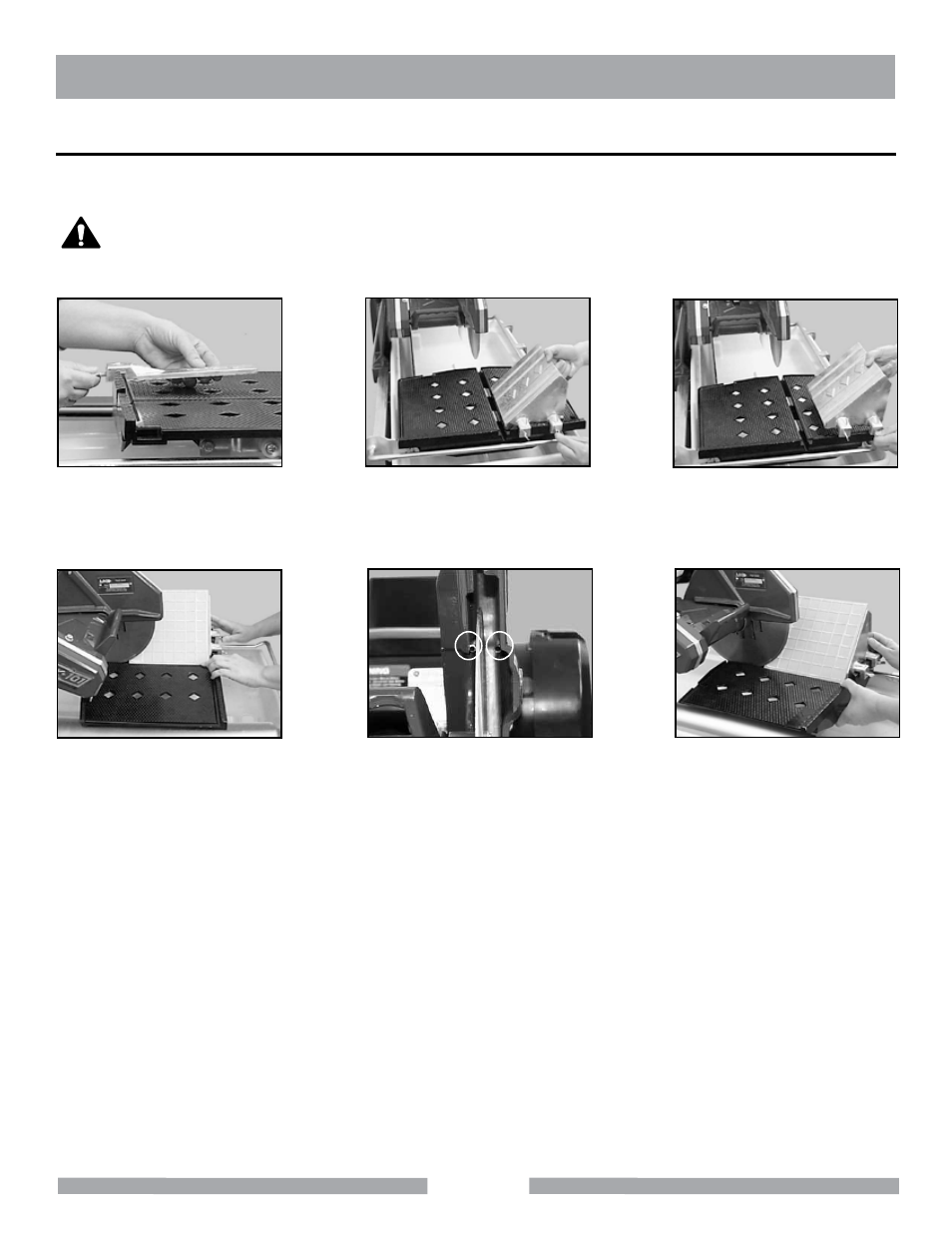

MK-101 OPeRaTiON
NOTe: To cut 45º Miters, the 45º Bullnose Miter Guide (MK Diamond Part No. 134585-MK)
should be used.
(A)
Remove the Adjustable
Cutting Guide
(E)
Verify proper cooling flow on
both sides of the blade (See
Maintenance Section to in-
crease/decrease flow)
(B)
Place the 45º Miter
Guide on the Ruler/Stop
(C)
Position the 45º Miter
Guide and tighten the retaining
thumbscrew
(D)
Position the tile on the 45º
Miter Guide and the
Ruler/Stop. Turn the motor ON
(F)
Perform the cut. Turn the motor
OFF when work is complete
DO NOT FORCE THE TOOL. It will do the job better and safer at the rate for
which it was designed. CAUTION
45° MiTeR CUTTiNG
