Page 2
PPL-2
PRO-LOC I,II
© Metal Sales Manufacturing Corporation/ Subject to change without notice/ Effective Date 9/11
800.406.7387 (Corporate Office) • www.metalsales.us.com
P
anel
o
verview

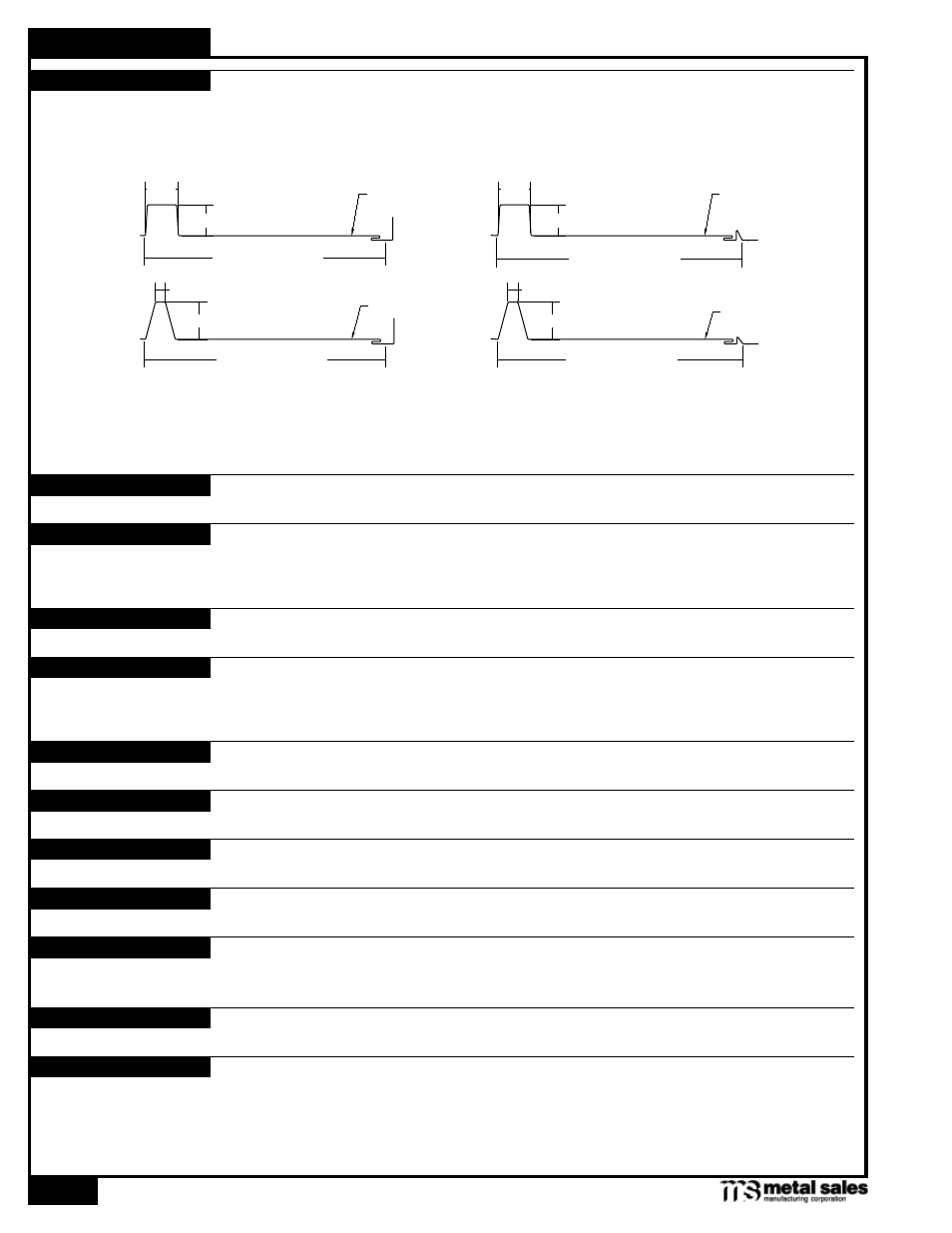

PANEL PROFILES
SLOPE
SUBSTRATE
COVERAGE
LENGTH
AVAILABILITY
APPLICATION
FASTENING SYSTEM
FASTENERS
MATERIALS
FINISH
The minimum recommended slope for any Pro-Loc roofing panel is 3:12.
The recommended substrate is
5
/
8
" plywood with a 30 pound felt moisture barrier. To avoid panel distortion,
use a properly aligned and uniform substructure. Please note that Pro-Loc panels are not recommended
for use over open framing.
Pro-Loc panels have a coverage of 12".
Lengths under 5'-0" are available with some cutting restrictions. Maximum recommended panel length is 45'-0".
Longer panels require additional consideration in packaging, shipping, and erection. Please consult your Metal
Sales branch for recommendations (see PGI-2 and 3 for locations).
Pro-Loc panels are available in 26, 24, and 22 gauge. Minimum quantity may apply.
Architectural and Residential panel.
Concealed Clip System (CCS) or Concealed Direct Fasten (CDF).
The fastener selection guide should be consulted for choosing proper fasteners for specific applications.
Quantity and type of fastener must meet necessary loading and code requirements (see PGI-12-14).
Pro-Loc is available in a (CCS) Concealed Clip System, or as a (CDF) Concealed Direct Fasten.
PERFORMANCE TEST
UL-580 (CCS Only), ASTM E-1592 (15" Only), UL-790, UL-2218, UL-263 & Texas Department of Insurance.
Steel grade 50, per ASTM A-792
*
Acrylic Coated Galvalume
®
(ACG) / ASTM A-792 - AZ55
Prepainted Galvalume / ASTM A-792 - AZ50
**
Fluorocarbon (PVDF)
*
Differential appearance of Acrylic Coated Galvalume roofing materials is not a cause for rejection.
**
Meets both Kynar 500 and Hylar 5000 specifications.
C
C
C
C
Pro-Loc I (CCS)
Pro-Loc I (CDF)
Pro-Loc II (CCS)
Pro-Loc II (CDF)
1
/
2
"
1
/
2
"
1
1
/
2
"
1
9
/
16
"
1
15
/
16
"
1
9
/
16
"
1
15
/
16
"
12" Coverage
12" Coverage
12" Coverage
12" Coverage
1
1
/
2
"
