PRO-LOC I,II

© Metal Sales Manufacturing Corporation/ Subject to change without notice/ Effective Date 9/11

800.406.7387 (Corporate Office) • www.metalsales.us.com

r

akewall

wiTh

r

egleT

f

lashing

d

eTail

e

ndwall

wiTh

C

oUnTer

f

lashing

d

eTail

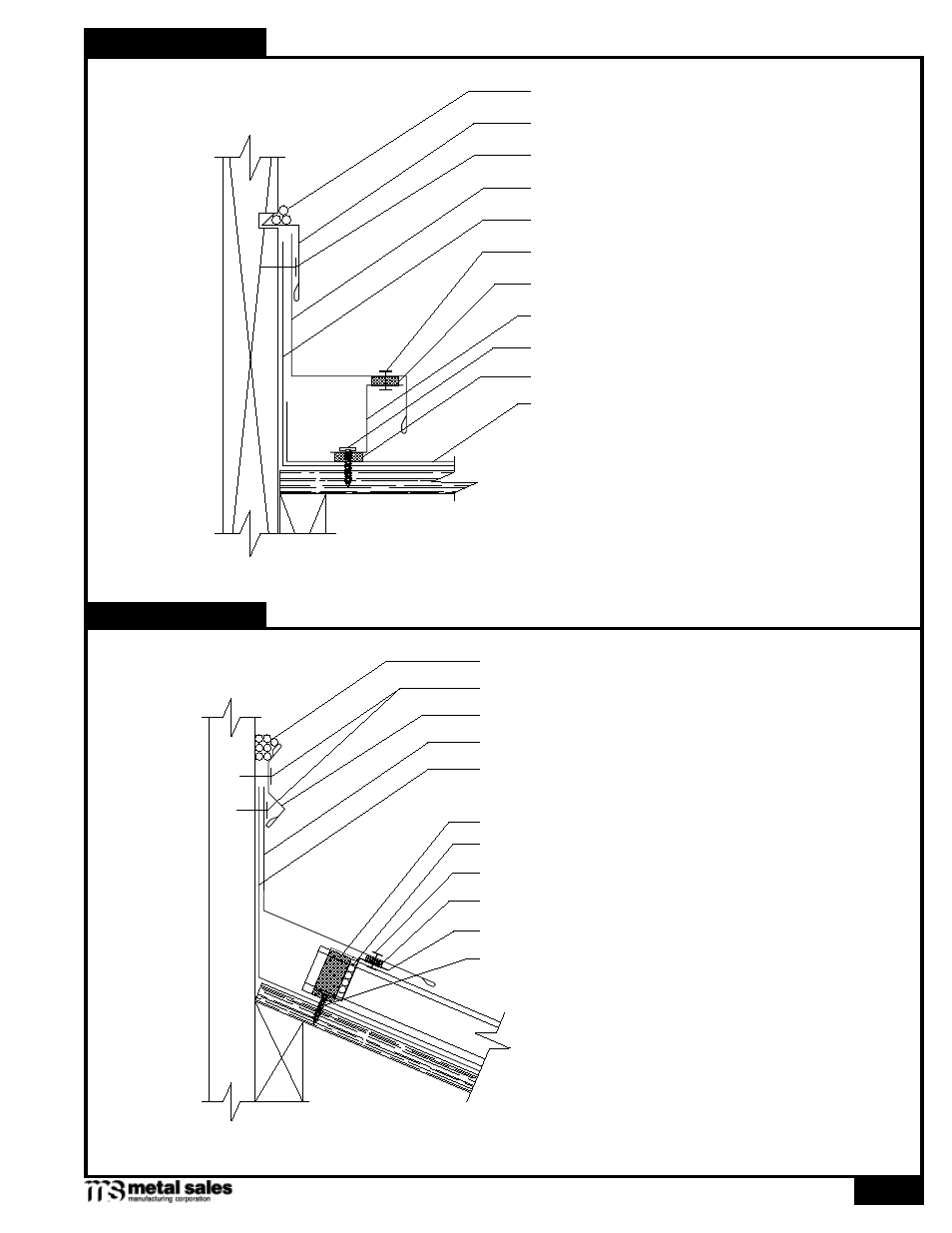

Pro-loC i,ii

3:12 SLOPE

MINIMUM

Pro-Loc Panel (field cut and bend)

Double Bead Tape Sealant

1

/

8

x

3

/

16

" Pop Rivet (1'-0" o.c.)

Pro-Loc Z-Closure

#10-12 x 1" PHW (1'-0" o.c.)

Pro-Loc Rakewall

Tube Sealant

Fasteners (by others)

Reglet Flashing

Moisture Barrier (by others)

Double Bead Tape Sealant

Tube Sealant

1

/

8

x

3

/

16

" Pop Rivet (3 per panel)

Pro-Loc Z-Closure
#10-12 x 1" PHW (4 per panel)

Pitch Break

Tube Sealant
Fasteners (by others)
Counter Flashing

Moisture Barrier (by others)

Double Bead Tape Sealant

Double Bead Tape Sealant

NOTE: Z-Closures must be field cut and bent to fit between panel ribs

(See Metal Sales Architectural Installation Manual).
