PPL-12
PRO-LOC I,II
© Metal Sales Manufacturing Corporation/ Subject to change without notice/ Effective Date 9/11
800.406.7387 (Corporate Office) • www.metalsales.us.com
Pro-loC i,ii
CAUTION
In locations where heavy
rainfall or severe ice and
snow may occur, Metal
Sales' standard gutters may
not be suitable for use.

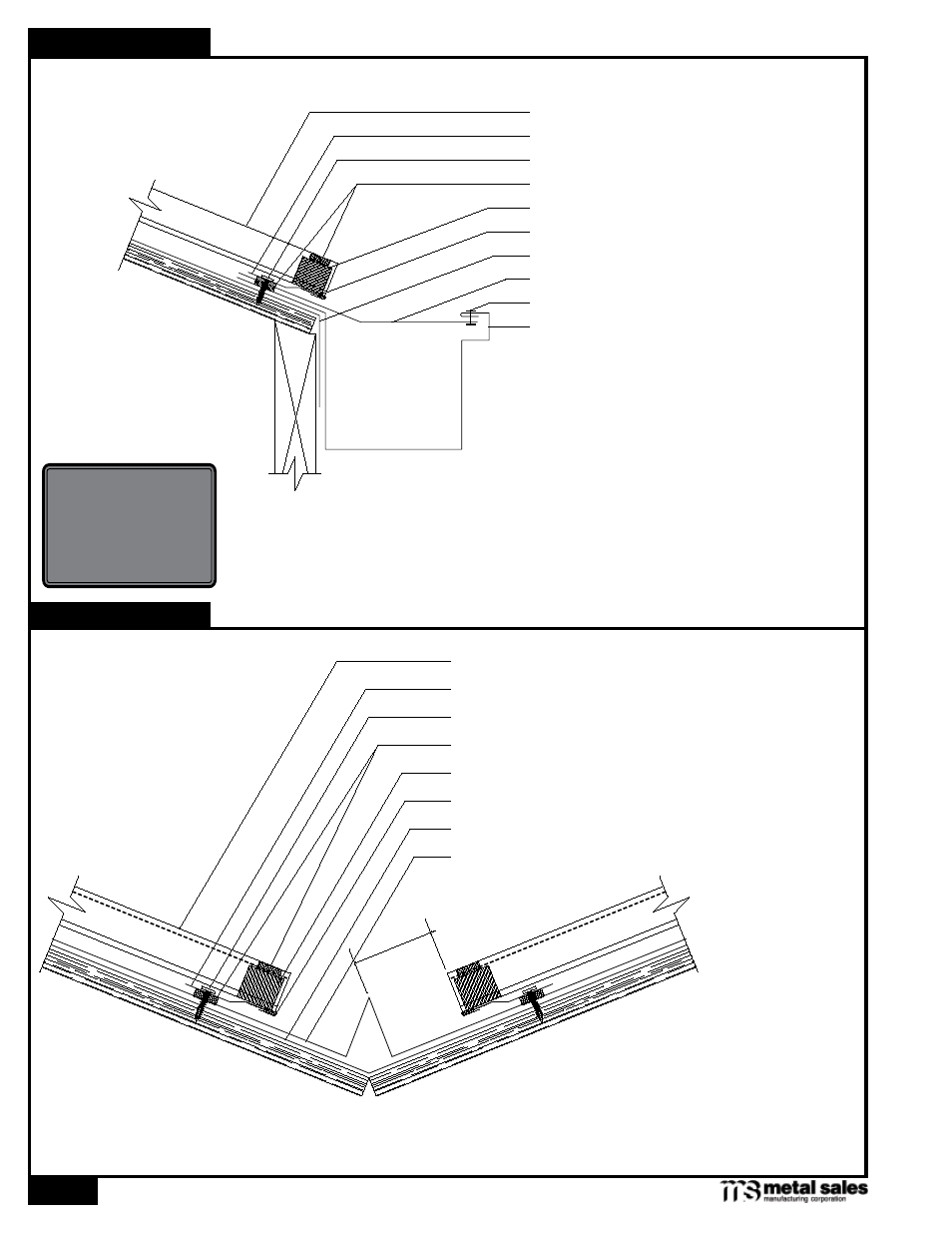

g
UTTer wiTh
o
ffseT
C
leaT
d
eTail
3:12 SLOPE
MINIMUM
v
alley wiTh
o
ffseT
C
leaT
d
eTail
3:12 SLOPE
MINIMUM
 NOTE: Panel rib must be field notched and flat part of
panel must be field bent to accept Offset Cleat.
(See Metal Sales Architectural Installation Manual).
 NOTE: Panel rib must be field notched and flat part of
panel must be field bent to accept Offset Cleat.
(See Metal Sales Architectural Installation Manual).
3" Minimum
Pro-Loc Inside Closure
Pro-Loc Panel
Tube Sealant
Double Bead Tape Sealant
Box Gutter
#10-12 x 1" PHW (1'-0" o.c.)
Moisture Barrier (by others)
Offset Cleat
1 /
8
x 3 /
16
" Pop Rivet (1 per strap)
Universal Gutter/Downspout Strap
Pro-Loc Inside Closure
Pro-Loc Panel
Tube Sealant
Double Bead Tape Sealant
#10-12 x 1" PHW (1'-0" o.c.)
Moisture Barrier (by others)
Offset Cleat
Valley
