PPL-11
PRO-LOC I,II
© Metal Sales Manufacturing Corporation/ Subject to change without notice/ Effective Date 9/11
800.406.7387 (Corporate Office) • www.metalsales.us.com

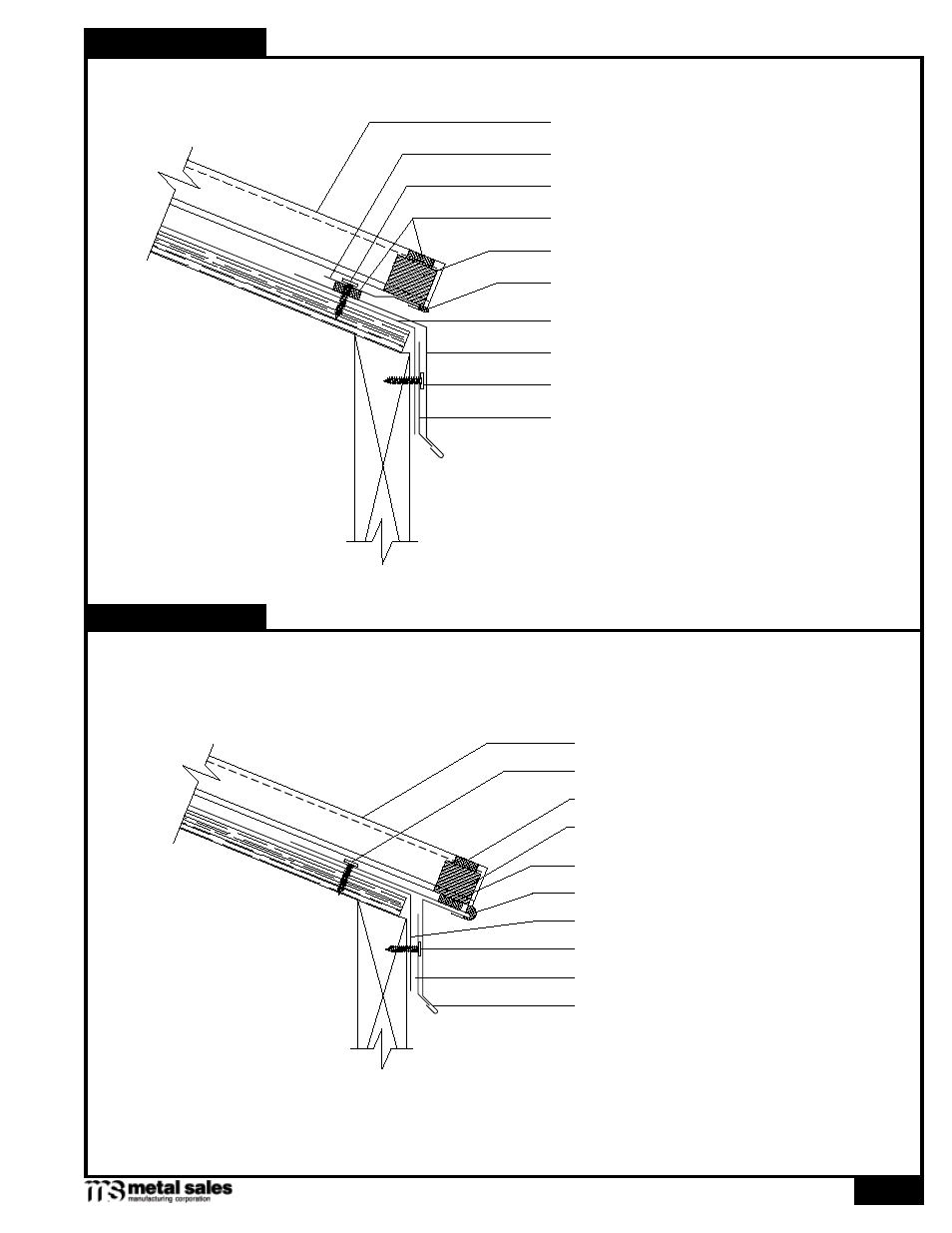

e
ave wiTh
o
ffseT
C
leaT
d
eTail
Pro-Loc Inside Closure
Pro-Loc Panel
Tube Sealant
Double Bead Tape Sealant
Eave
#10-12 x 1" PHW (1'-0" o.c.)
Moisture Barrier (by others)
 NOTE: Panel rib must be field notched and flat part of
panel must be field bent to accept Offset Cleat.
(See Metal Sales Architectural Installation Manual).
Pro-loC i,ii e
xTended
e
ave
d
eTail
Offset Cleat
#10-12 x 1" PHW (1'-0" o.c.)
Cleat
Pro-Loc Inside Closure
Pro-Loc Panel
Tube Sealant
Double Bead Tape Sealant
Extended Eave
#10-12 x 1" PHW (1'-0" o.c.)
Moisture Barrier (by others)
#10-12 x 1" PHW (1'-0" o.c.)
Cleat
Double Bead Tape Sealant
 NOTE: Panel rib must be field notched and flat part of
panel must be field bent to accept Extended Eave.
(See Metal Sales Architectural Installation Manual).
3:12 SLOPE
MINIMUM
3:12 SLOPE
MINIMUM
