Page 11
PIM-11
IMAGE II
© Metal Sales Manufacturing Corporation/ Subject to change without notice/ Effective Date 9/11
800.406.7387 (Corporate Office) • www.metalsales.us.com

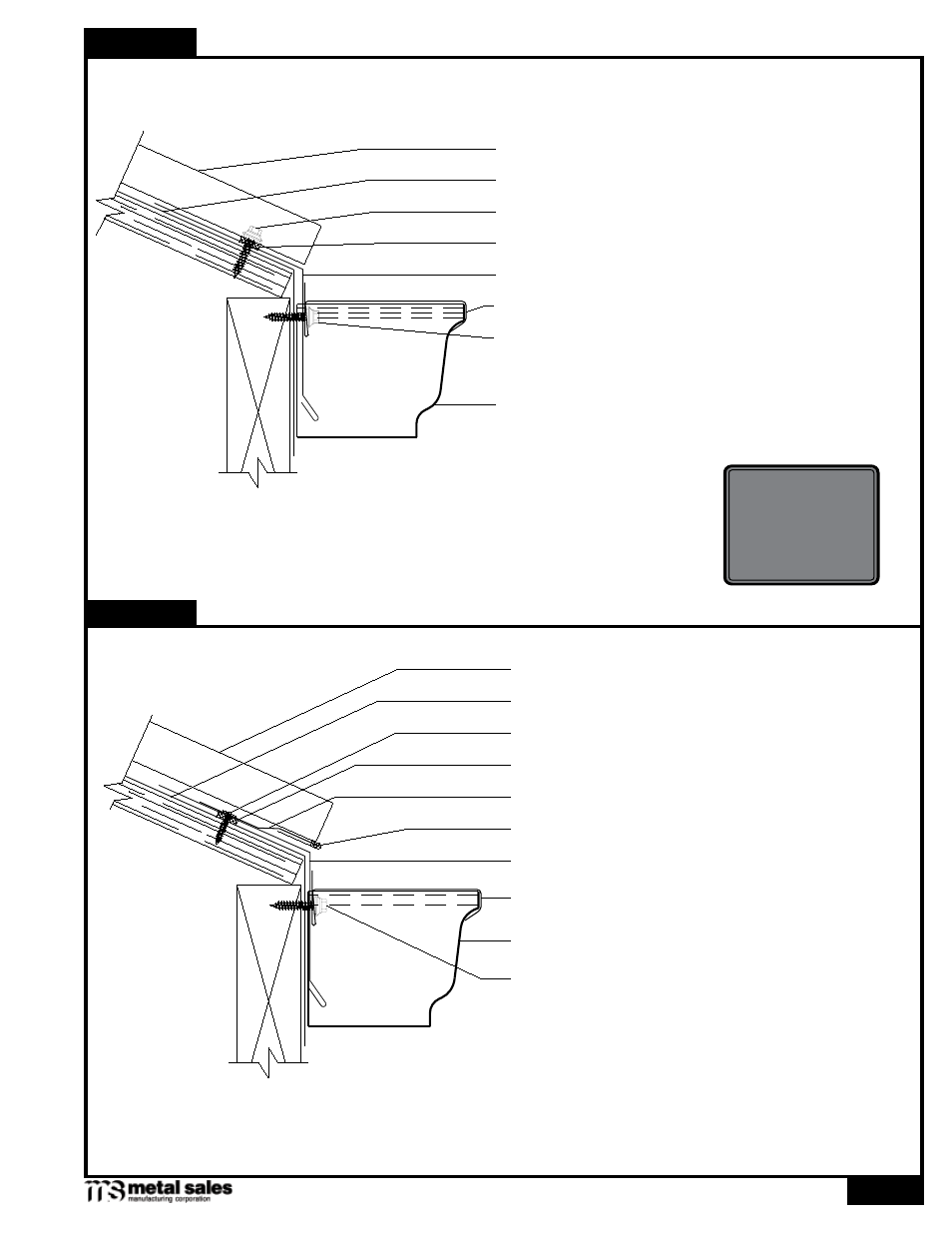

image ii
5K g
UTTer
d
eTail
5K g
UTTer
wiTh
o
ffseT
d
eTail
Double Bead Tape Sealant
Image II Panel
Moisture Barrier (by others)
5K Gutter (by others)
#9-15 x 1" Woodscrew (4 per panel)
Eave
Double Bead Tape Sealant
Image II Panel
Moisture Barrier (by others)
Tube Sealant
5K Gutter (by others)
Offset Cleat
Eave
#8-18 x
3
/
4
" Truss Head Woodscrew (1'-0" o.c.)
Panel rib must be field notched and flat part of panel must be field
bent to accept offset cleat (see Architectural Manual).
3:12 Slope
Minimum
3:12 Slope
Minimum
CAUTION
Additional screws
may be required for
high snow loading
and steep slopes.
#9-15 x 1" Woodscrew (1'-0" o.c.)
Fascia Bracket
#9-15 x 1" Woodscrew (1'-0" o.c.)
Fascia Bracket
