RESIDENTIAL DETAILS

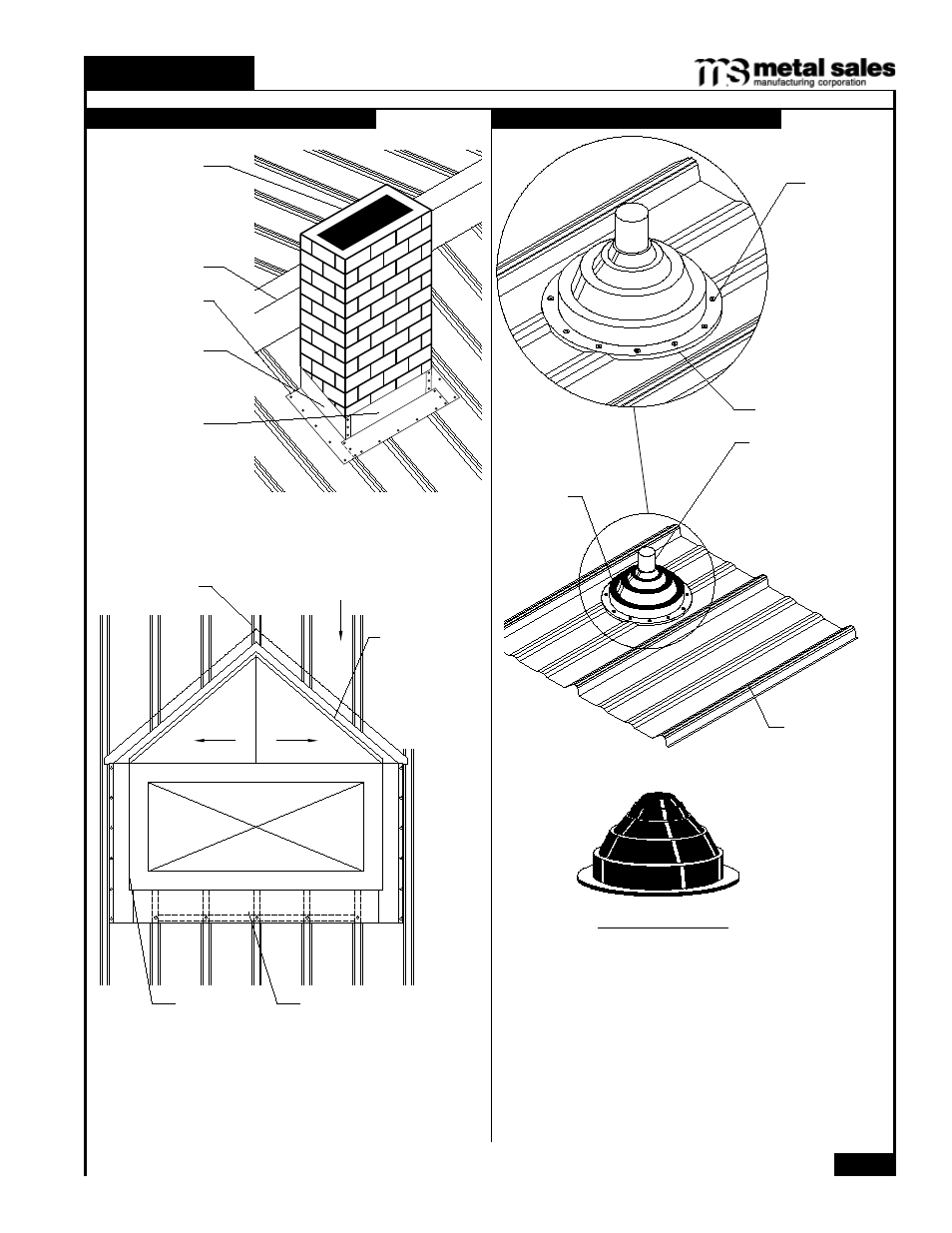

CHIMNEY / CRICKET DETAIL ROOF PENETRATION DETAIL
TAPE SEALANT
FASTENER
RUBBER
ROOF
JACK
VENT PIPE
ROOF PANEL
MINI ( 1 /
4
" TO 1 1 /
8
" O.D. PIPE)
#2 (1 3 /
4
" TO 3" O.D. PIPE)
#4 (3" TO 6" O.D. PIPE)
#6 (6" TO 9" O.D. PIPE)
#8 (7" TO 13" O.D. PIPE)
AVAILABLE SIZES
CHIMNEY
RIDGE / HIP
COVER
ROOF PANEL
SIDEWALL
(FIELD CUT
AND BEND)
ENDWALL
(FIELD CUT
AND BEND)
ROOF PANEL
SLOPE
FIELD
FABRICATE
FLAT SHEET
TO FIT
PLYWOOD
CRICKET
UNIVERSAL
SIDEWALL
UNIVERSAL
ENDWALL
