Operation and control

5.5.1 Electronic temperature monitoring (TWW)

The manually set monitoring temperature

min

and

max

of the electronic overtemperature

max

max

control is monitored by an adjustable over/undertemperature controller (TWW) protection

class 3.1 acc. to DIN 12 880 (or over/undertemperature controller (TWW) protection class 3.1

for UIS appliances). If the manually set monitoring temperature

max

is exceeded, the TWW

max

max

takes over temperature control and begins to regulate the monitoring temperature (Abb. 18).

t

°C

Setting MAX

Set temperature

Controller error

Emergency operation

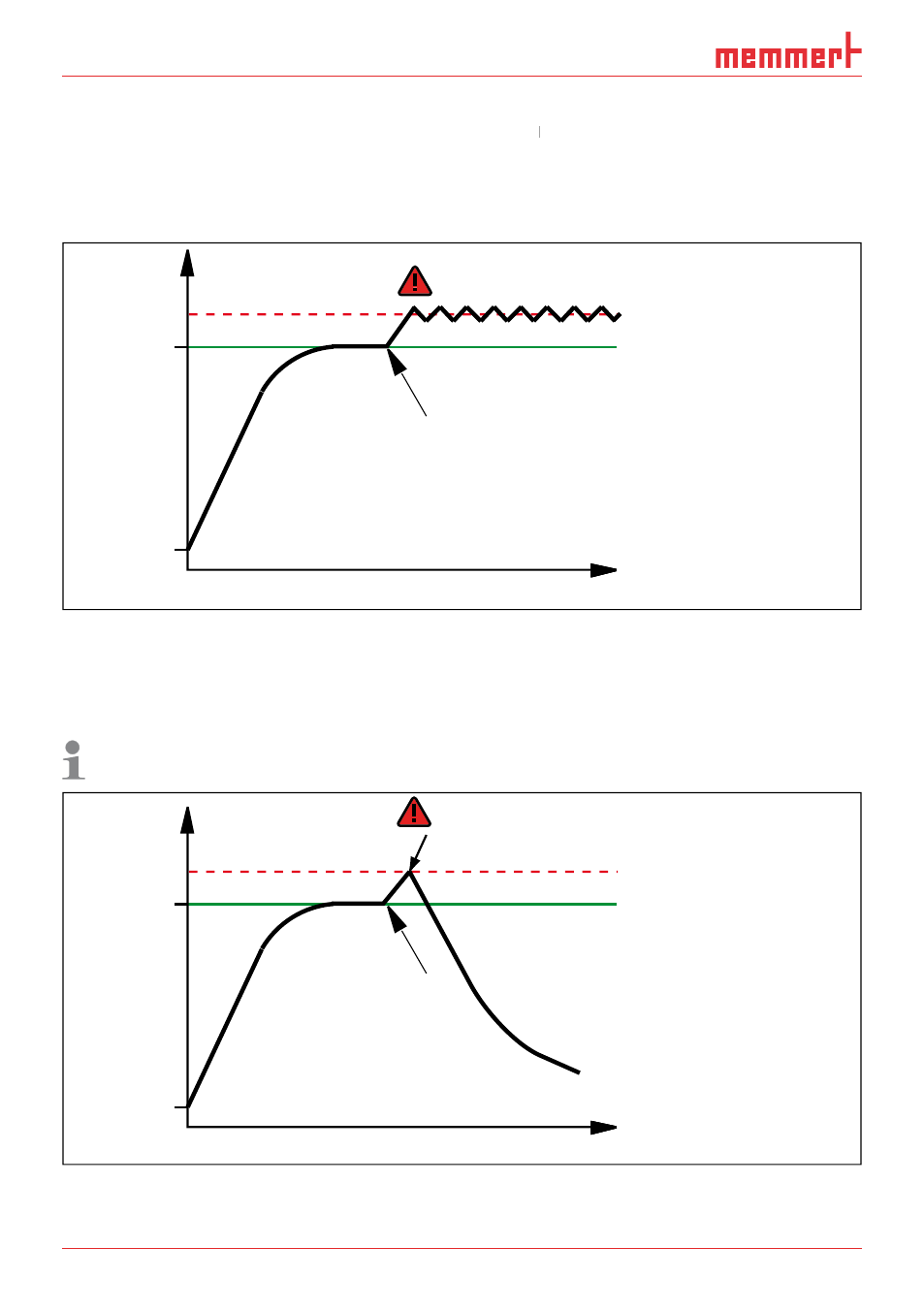

Abb. 18 Schematic diagram of how the TWW temperature monitoring works

5.5.2 Electronic temperature limiter (TWB) protection class 2 acc. to DIN 12 880

If the manually set monitoring temperature

max

is exceeded, the TWB switches off heating

permanently (Abb. 19 ) and can be reset by pressing the confirmation key.

In programme mode, the current programme is resumed for TWB alarms of up to 15

minutes. If the alarm is active for more than 15 minutes, the programme is cancelled.

t

°C

heating switched off by TWB

Setting Max
Set temperature

Controller error

Abb. 19 Schematic diagram of how the TWB temperature monitoring works
