5.5 Temperature monitoring

The appliance is equipped with a multiple overtemperature protection (mechanical/electronic)

in accordance with DIN 12 880. This serves to avoid damage to the chamber load and/or ap-

pliance in case of a malfunction:

electronic temperature monitoring (TWW)

automatic temperature monitor (ASF)

mechanical temperature limiter (TB)

The monitoring temperature of the electronic temperature

monitoring is measured via a separate Pt100 temperature

sensor in the working chamber. Temperature monitoring

settings are made via the

ALARM

display. The settings made

apply to all operating modes.
If temperature monitoring has been

triggered, this is indicated by the

temperature display: the actual tempera-

ture is highlighted in red and a warning

symbol

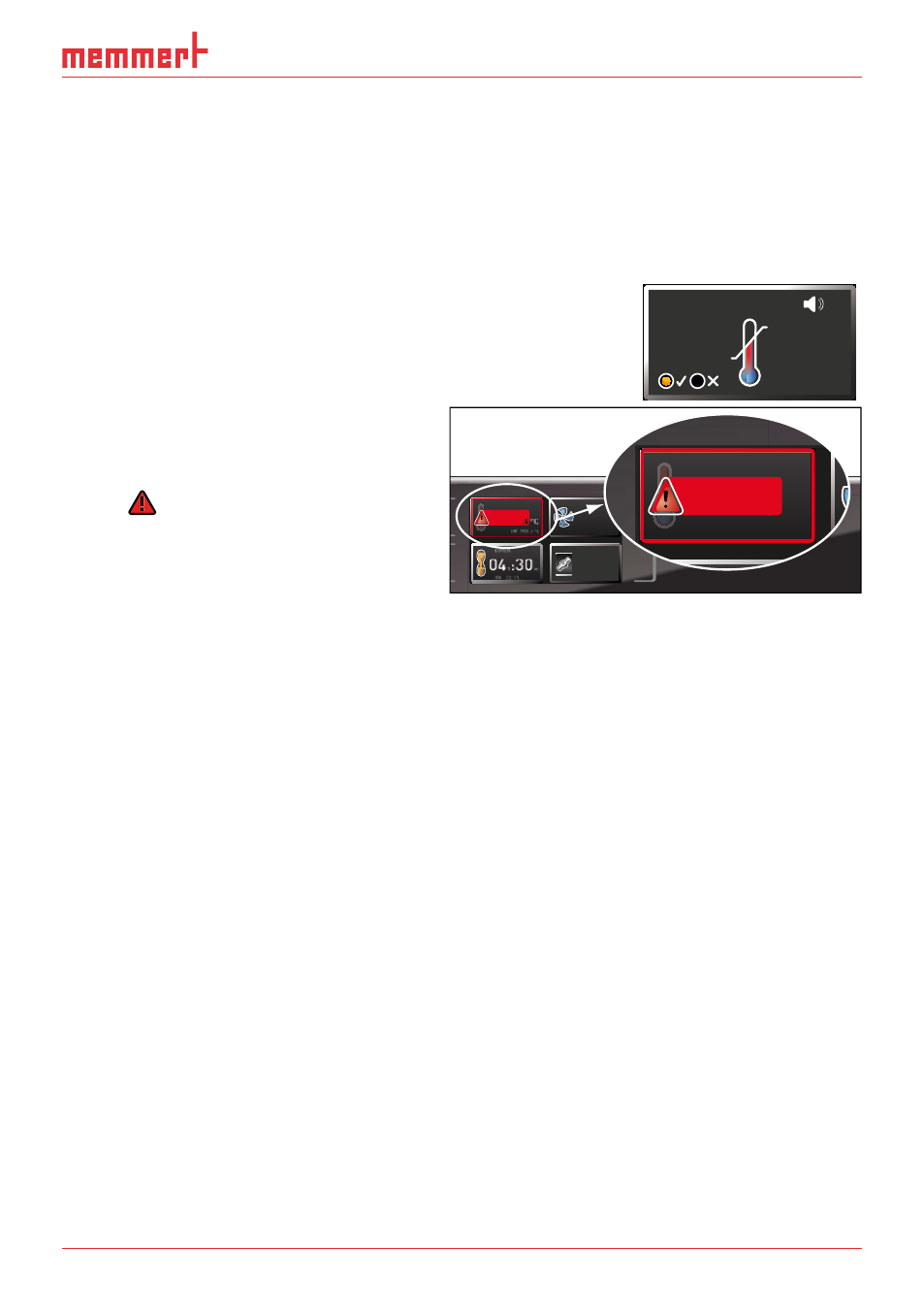

is shown ( Abb. 17). The type

is shown ( Abb. 17). The type

of temperature monitoring triggered

(TWW in this example) is shown beneath

the temperature. If the acoustic alarm

has been activated in the menu mode

(

Sound

, see page 51, indicated by the

speaker symbol in the alarm display), the

alarm is additionally signalled by an

intermittent acoustic signal, which can be turned off by pressing the confirmation key.

Information on what to do in this case are provided in the chapter Malfunctions, warning and

error messages from page 36.
Before reading how to adjust temperature monitoring (from page 33), please read the

description of the individual monitoring functions here.
